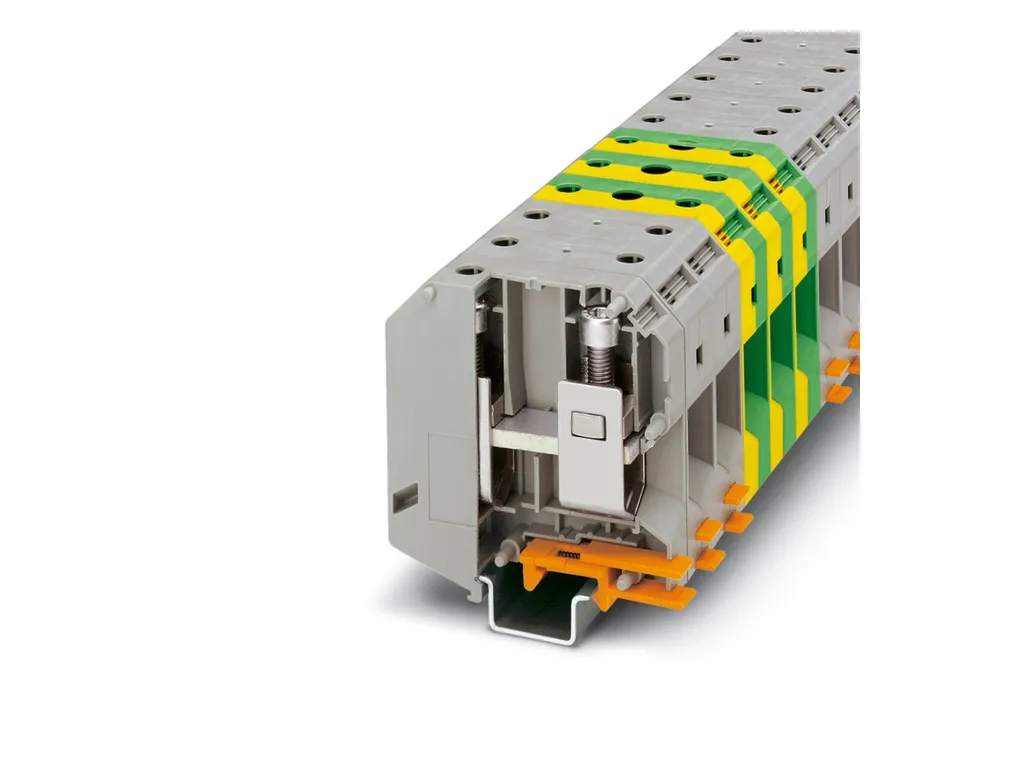

| Product properties | Product type: Ground terminal block Number of positions: 1 Number of connections: 2 Number of rows: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 7.54 W |
| Connection data | Grounding foot: Yes Number of connections per level: 2 Nominal cross section: 95 mm² Level 1 above 1 below 1 Screw thread: M8 Note: Please observe the current carrying capacity of the DIN rails. Tightening torque: 15 ... 20 Nm Stripping length: 30 mm Connection in acc. with standard: IEC 60947-7-2 Conductor cross section rigid: 25 mm² ... 95 mm² Cross section AWG: 2 ... 3/0 (converted acc. to IEC) Conductor cross section flexible: 35 mm² ... 95 mm² Conductor cross section, flexible [AWG]: 1/0 ... 3/0 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 35 mm² ... 95 mm² Flexible conductor cross section (ferrule with plastic sleeve): 35 mm² ... 95 mm² Nominal cross section: 95 mm² |
| Ex data | Rated data (ATEX/IECEx) Identification: ïII2GDEx eb IIC Gb Operating temperature range: -60°C ... 110°C Ex-certified accessories: 1201934 VDE-ISS 6 1201659 E/AL-NS 32 1201662 E/AL-NS 35 Torque range for PE foot: 15 Nm ... 20 Nm output: (Permanent) Ex connection data General Torque range: 15 Nm ... 20 Nm Nominal cross section: 95 mm² Rated cross section AWG: 3/0 Connection capacity rigid: 25 mm² ... 95 mm² Connection capacity AWG: 4 ... 3/0 2 ... 3/0 Connection capacity flexible: 35 mm² ... 95 mm² |
| Dimensions | Width: 25 mm Height: 83 mm Depth on NS32: 95 mm Depth on NS35/7,5: 90 mm Depth on NS35/15: 97.5 mm |
| Material specifications | Color: green-yellow Flammability rating according to UL 94: V2 Insulating material group: I Insulating material: PA Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125°C Relative insulation material temperature index (Elec., UL 746 B): 125°C |
| Mechanical properties | General Terminal block mounting: 15 Nm ... 20 Nm (PE foot with mounting screw, M8) Mechanical data Open side panel: No |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24h, -60°C to +70°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 % |
| Standards and regulations | Connection in acc. with standard: IEC 60947-7-2 |
| Mounting | Mounting type: NS 35/7,5 NS35/15 NS32 Terminal block mounting: 15 Nm ... 20 Nm (PE foot with mounting screw, M8) |
| ECLASS | ECLASS-11.0: 27141141 ECLASS-13.0: 27250103 |
| ETIM | ETIM 9.0: EC000901 |
| UNSPSC | UNSPSC 21.0: 39121400 |
