WMS-2 HF 3,2 (60X5)RL YE - Shrink sleeve

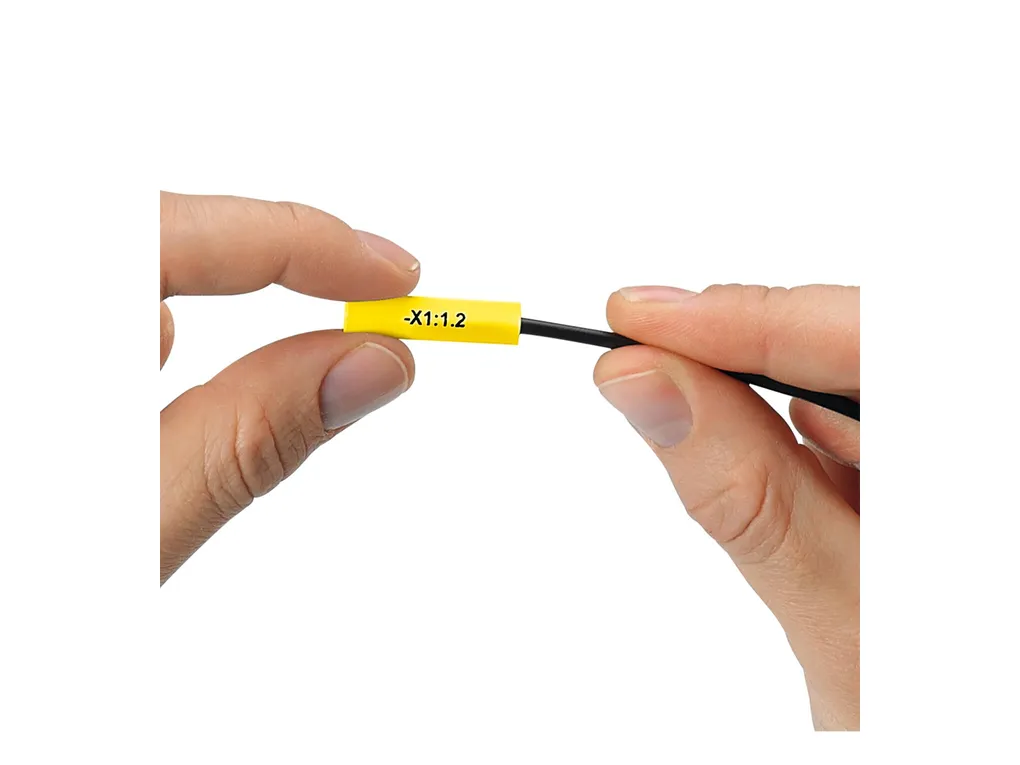

Shrink sleeve, Roll, yellow, unlabeled, can be labeled with: THERMOMARKE.300 (D)/600 (D), THERMOMARK ROLLMASTER 300/600, THERMOMARK ROLL X1, THERMOMARK ROLL, THERMOMARK ROLL 2.0, THERMOMARK W, THERMOMARK X1.2, unperforated, mounting type: slide-on, cable diameter range: 1.5 ... 3.2 mm, lettering field size: 60x5mm, Number of individual labels: 1000

Product Code: 0801013

Partner cod.: 0801013

PHOENIX CONTACT

Notes	General: The specified minimum wire diameter of the shrink sleeve refers to its use as a marking material and does not guarantee any insulation characteristics once shrunk. Depending on the processed material batch, as well as the storage and processing conditions, the maximum insertable wire diameter may be reduced.
Product properties	Product type: Shrink sleeve Type: Shrink sleeve Product property: halogen-free Area of application: Railway industry Marking Number of individual labels: 1000 Number of individual labels per row: 1 Identification technology: Thermal transfer for rolls
Dimensions	Width: 5 mm Length: 60 mm External dimensions Outside diameter: 1.5 mm ... 3.2 mm
Material specifications	RoHS compliant: yes Color: yellow Material: Polyolefine Base element material: polyolefine Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Components: halogen-free
Cable/line	External cable diameter: 1.5 mm ... 3.2 mm
Environmental and real-life conditions	Test for substances that would hinder coating with paint or varnish Result: Test passed UV resistance Specification: ISO4892-2:2013-03 (following) Result: Test passed Test duration: 96 h Wipe resistance of inscriptions Specification: DINEN61010-1 (VDE0411-1):2011-07 DINEN62208 (VDE0660-511):2012-06 (in parts) Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DIN50018:2013-05 Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Salt spray test Specification: DINEN60068-2-11:2000-02 Result: Test passed Ambient conditions Ambient temperature (operation): -30°C ... 105°C Recommended storage conditions: 23°C/50% relative humidity. Storage in a dry and dark place in the original packaging is recommended. Recommended ambient temperature (storage/transport): 23°C Recommended humidity (storage/transport): 50 % Shelf life: 3years
Standards and regulations	Wipe resistance: DINEN61010-1 (VDE0411-1)
Mounting	Mounting type: slide-on
