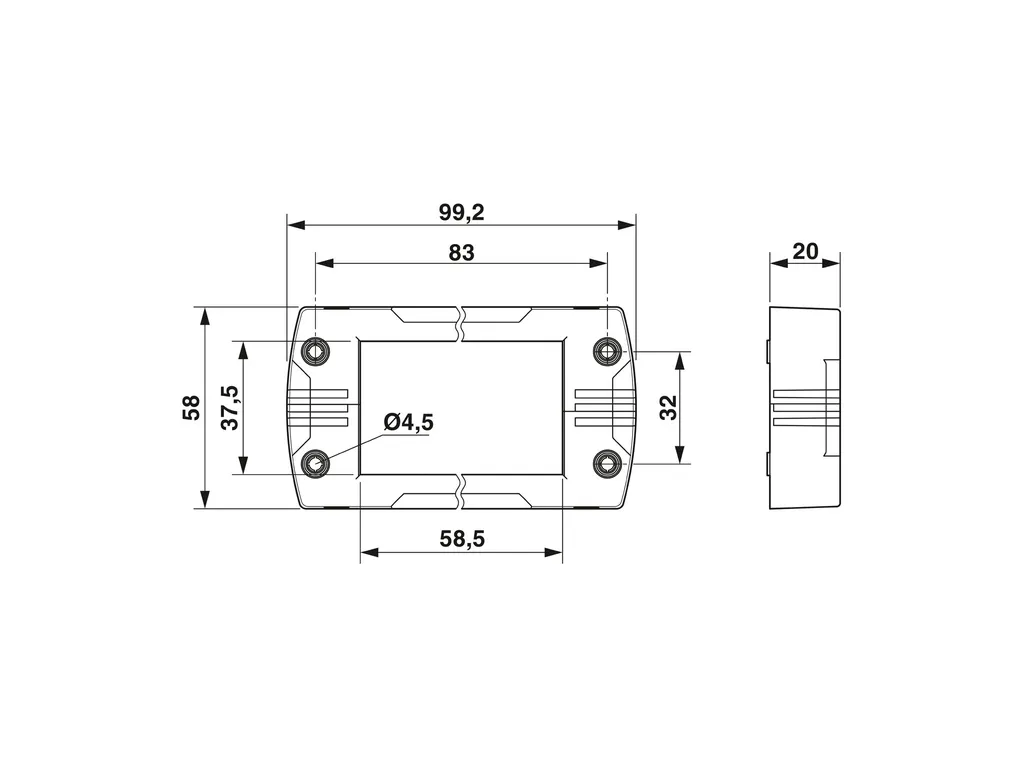

| Notes | General: Mounting screws not supplied as standard. The maximum width of the panel cutout must not exceed 51mm (instead of 35mm for heavy-duty industrial connectors). |
| Product properties | Type: B10 Product type: Frame for cable sleeves Frame type: Sealing frame |
| Connection data | Tightening torque: 2 Nm ... 4 Nm (Locking screw) 1.8 Nm (Mounting screw, M4 (ISO 4762/DIN 912)) |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b73fff7745b5794cb09ede46d51a01b0/-S204x204-FJPG Width: 58 mm Height: 20 mm Length: 99.2 mm Drill hole distance, horizontal: 32 mm Drill hole distance, vertical: 83 mm Hole diameter: 5.5 mm Installation dimensions Width of the assembly cutout: 35 mm Length of the assembly cutout: 65 mm |
| Material specifications | Material: PA Flammability rating according to UL 94: V0 |
| Characteristics | Number of cable seals: 2 ... 6 (small seals, depending on the number of large seals installed) 0 ... 1 (large seals, depending on the number of small seals installed) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP54 IP65 Ambient temperature (operation): -40°C ... 120°C (static) |
| Mounting | Assembly instructions: M4 locking screw with 3mm Allen screw head, 3 ... 4Nm torque, 1 large sleeve requires the space of 4 small sleeves, mounting screw: M4 (ISO 4762/DIN 912), 1.8Nm torque The flat gasket supplied should be inserted between the wall and the sealing frame in the case of wall mounting. IP54: for vertical sealing frame mounting/for horizontal sealing frame mounting (downward cable outlet direction). IP65: when using the CES-SRC-BK / CES-LRC-BK cone sleeve, for vertical mounting/horizontal mounting (downward cable outlet direction) of the sealing frame directly on the housing panel, and use of a 3.6mm wide cable binder (e.g., item 3240744). |
| ECLASS | ECLASS-11.0: 27142421 ECLASS-12.0: 27142421 ECLASS-13.0: 27142421 |
| ETIM | ETIM 9.0: EC000211 |
| UNSPSC | UNSPSC 21.0: 31261500 |
