0801662 PHOENIX CONTACT - Technology Bsa

CES-B16-HFFS-PLBK - Sealing frame

Sealing frame, With locking latch, design: B16, Number of cable seals (small): 8, material: PA (halogen-free), color: black, length: 120 mm, width: 58 mm, height: 20 mm

Product Code: 0801662 Copia - Copy

Partner cod.: 0801662 Copia - Copy

PHOENIX CONTACT

Notes	General: Mounting screws not supplied as standard. The maximum width of the panel cutout must not exceed 51Ãmm (instead of 35Ãmm for heavy-duty industrial connectors).
Product properties	Type: B16 Product type: Frame for cable sleeves Frame type: Sealing frame
Connection data	Tightening torque: 1.8 Nm (Mounting screw, M4 (ISO 4762/DIN 912))

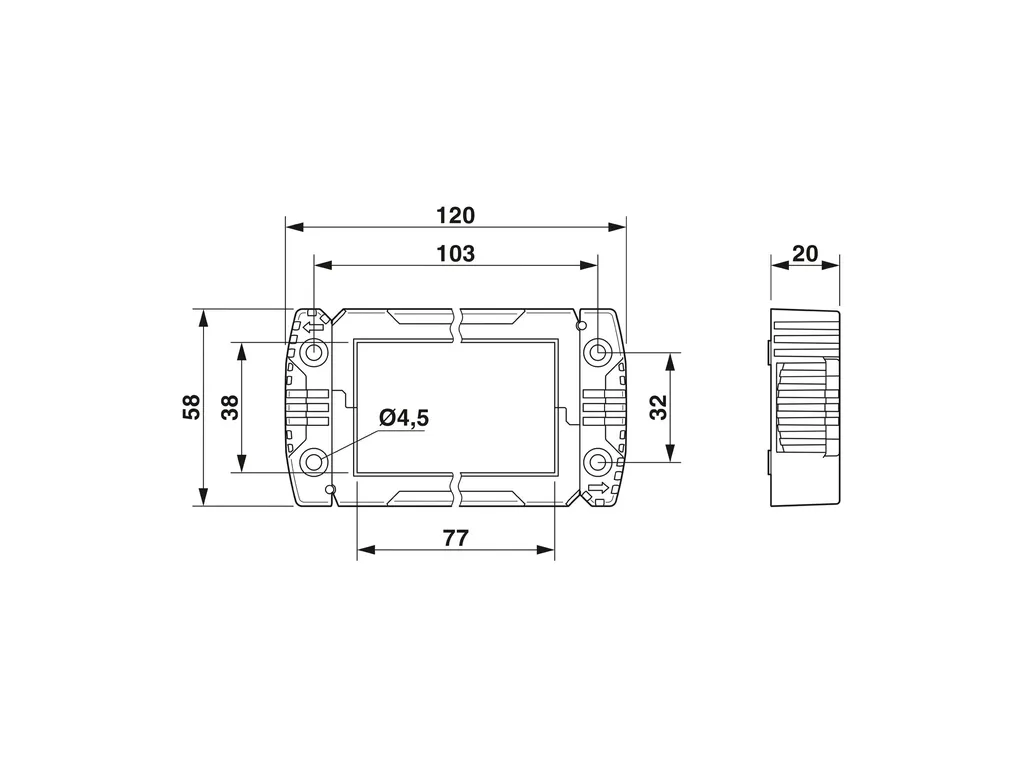

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4817ed6d7762294a86571495b5192924/-S204x204-FJPG Width: 58 mm Height: 20 mm Length: 120 mm Drill hole distance, horizontal: 32 mm Drill hole distance, vertical: 103 mm Hole diameter: 5.5 mm Installation dimensions Width of the assembly cutout: 35 mm Length of the assembly cutout: 86 mm
Material specifications	Material: PA Flammability rating according to UL 94: V0
Characteristics	Number of cable seals: 0 ... 8 (small seals, depending on the number of large seals installed) 0 ... 2 (large seals, depending on the number of small seals installed)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP54 Ambient temperature (operation): -40°C ... 120°C (static)
Mounting	Assembly instructions: One large sleeve requires the space of 4 small sleeves, M4 mounting screws (ISO 4762/DIN 912), torque for mounting screw: 1.8ÃNm A video tutorial on how to assemble the product can be found in the Downloads area, in the Video category.
