Product properties | Product type: Cable sleeve No. of conductors: 0 |

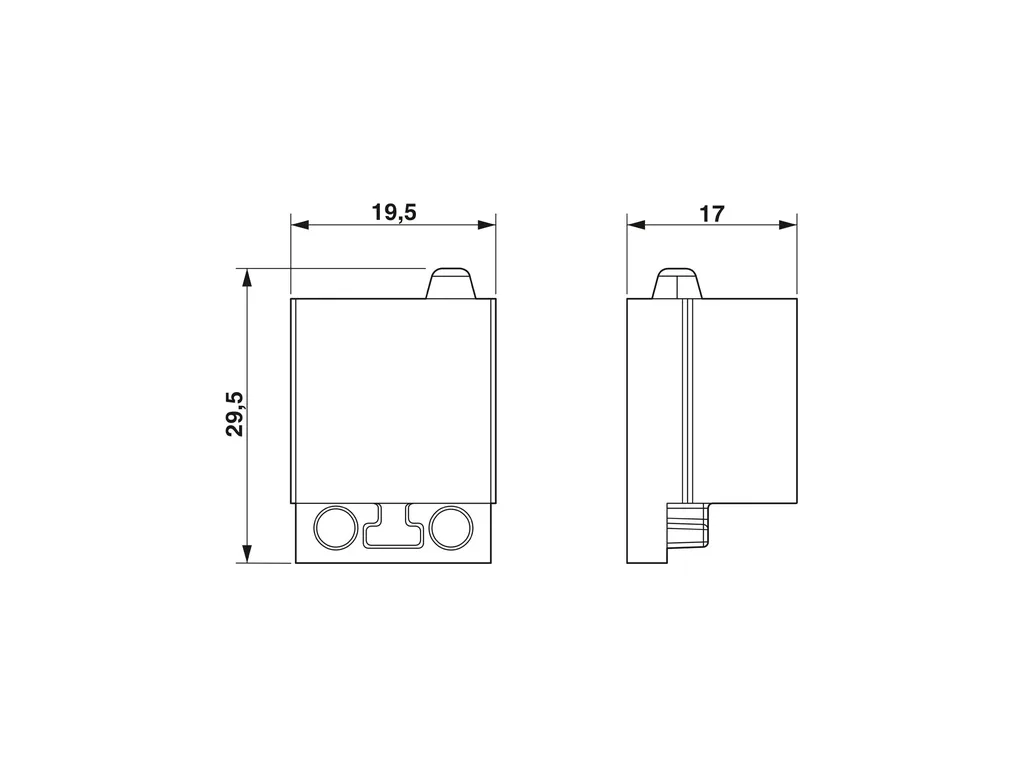

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/144249ca6e07cb42826ccf7423e30bf2/-S204x204-FJPG Width: 19.5 mm Height: 17 mm Length: 29.5 mm |
Material specifications | Material: NBR |
Characteristics | Conductor sealing range: Blind sleeve Seal size: small Design, Format: Blind sleeve Design, Cable seal: closed |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP54 IP65 Ambient temperature (operation): -40°C ... 125°C (static) |
Mounting | Assembly instructions: IP54: for vertical sealing frame mounting/for horizontal sealing frame mounting (downward cable outlet direction). |
ECLASS | ECLASS-11.0: 27144425 ECLASS-12.0: 27144425 ECLASS-13.0: 27144425 |
ETIM | ETIM 9.0: EC000451 |
UNSPSC | UNSPSC 21.0: 39121400 |
