PHOENIX CONTACT 0801676
PHOENIX CONTACTNot available

CES-STPG-GY-6 - Cable sleeve

Cable sleeve, small, no. of conductors: 1, type: Round cable, slotted, external cable diameter: 1x 5 mm ... 6 mm, material: SEBS (halogen-free), color: gray, length: 29.5 mm, width: 19.5 mm, height: 17 mm
Product Code: 0801676
Partner cod.: 0801676
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
Product propertiesProduct type: Cable sleeve
No. of conductors: 1

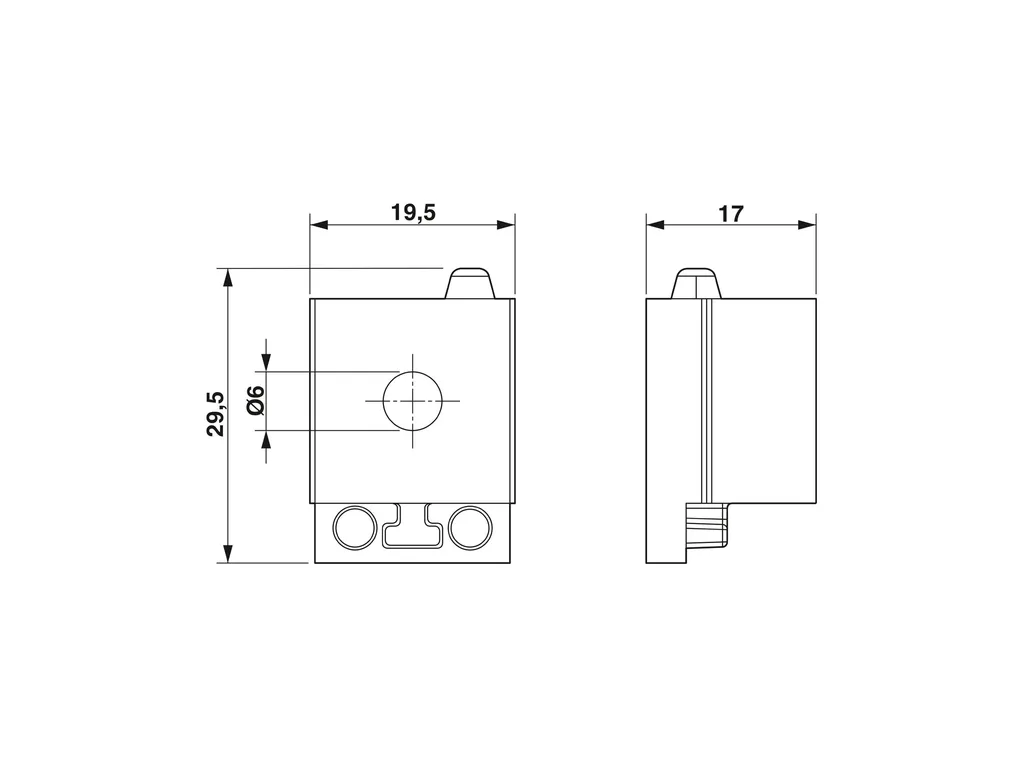

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3497b7100911b649870d51acdb187a8a/-S204x204-FJPG
Width: 19.5 mm
Height: 17 mm
Length: 29.5 mm
Material specificationsMaterial: SEBS
Flammability rating according to UL 94: V0
Cable/lineExternal cable diameter (): 1x 5 mm ... 6 mm
CharacteristicsSeal size: small
Design, Format: Round cable
Design, Cable seal: slotted
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP54
Ambient temperature (operation): -40°C ... 80°C (static)
Technical Specs
ECLASSECLASS-11.0: 27144425
ECLASS-12.0: 27144425
ECLASS-13.0: 27144425
ETIMETIM 9.0: EC000451
UNSPSCUNSPSC 21.0: 39121400
Description
Cable sleeve, no. of conductors: 1, length: 29.5 mm, width: 19.5 mm, height: 17 mm, external cable diameter: 1x 5 mm ... 6 mm , color: gray
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Approvals_00691.pdf

Technical_drawing_00972.pdf
