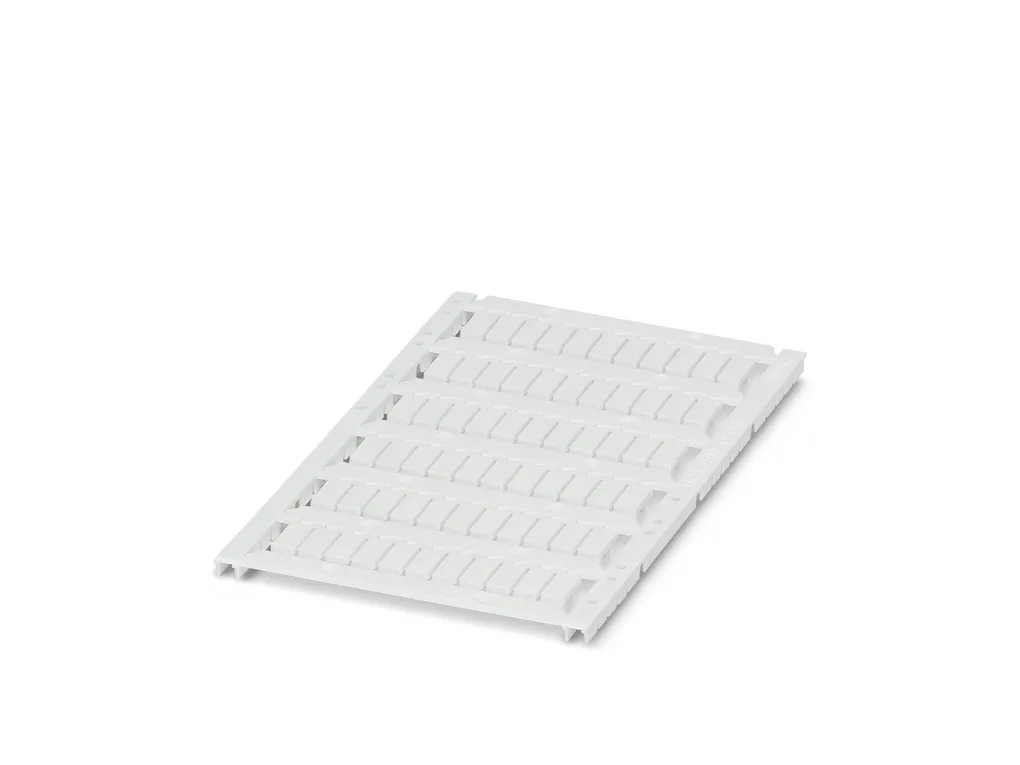

UC-WMC 4,4 (23X 5,5) OG CUS - Conductor marker

Conductor marker, can be ordered: by sheet, orange, labeled according to customer specifications, mounting type: clip on, cable diameter range: 2.8 ... 4.4 mm, lettering field size: 23x5.5mm, Number of individual labels: 9

Product Code: 0824743

Partner cod.: 0824743

PHOENIX CONTACT

Product properties	Product type: Labeled conductor marker Type: Card form Marking Number of individual labels: 9 Number of individual labels per row: 3 Identification technology: UV LED technology
Mounting	Mounting type: clip on
Material specifications	RoHS compliant: yes Color: orange Material: PA Flammability rating according to UL 94: V2 Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 120°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 2 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 2 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 2 Components: free from silicone and halogen
Environmental and real-life conditions	Test for substances that would hinder coating with paint or varnish Result: Test passed UV resistance Specification: ISOÃ4892-2:2013-03 (following) Result: Test passed Test duration: 96 h Ambient conditions Ambient temperature (operation): -40°C ... 120°C Recommended storage conditions: 23Ã°C/50Ã% relative humidity. Storage in a dry and dark place in the original packaging is recommended. Recommended ambient temperature (storage/transport): 23°C Recommended humidity (storage/transport): 50 %
Dimensions	Width: 5.5 mm Length: 23 mm External dimensions Outside diameter: 2.8 mm ... 4.4 mm
Standards and regulations	Wipe resistance: DINÃENÃ61010-1 (VDEÃ0411-1)
