| Product properties | Type: DIN rail module, one-piece Product type: Thermomagnetic device circuit breakers Product family: TMC Number of positions: 1 Number of connections: 4 Number of rows: 2 No. of channels: 1 Insulation characteristics Overvoltage category: II Degree of pollution: 2 |
| Electrical properties | No. of channels: 1 Fuse type: Automatic device General Rated voltage: 65 VDC Rated current IN: 16 A Rated surge voltage: 2.5 kV Insulation resistance Riso: > 100 Mé (500 V DC) Auxiliary circuit: 240 VAC/1 A(Low-induction) 65 VAC/1 A(Low-induction) Tripping method: TM (thermomagnetic) Device resistance: 0.02 é Rated short-circuit switching capacity Icn: 2500 A (32VDC) Short-circuit switching capacity: 2000 A (UL 1077: 65 V DC) Dielectric strength: 3000 VAC (Actuation area) 3000 VAC (Main to auxiliary circuit) Switching cycles, max.: 10000 (At 1 x In, inductive) Fuse: F1 (fast blow) Indicator/remote signaling Connection name: Auxiliary contact Operating voltage: 250 VAC 65 VDC Operating current: 16 A AC (Low-induction) |
| Connection data | Main contact Screw thread: M3 Tightening torque: 0.6 ... 0.8 Nm Stripping length: 12 mm Internal cylindrical gage: A3 Conductor cross section rigid: 0.2 mm² ... 6 mm² Cross section AWG: 24 ... 10 (converted acc. to IEC) Conductor cross section flexible: 0.2 mm² ... 4 mm² Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 4 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.25 mm² ... 2.5 mm² 2 conductors with same cross section, solid: 0.2 mm² ... 0.75 mm² 2 conductors with same cross section, flexible: 0.2 mm² ... 0.75 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 2.5 mm² Nominal current: 16 A Auxiliary contact Screw thread: M3 Tightening torque: 0.6 ... 0.8 Nm Stripping length: 12 mm Internal cylindrical gage: A1 Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Cross section AWG: 24 ... 14 (converted acc. to IEC) Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 2.5 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.25 mm² ... 1.5 mm² 2 conductors with same cross section, solid: 0.2 m² ... 0.75 m² 2 conductors with same cross section, flexible: 0.2 m² ... 0.75 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.25 mm² ... 0.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 0.75 mm² Main contactâ Connection method: Screw connection Screw thread: M3 Tightening torque: 0.6 Nm ... 0.8 Nm Stripping length: 12 mm Conductor cross section flexible: 0.2 mm² ... 4 mm² Conductor cross section rigid: 0.2 mm² ... 6 mm² Conductor cross section AWG: 24 ... 10 Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 2.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 4 mm² Auxiliary contactâ Connection method: Screw connection Screw thread: M3 Tightening torque: 0.6 Nm ... 0.8 Nm Stripping length: 12 mm Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 14 Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 1.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm² |

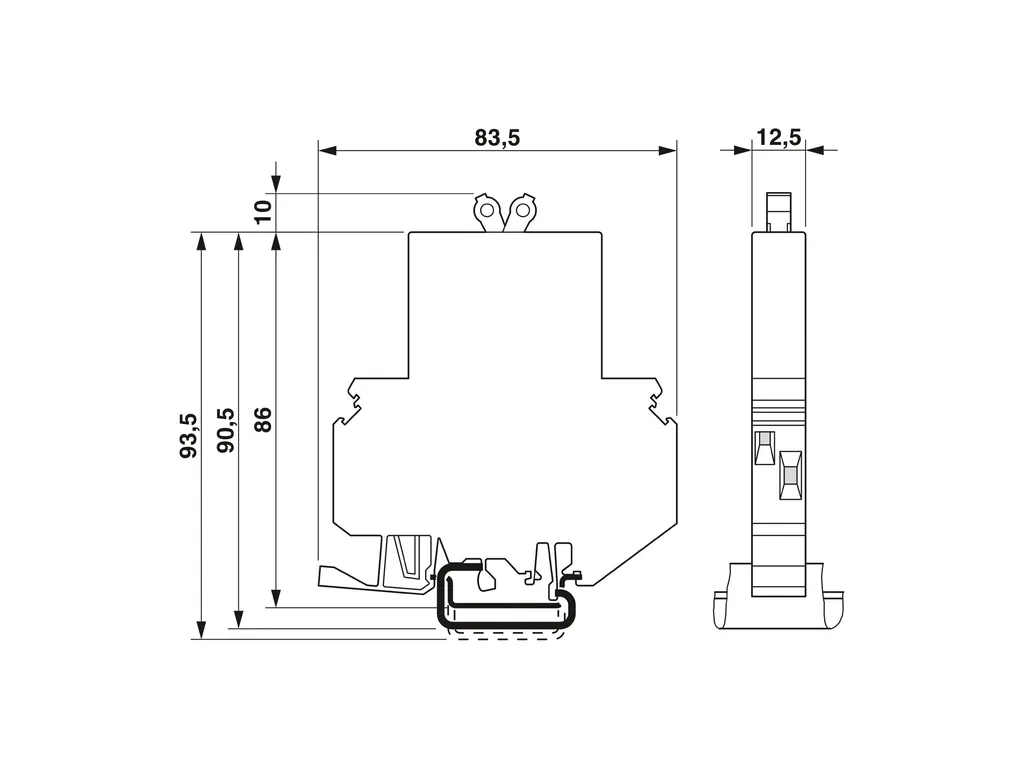

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b3c8d0ae5a91e74fbf8973a31f3e2610/-S204x204-FJPG Width: 12.5 mm Height: 82.5 mm Depth: 96 mm |
| Material specifications | Flammability rating according to UL 94: V-2 Insulating material group: II Insulating material: PA66 |
| Mechanical properties | Mechanical data Open side panel: No |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP30 (Actuation area) IP20 (Connection area) Ambient temperature (operation): -30°C ... 60°C Humidity test: 240 h, 95 % RH, 40°C |
| Standards and regulations | Standards/specifications: EN60934 UL1077 |
| Mounting | Mounting type: DIN rail: 35 mm |
| ECLASS | ECLASS-11.0: 27141116 ECLASS-12.0: 27141116 ECLASS-13.0: 27140401 |
| ETIM | ETIM 9.0: EC000899 |
| UNSPSC | UNSPSC 21.0: 39121400 |
