1000041 PHOENIX CONTACT - Technology Bsa

V-RC/TGUM 11/KVD 11/LBL 12 - Cable connector

Cable connector, number of positions: 12, status display: No; master cable connection: M23 screw locking, shielding: no, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1237970

Product Code: 1000041

Partner cod.: 1000041

PHOENIX CONTACT

Notes	General: The connector is designed for use on sensor/actuator boxes with an M23 plug-in connection.
Mounting	Connection method: Solder connection
Product properties	Product type: Circular connector (cable-side) Number of positions: 12

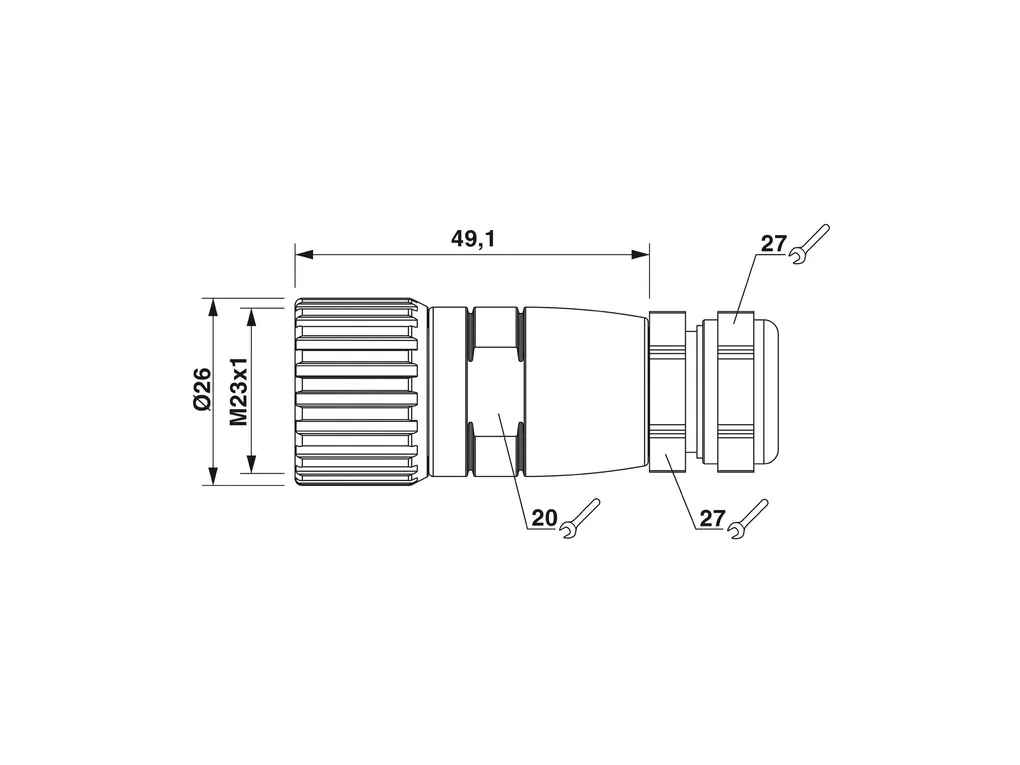

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b26f3af41df3bc47b2d2964e1a3b9309/-S204x204-FJPG Width: 26 mm Height: 26 mm Length: 69 mm
Material specifications	Material: GD-Zn Flammability rating according to UL 94: V0 Contact material: CuZn Contact surface material: gold-plated Contact carrier material: PBT
Connection data	Conductor connection Connection method: Solder connection Pin assignment Slot/position = Wire color or connection: 1 / 4 (A)=1=WH 2 / 4 (A)=2=GN 3 / 4 (A)=3=YE 4 / 4 (A)=4=GY 5 / 4 (A)=5=PK 6 / 4 (A)=6=RD 7 / 4 (A)=7=BK 8 / 4 (A)=8=VT 1-8 / 1 (+ 120 V)=11=BN 1-8 / 3 (0 V)=9+10=BU 1-8 / 5 (PE)=12=GNYE
Electrical properties	Nominal voltage U_N: 150 V Rated current, total: 8 A (with 1 mm² conductor cross section)
Connector	Connection 2 Head design: Socket Head cable outlet: straight Head thread type: M23
Cable/line	Connection method: M23 screw locking External cable diameter: 8 mm ... 12 mm
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -20°C ... 80°C
