1000042 PHOENIX CONTACT - Technology Bsa

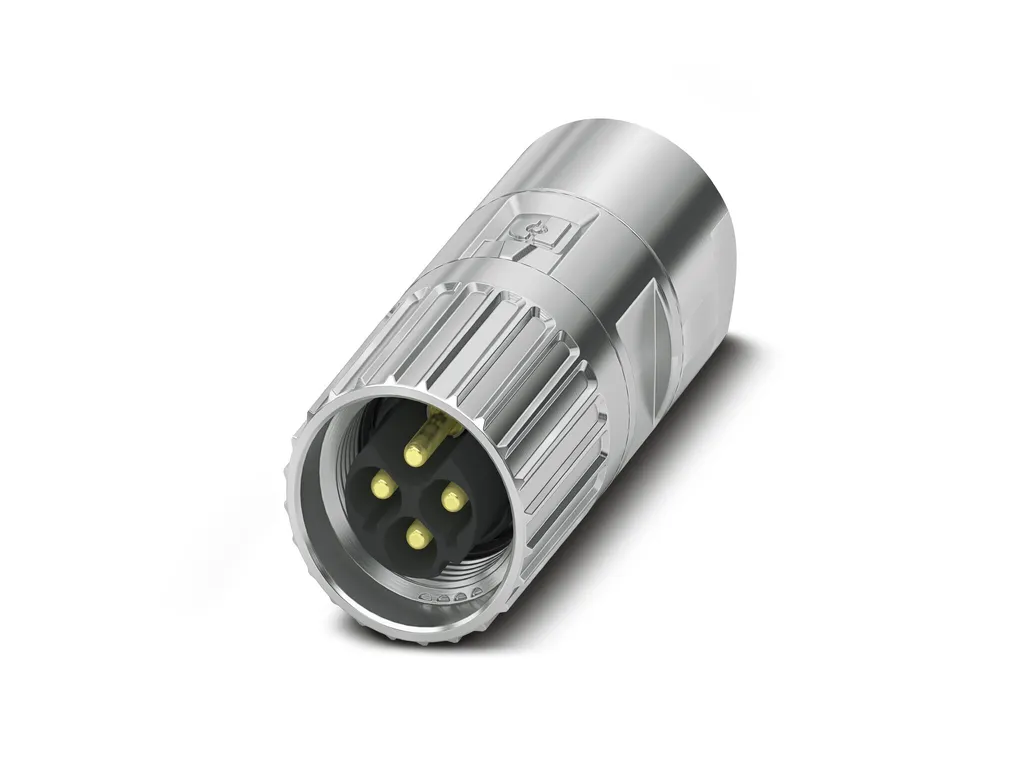

V-RC/TGUM 13/KVD 13/LBL 16+3 - Cable connector

Cable connector, number of positions: 19, status display: No; master cable connection: M23 screw locking, shielding: no, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1237971

Product Code: 1000042 Copia - Copy

Partner cod.: 1000042 Copia - Copy

PHOENIX CONTACT

Notes	General: The connector is designed for use on sensor/actuator boxes with an M23 plug-in connection.
Mounting	Connection method: Solder connection
Product properties	Product type: Circular connector (cable-side) Number of positions: 19
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1f69d68800825b45839fd5b093408dfc/-S204x204-FJPG Width: 26 mm Height: 26 mm Length: 69 mm
Material specifications	Material: GD-Zn Flammability rating according to UL 94: V0 Contact material: CuZn Contact surface material: gold-plated Contact carrier material: PBT
Connection data	Conductor connection Connection method: Solder connection Pin assignment Slot/position = Wire color or connection: 1 / 4 (A)Ã=Ã15Ã=ÃWH 1 / 2 (B)Ã=Ã7Ã=ÃGYPK 2 / 4 (A)Ã=Ã5Ã=ÃGN 2 / 2 (B)Ã=Ã4Ã=ÃRDBU 3 / 4 (A)Ã=Ã16Ã=ÃYE 3 / 2 (B)Ã=Ã8Ã=ÃWHGN 4 / 4 (A)Ã=Ã3Ã=ÃGY 4 / 2 (B)Ã=Ã14Ã=ÃBNGN 5 / 4 (A)Ã=Ã17Ã=ÃPK 5 / 2 (B)Ã=Ã9Ã=ÃWHYE 6 / 4 (A)Ã=Ã2Ã=ÃRD 6 / 2 (B)Ã=Ã13Ã=ÃYEBN 7 / 4 (A)Ã=Ã11Ã=ÃBK 7 / 2 (B)Ã=Ã10Ã=ÃWHGY 8 / 4 (A)Ã=Ã1Ã=ÃVT 8 / 2 (B)Ã=Ã18Ã=ÃGYBN 1-8 / 1 (+ 120 V)Ã=Ã19Ã=ÃBN 1-8 / 3 (0 V)Ã=Ã6Ã=ÃBU 1-8 / 5 (PE)Ã=Ã12Ã=ÃGNYE
Electrical properties	Nominal voltage U_N: 150 V Rated current, total: 10 A (with 1 mm² conductor cross section)
Connector	Connection 2 Head design: Socket Head cable outlet: straight Head thread type: M23
Cable/line	Connection method: M23 screw locking External cable diameter: 10 mm ... 14 mm
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -20°C ... 80°C
