Notes | General: The connector is designed for use on sensor/actuator boxes with an M23 plug-in connection. |
Mounting | Connection method: Solder connection |
Product properties | Product type: Circular connector (cable-side) Number of positions: 12 |

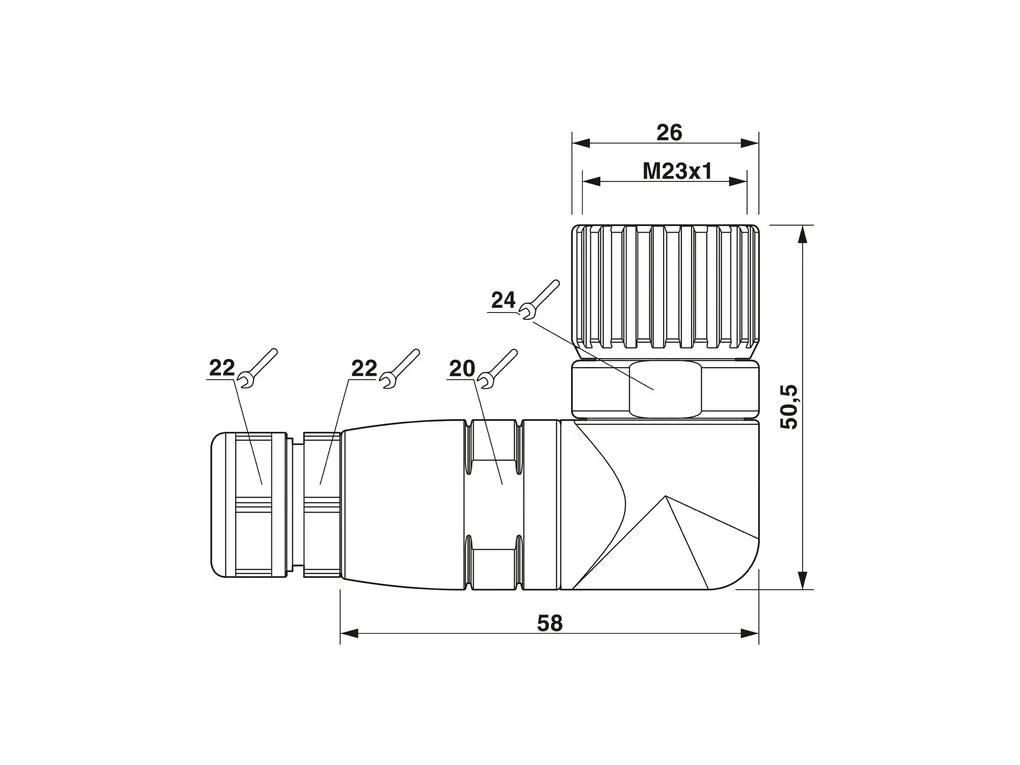

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/61b8ed6c913c7f418ad6d6830cfd5a20/-S204x204-FJPG Width: 26 mm Height: 51 mm Length: 78 mm |
Material specifications | Material: GD-Zn Flammability rating according to UL 94: V0 Contact material: CuZn Contact surface material: gold-plated Contact carrier material: PBT |
Connection data | Conductor connection Connection method: Solder connection Pin assignment Slot/position = Wire color or connection: 1 / 4 (A)=1=WH 2 / 4 (A)=2=GN 3 / 4 (A)=3=YE 4 / 4 (A)=4=GY 5 / 4 (A)=5=PK 6 / 4 (A)=6=RD 7 / 4 (A)=7=BK 8 / 4 (A)=8=VT 1-8 / 1 (+ 120 V)=11=BN 1-8 / 3 (0 V)=9+10=BU 1-8 / 5 (PE)=12=GNYE |
Electrical properties | Nominal voltage UN: 150 V Rated current, total: 8 A (with 1 mm² conductor cross section) |
Connector | Connection 2 Head design: Socket Head cable outlet: angled Head thread type: M23 |
Cable/line | Connection method: M23 screw locking External cable diameter: 8 mm ... 12 mm |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -20°C ... 80°C |
ECLASS | ECLASS-11.0: 27440102 ECLASS-13.0: 27440116 |
ETIM | ETIM 8.0: EC002635 |
UNSPSC | UNSPSC 21.0: 39121400 |
