BC 107,6 OT U11 BK VPE80 - Upper part of housing
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: Refer to the data sheet for the range in the download area. |
Product properties | Product type: Upper housing part Product family: BC OT U11 Max. number of positions: 64 (pitch: 2.5 mm) 48 (pitch: 3.5 mm) 36 (pitch: 5 mm) 24 (pitch: 7.5 mm) Type: Upper housing part (U11) with vents Housing type: DIN rail housing for use in distribution boards in accordance with DIN 43880 Ventilation openings present: yes Housing series: BC |

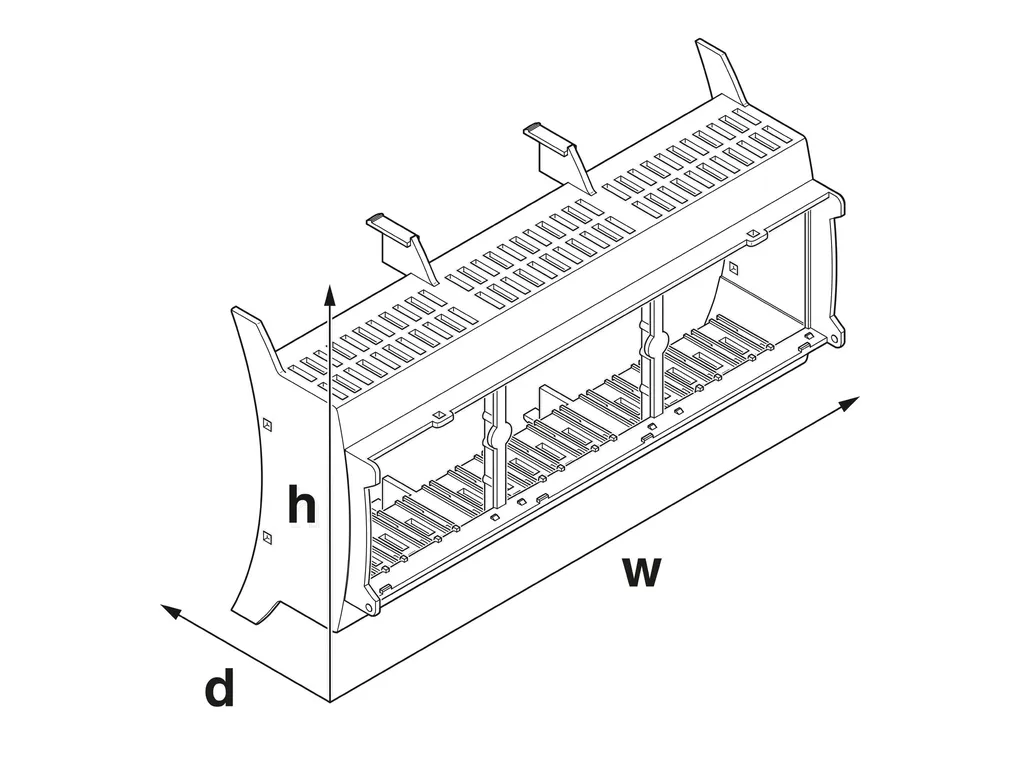

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/5bbeb30e7209884fb76db1a26f2f02b4/-S204x204-FJPG Width: 107.6 mm Height: 89.7 mm Depth: 54.85 mm Horizontal pitch: 6 Div. PCB design PCB thickness: 1.4 mm ... 1.8 mm |
Material specifications | Color: black (9005) Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polycarbonate |
Environmental and real-life conditions | Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1octave/min Amplitude: 0.15mm (10Hz...58.1Hz) Acceleration: 2g (58.1Hz...150Hz) Test duration per axis: 2.5 h Test directions: X-, Y- and Z-axis Glow-wire test Specification: IEC 60695-2-11:2014-02 Temperature: 850°C Time of exposure: 30 s Mechanical strength / tumbling barrel Specification: IEC 60068-2-31:2008-05 Height of fall: 50cm Frequency: 50 Shocks Specification: IEC 60068-2-27:2008-02 Pulse shape: Half-sine Acceleration: 15g Shock duration: 11ms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Degree of protection (IP code) Specification: IEC 60529:1989-11 + AMD1:1999-11 + AMD2:2013-08 Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 95 % |
PCB data | Number of PCB holders: 12 Type of PCB mount: Latching Thickness of the PCB: 1.4 mm ... 1.8 mm |
Mounting | Mounting type: Snap in Mounting position: Vertical (horizontal DIN rail) |
Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190603 |
ETIM | ETIM 8.0: EC001031 |
UNSPSC | UNSPSC 21.0: 31261500 |
