PRC 3-FC-MS6 8-21 - Connector
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: Ensures touch protection For assembly notes, please refer to the packing slip Safety note Safety note: ⢠WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. ⢠WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. ⢠Assembled products may not be manipulated or improperly opened. ⢠Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). ⢠When using the product in direct connection with third-party manufacturers, the user is responsible. ⢠For operating voltages > 50V AC, conductive connector housings must be grounded ⢠Ensure that the protective or functional ground has been properly connected. ⢠VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector ⢠Observe the corresponding technical data. You will find information: o On the product o On the packing label o In the supplied documentation o Online at phoenixcontact.com/products under the product ⢠Only use tools recommended by PhoenixContact ⢠The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. ⢠Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products ⢠Operate the connector only when it is fully plugged in. ⢠Operate the connector only when it is fully plugged in and interlocked. ⢠Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. ⢠Observe the minimum bending radius of the cable. Lay the cable without twisting it. ⢠The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). |

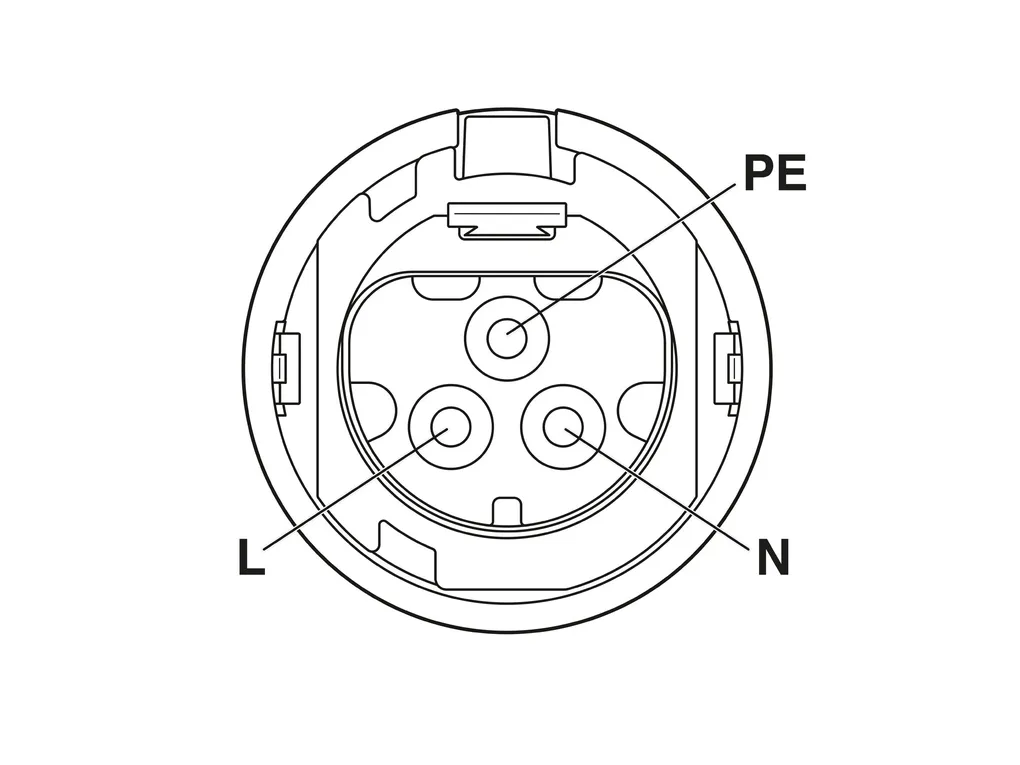

Product properties | Type: Release with tool or by hand (see accessories) Product type: Installation connector Product family: PRC 35 Number of positions: 3 Connection profile: 2+PE Coding: AD Insulation characteristics Protection class: II Degree of pollution: 2 |
Electrical properties | Rated voltage (III/2): 690 V Nominal voltage ATD: 690 V AC (III/2) in accordance with IEC 61984 500 V AC (III/2) in accordance with IEC 61535/2PfG1915 600 V AC / DC (III/2) In accordance with UL2238 500 V DC (III/2) in accordance with IEC 61535 Rated current: 35 A (With 6mm² conductor cross section in accordance with IEC 61984) 32 A (With 6mm² conductor cross section in accordance with IEC 61535) 21.4 A (With 6mm² conductor cross section and 85°Cin accordance with 2 PfG 1915) 32 A (with AWG10, in accordance with UL2237) |
Connection data | Conductor connection Conductor cross section: 1.5 mm² ... 6 mm² |
Dimensions | Width: 37.6 mm Height: 37.6 mm Length: 105 mm External dimensions Outside diameter: 8 mm ... 21 mm |
Material specifications | Material: EPDM (Cable seal) EPDM (Housing seal) PPE (Housing) PPE (Contact carriers) PPE (Cable gland) CuZn (Contact material, Pb <0.1) |
Cable/line | External cable diameter (): 8 mm ... 21 mm External cable diameter: 8 mm ... 21 mm (For notes on cable clamping ranges, see packing slip) Single wire, cross section: 1.5 mm² 6 mm² 14 AWG 10 AWG Stripping length of the individual wire: Lay PE conductor 8mm leading Halogen-free: yes |
Mechanical properties | Mechanical data Insertion/withdrawal cycles: 2000 (Test specification: IEC 60512-13-2) Insertion force: 30 N ±10N (Test specification: IEC 60512-13-2) |
Environmental and real-life conditions | Ambient conditions Degree of protection (when plugged in): IP66 / IP68 (2m / 24h) / IP69K Degree of protection: IP66 / IP68 (2m / 24h) / IP69K Ambient temperature (operation): -40°C ... 105°C (Depending on the current carrying capacity/derating curve) Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -5°C ... 85°C |
Standards and regulations | Standards/specifications: IEC 61984:2008 EN61984:2008 DINENIEC 61535:2020 IEC 61535:2019 2PfG1915/03.2015 UL 2237 Ed.1:2021-01-08 CSAC22.2No.182.3-16 Ed.2:2019-01 |
Mounting | Connection method: Screw connection |
ECLASS | ECLASS-11.0: 27440109 ECLASS-12.0: 27440109 ECLASS-13.0: 27440109 |
ETIM | ETIM 9.0: EC003569 |
UNSPSC | UNSPSC 21.0: 39121400 |
