PRC 3-FC-FS6 8-21 HR - Coupler connector

Coupler connector, Range of articles: PRC 35, design: Release with tool or by hand (see accessories), housing material: PPE, color: black, number of positions: 3, min. conductor cross section: 1.5 mm², max. conductor cross section: 6 mm², rated voltage: 690 V AC, rated current: 35 A, Connection method: Screw connection, Contact connection type: Socket, min. cable diameter: 8 mm, max. cable diameter: 21 mm. Variant for manual release

Product Code: 1017635

Partner cod.: 1017635

PHOENIX CONTACT

Notes	General: Variant for manual release Safety note Safety note: Ã¢¢ WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. Ã¢¢ WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. Ã¢¢ Assembled products may not be manipulated or improperly opened. Ã¢¢ Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). Ã¢¢ When using the product in direct connection with third-party manufacturers, the user is responsible. Ã¢¢ For operating voltages > 50V AC, conductive connector housings must be grounded Ã¢¢ Ensure that the protective or functional ground has been properly connected. Ã¢¢ VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector Ã¢¢ Observe the corresponding technical data. You will find information: o On the product o On the packing label o In the supplied documentation o Online at phoenixcontact.com/products under the product Ã¢¢ Only use tools recommended by PhoenixContact Ã¢¢ The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. Ã¢¢ Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products Ã¢¢ Operate the connector only when it is fully plugged in. Ã¢¢ Operate the connector only when it is fully plugged in and interlocked. Ã¢¢ Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. Ã¢¢ Observe the minimum bending radius of the cable. Lay the cable without twisting it. Ã¢¢ The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
Product properties	Type: Release with tool or by hand (see accessories) Product type: Installation connector Product family: PRC 35 Number of positions: 3 Connection profile: 2+PE Coding: AD Insulation characteristics Protection class: II Degree of pollution: 2
Electrical properties	Rated voltage (III/2): 690 V Nominal voltage ATD: 690 V AC (III/2) in accordance with IEC 61984 600 V AC (III/2) In accordance with UL2238 500 V DC (III/2) in accordance with IEC 61535, when mounted Rated surge voltage (III/2): 8 kV Rated current: 35 A (With 6mm² conductor cross section in accordance with IEC 61984) 32 A (with AWG10, in accordance with UL2237) 32 A (With 6mm² conductor cross section in accordance with IEC 61535)
Connection data	Conductor connection Conductor cross section: 1.5 mm² ... 6 mm²

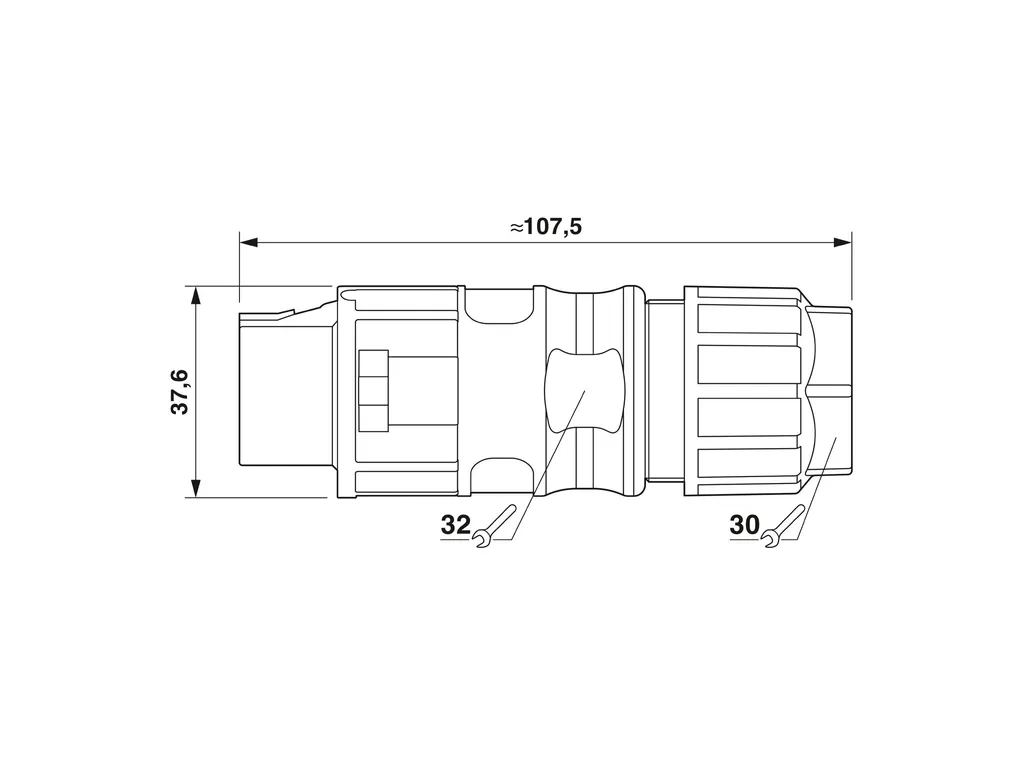

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3dc9e669b756814f8e9cdbc3ecdbde92/-S204x204-FJPG Width: 37.6 mm Height: 37.6 mm Length: 107.5 mm
Connector	Pull-out-force: 150 N ±50N
Cable/line	External cable diameter (): 8 mm ... 21 mm External cable diameter: 8 mm ... 21 mm Single wire, cross section: 1.5 mm² 6 mm² Stripping length of the individual wire: Lay PE conductor 8mm leading Halogen-free: yes
Mechanical properties	Mechanical data Insertion/withdrawal cycles: 2000 Insertion force: 30 N ±10N
Environmental and real-life conditions	Ambient conditions Degree of protection (when plugged in): IP66 / IP68 (2m / 24h) / IP69K Degree of protection: IP66 / IP68 (2m / 24h) / IP69K Ambient temperature (operation): -40°C ... 105°C (dependent on the derating curve) Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -5°C ... 85°C
Standards and regulations	Standards/specifications: IEC 61984:2008 EN61984:2008 DINENIEC 61535:2020 IEC 61535:2019 2PfG1915/03.2015 UL 2237 Ed.1:2021-01-08 CSAC22.2No.182.3-16 Ed.2:2019-01
Mounting	Connection method: Screw connection
