| Product properties | Product type: Assembly element Scope of delivery: End cover and seal Number of mountable signal elements: max. 4 |
| Connection data | Connection method: M12 Stripping length: 7 mm |

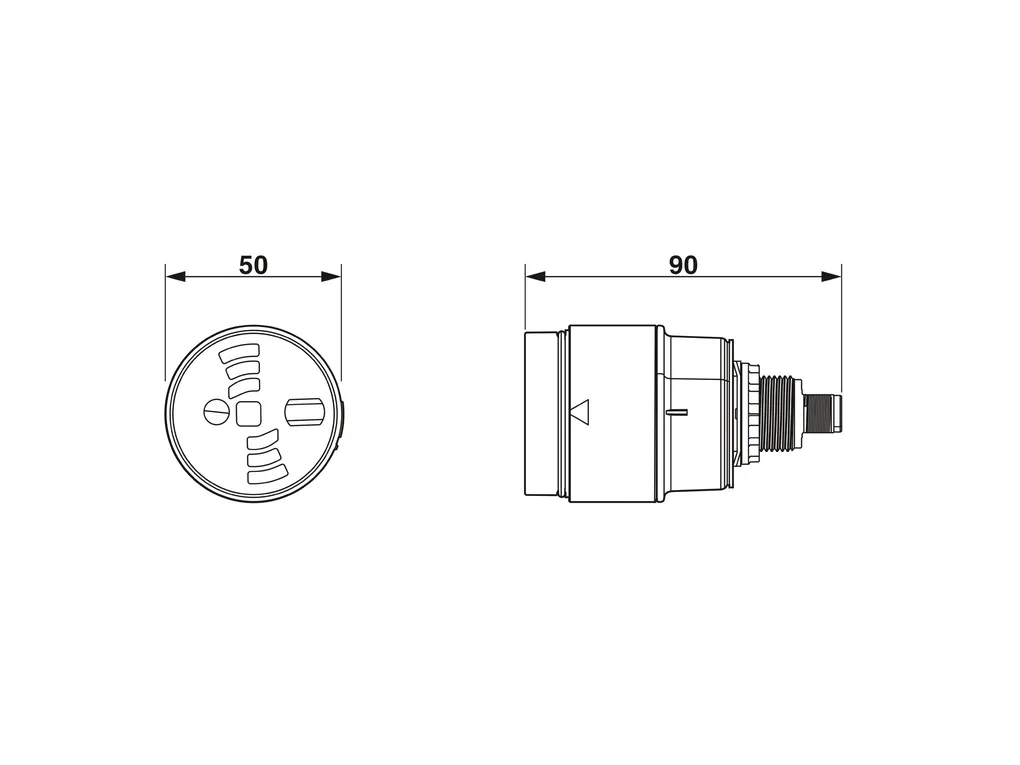

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/77cd65b219302449b5b0b25d037ec40e/-S204x204-FJPG Height: 90 mm Diameter: 50 mm |
| Material specifications | Color: black Material: PA-GF |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 (when installed) Ambient temperature (operation): -30°C ... 60°C |
| EMC data | Electromagnetic compatibility: Conformance with EMC directive 2004/108/EC and for low-voltage directive 2006/95/EC |
| Mounting | Mounting type: M12 mounting threads Assembly instructions: Seal included Mounting position: any |
| ECLASS | ECLASS-11.0: 27371232 ECLASS-12.0: 27371232 ECLASS-13.0: 27371232 |
| ETIM | ETIM 9.0: EC001152 |
| UNSPSC | UNSPSC 21.0: 46171600 |
