Notes | General: This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling) NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. |
Mounting | Assembly instructions: Contacts can be clipped in place and unclipped without tools Connection method: Crimp connection |

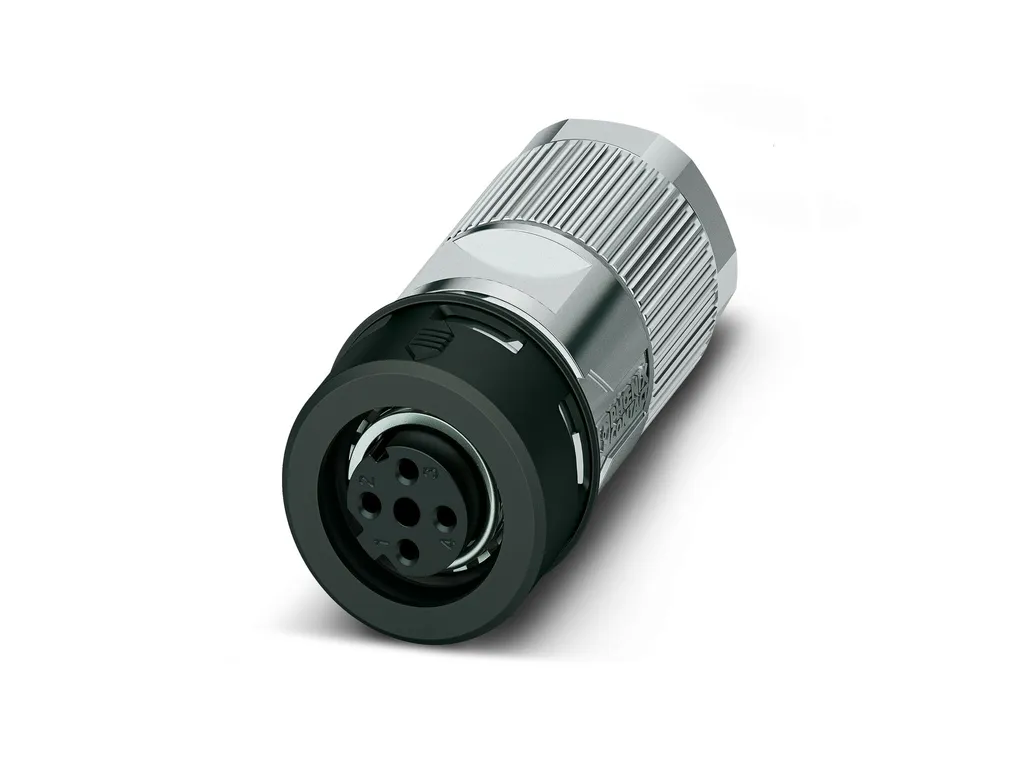

Product properties | Product type: Circular connector (cable-side) Sensor type: PROFINET Number of positions: 4 Application: Data No. of cable outlets: 1 Shielded: yes Coding: D Cable outlet: straight Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f698bfca03fbfd4ba2b5ae1c4356c116/-S204x204-FJPG Wrench size, union nut: 15 mm Wrench size, counter nut: 14 mm External dimensions Outside diameter: 4.5 mm ... 7.5 mm |
Material specifications | Flammability rating according to UL 94: V0 Seal material: NBR Material of grip body: Zinc die-cast, nickel-plated Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated Standards/regulations: PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, R24, and R26 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
Connection data | Conductor connection Connection method: Crimp connection Connection cross section: 0.14 mm² ... 1 mm² (flexible) Connection cross section AWG: 26 ... 18 (flexible) Stripping length of the individual wire: 4 mm +0,5mm Tightening torque: 4 Nm (Pressure nut with coupling sleeve) |
Electrical properties | Rated surge voltage: 2.5 kV Insulation resistance: ⥠100 Mé Nominal voltage UN: 60 VDC 48 VAC Nominal current IN: 4 A |
Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠100 |
Connector | Connection 1 Head design: Socket Head cable outlet: straight Head thread type: M12 Head locking type: Push-Pull Coding: D |
Cable/line | Signal type/category: PROFINET CAT5 (IEC 11801), 100 Mbps Stripping length of the individual wire: 4 mm +0,5mm |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -40°C ... 85°C (Plug / socket) |
Standards and regulations | Testing Standards/regulations: PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, R24, and R26 acc. to DINEN45545-2 (Risk level HL1 - HL3) Standard designation: M12 connector Shock, vibration Standards/specifications: IEC 61076-2-101 EN50155:2001 Note: In line with |
ECLASS | ECLASS-11.0: 27440102 ECLASS-12.0: 27440116 ECLASS-13.0: 27440116 |
ETIM | ETIM 8.0: EC002635 |
UNSPSC | UNSPSC 21.0: 39121400 |
