FL SWITCH 1001T-4POE-GT-SFP - Industrial Ethernet Switch
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Dimensions | Width: 30 mm Height: 149 mm Depth: 107.8 mm |
Notes | General: Mode A PoE Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area |
Mounting | Mounting type: DIN rail mounting |
Interfaces | Ethernet Connection method: RJ45 Note on the connection method: Auto negotiation and autocrossing Transmission speed: 10/100/1000 Mbps Transmission physics: Ethernet RJ45 Transmission length: 100 m (Between transmitter / receiver) Signal LEDs: LNK/ACT, POE No. of channels: 1 (RJ45 port) Fiber optic interface Number of interfaces: 1 Connection method: SFP Transmission speed: 1000 Mbps (full duplex) Transmission physics: Depending on the SFP module Transmission length: up to 80 km (Depending on the fiber/SFP module used) No. of channels: 1 (SFP port) Ethernet (PoE) Connection method: RJ45 Transmission speed: 10/100/1000 Mbps Transmission physics: Ethernet RJ45 Transmission length: 100 m (Between transmitter / receiver) Signal LEDs: LNK/ACT, POE No. of channels: 4 (RJ45 ports) |
Product properties | Type: Stand-Alone Product type: Switch Product family: Unmanaged PoE Switches 1000 MTTF: 66.6 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) Switch functions Basic functions: Store-and-forward switch, 10/100/1000 Mbps, auto negotiation, redundant power supply, PoE according to IEEE 802.3at/802.3af, jumbo frames up to 10240 bytes, alarm contact Signal contact control voltage: 48 VDC Signal contact control current: 0.5 A Status and diagnostic indicators: LEDs: US1, US2 (redundant voltage supply), Alarm (alarm contact), Link/Activity and PoE per Ethernet port Additional functions: Autonegotiation Security functions Basic functions: Store-and-forward switch, 10/100/1000 Mbps, auto negotiation, redundant power supply, PoE according to IEEE 802.3at/802.3af, jumbo frames up to 10240 bytes, alarm contact |
Electrical properties | Local diagnostics: US1, US2 Supply voltage Green LED PoE PoE detection Orange LED LNK/ACT Link status/data transmission Green LED Alarm Power failure at US1 or US2/Link failure Supply Supply voltage (DC): 24 VDC Supply voltage: 48 VDC Supply voltage range: 18 VDC ... 57 VDC Power supply connection: Via COMBICON, max. conductor cross section 2.5 mm² Inrush current: 33.8 A (24VDC for 3540üs) Residual ripple: 3.6 VPP (within the permitted voltage range) Max. current consumption: 6.93 A (Maximum, nominal load) Typical current consumption: 214 mA (at US = 24VDC) Function Signal contact control voltage: 48 VDC Signal contact control current: 0.5 A |
Connection data | Connection technology Connection name: Power supply Power supply Connection method: Screw connection Conductor cross section, rigid: 0.2 mm² ... 2.5 mm² Conductor cross section, flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Stripping length: 7 mm |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP30 Ambient temperature (operation): -40°C ... 75°C Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing) Air pressure (operation): 57 kPa ... 108 kPa (up to 4850 m above mean sea level) Air pressure (storage/transport): 57 kPa ... 108 kPa (up to 4850 m above mean sea level) |
Approvals | Conformity/Approvals Conformance: CE-compliant |
EMC data | Conformance with EMC directives: IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B IEC 61000-4-3 (immunity to radiated interference) Criterion A IEC 61000-4-4 (burst) Criterion A IEC 61000-4-5 (surge) Criterion B IEC 61000-4-6 (immunity to conducted interference) Criterion A IEC 61000-4-8 (immunity to magnetic fields) Criterion A EN 55032 (emitted interference) Criterion A Electromagnetic compatibility: Conformance with EMC Directive 2004/108/EC |
System properties | Functionality Basic functions: Store-and-forward switch, 10/100/1000 Mbps, auto negotiation, redundant power supply, PoE according to IEEE 802.3at/802.3af, jumbo frames up to 10240 bytes, alarm contact |

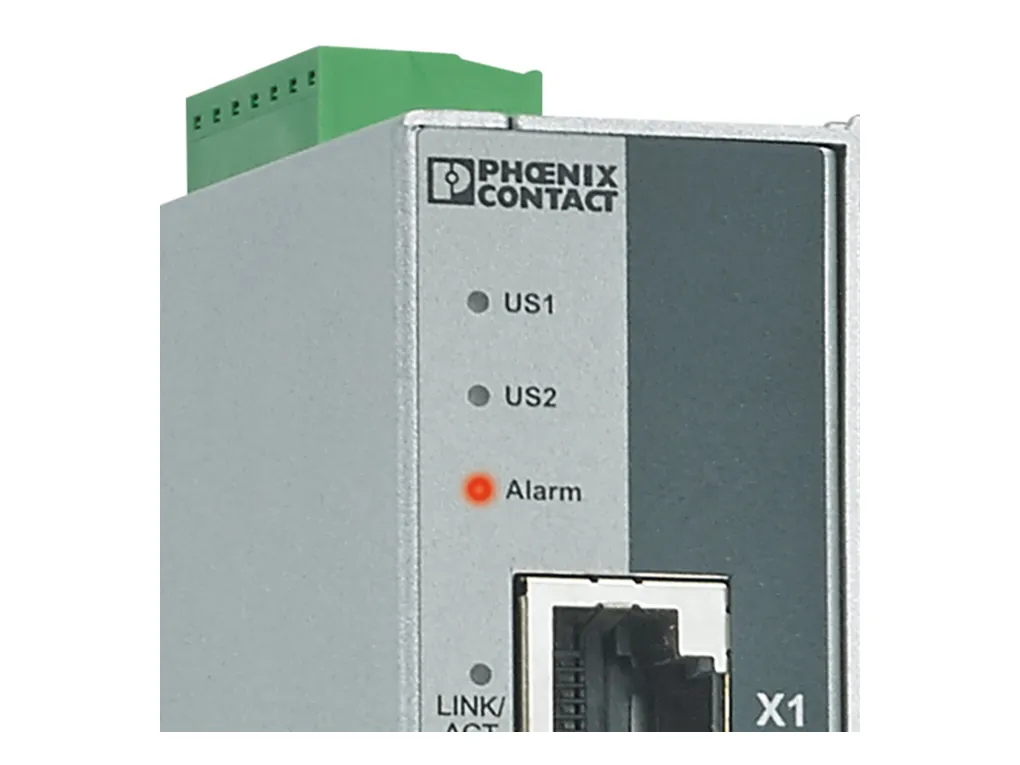

Signaling | Status display: LEDs: US1, US2 (redundant voltage supply), Alarm (alarm contact), Link/Activity and PoE per Ethernet port |
ECLASS | ECLASS-11.0: 19170402 ECLASS-12.0: 19170402 ECLASS-13.0: 19170402 |
ETIM | ETIM 9.0: EC000734 |
UNSPSC | UNSPSC 21.0: 43222600 |
