SACC-M12MSS-3PECT-CM SH - Power connector

Power connector, Power, 4-position, shielded, Plug straight M12, coding: S, Crimp connection, knurl material: Zinc die-cast, tin-plated, external cable diameter 6.5 mm ... 11 mm, without crimp contacts, Contact 4 leading

Product Code: 1027467

Partner cod.: 1027467

PHOENIX CONTACT

Notes	General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties.
Mounting	Connection method: Crimp connection
Product properties	Product type: Circular connector (cable-side) Sensor type: Power Number of positions: 4 Application: Power supply No. of cable outlets: 1 Shielded: yes Coding: S Cable outlet: straight Insulation characteristics Overvoltage category: III Degree of pollution: 3

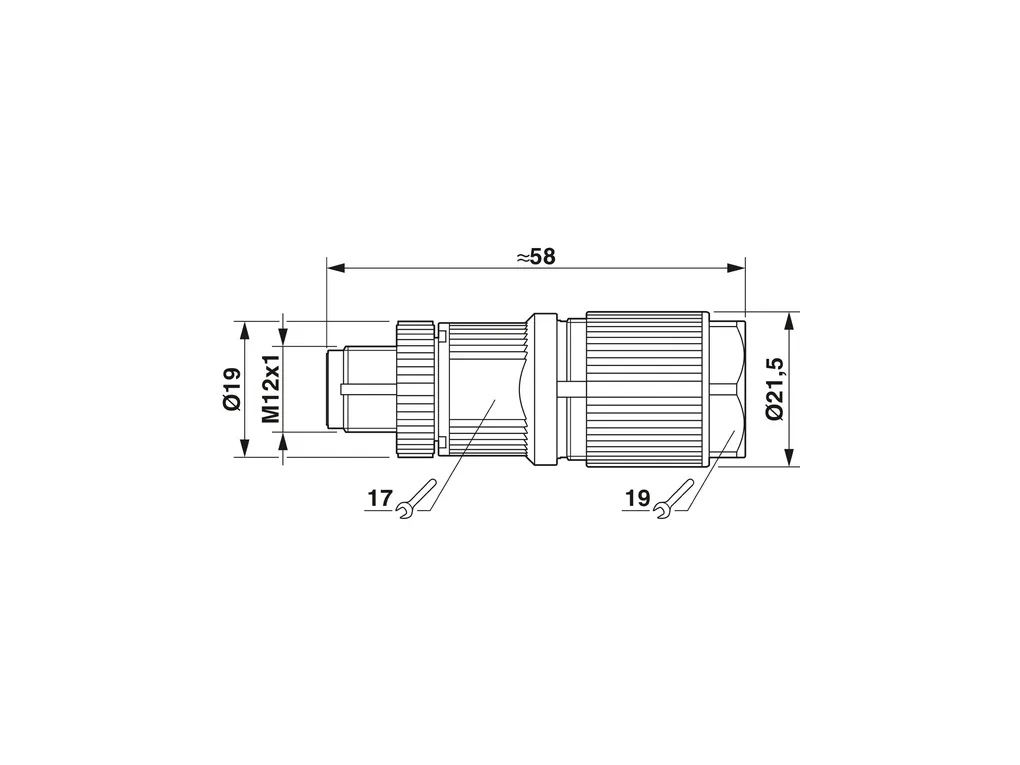

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/eb32c120d903a349b3e3db7dcd2c7bdf/-S204x204-FJPG Length: 58 mm External dimensions Outside diameter: 6.5 mm ... 11 mm Housing Diameter housing: 21.5 mm
Material specifications	Flammability rating according to UL 94: V0 Material of grip body: Zinc die-cast, nickel-plated Contact carrier material: PA Material for screw connection: Zinc die-cast, tin-plated
Connection data	Conductor connection Connection method: Crimp connection Connection cross section: 1.5 mm² ... 2.5 mm² (flexible) Connection cross section AWG: 14 (flexible) Tightening torque: 5 Nm (Pressure nut with coupling sleeve) Pin assignment Contact \| Color (signal designation) \| Contact (optional): 1 = BK1 2 = BK2 3 = BK3 PE = GNYE
Electrical properties	Rated surge voltage: 6 kV Insulation resistance: Ã¢¥ 100 MÃ© Nominal voltage U_N: 690 VAC Nominal current I_N: 12 A (when using 1.5 mm² conductors) 12 A (at 40°C)
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢¥ 100
Connector	Connection 1 Head design: Plug Head cable outlet: straight Head thread type: M12 Coding: S
Cable/line	Signal type/category: Power
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -40°C ... 85°C (Plug / socket)
Standards and regulations	Standard designation: M12 connector Standards/specifications: based on IEC 61076-2-111
