Product properties | Product type: Test terminal strip Number of positions: 14 Insulation characteristics Overvoltage category: III |
Electrical properties | Rated surge voltage: 4 kV Maximum power dissipation for nominal condition: 1.02 W Test surge voltage: 5 kV |
Connection data | Nominal cross section: 4 mm² 1 level Tightening torque: 1 ... 1.3 Nm Internal cylindrical gage: A5 Connection in acc. with standard: IEC 60947-7-1 Conductor cross section flexible: 0.5 mm² ... 6 mm² Conductor cross section, flexible [AWG]: 20 ... 10 (converted acc. to IEC) Nominal current: 24 A Maximum load current: 24 A Nominal voltage: 400 V Cable lug connection DIN46237:1970-07 Connection in acc. with standard: DIN46237:1970-07 Cross section: 0.5 mm² ... 2.5 mm² 4 mm² ... 6 mm² Cross section range AWG: (converted acc. to IEC) Hole diameter: 3.7 mm Width: 6.8 mm 7.2 mm Bolt diameter: 3.5 mm Identification color of ring cable lugs : red: 1 mm² Identification color of ring cable lugs : blue: 2.5 mm² Additional text: Type RS PRO Order No. 267-3919, vertical crimping |

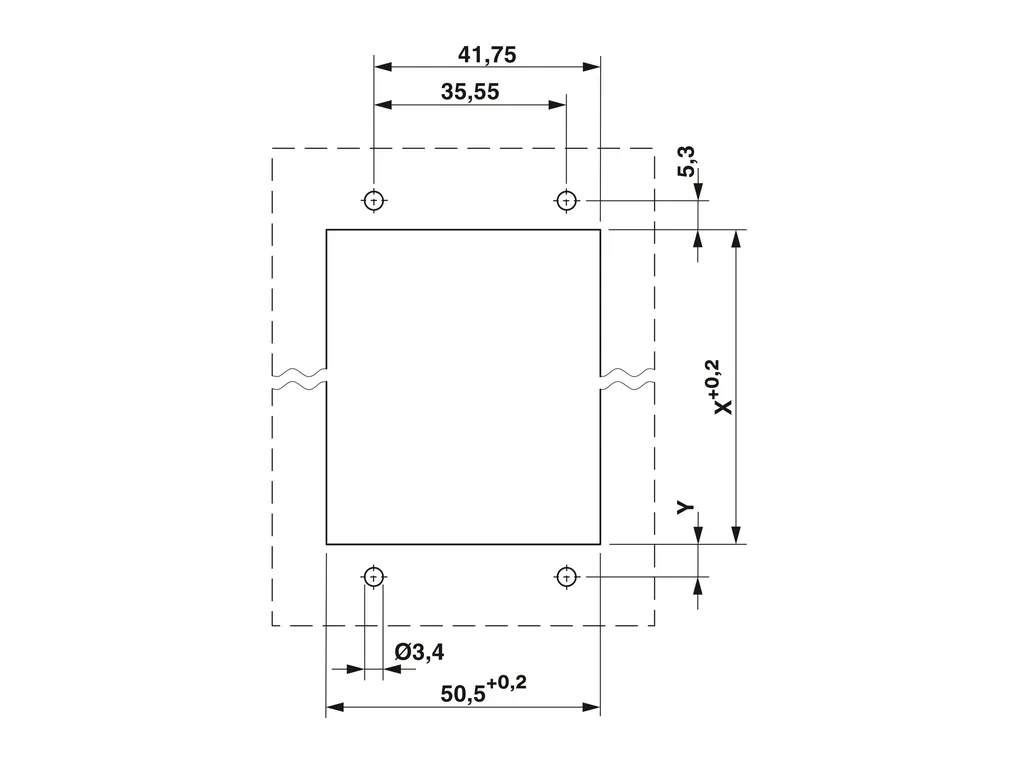

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/588178151c0e3944ac6803e725a05ad5/-S204x204-FJPG Width: 172.6 mm Height: 51.5 mm Depth: 130.45 mm |
Material specifications | Color: gray Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Relative insulation material temperature index (Elec., UL 746 B): 130°C |
Mechanical properties | Mechanical data Open side panel: No |
Environmental and real-life conditions | Ambient conditions Ambient temperature (storage/transport): -25°C ... 55°C (for a short time, not exceeding 24h, -60°C to +70°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 % |
Standards and regulations | Connection in acc. with standard: IEC 60947-7-1 |
Mounting | Mounting type: 19" rack mounting |
ECLASS | ECLASS-11.0: 27141126 ECLASS-12.0: 27141126 ECLASS-13.0: 27250190 |
ETIM | ETIM 9.0: EC002848 |
UNSPSC | UNSPSC 21.0: 39121400 |
