| Mounting | Mounting type: Snap in Connection method: Crimp connection |

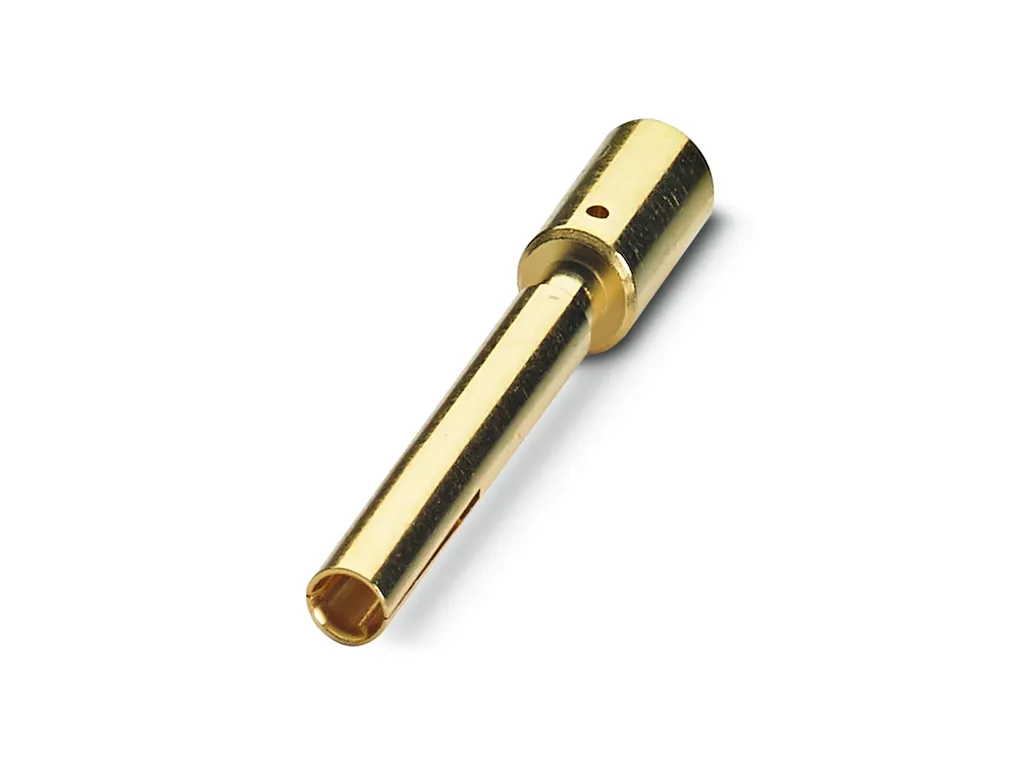

| Product properties | Product type: Crimp contact Type: Individual female contact Contact material type: turned |
| Connection data | Connection method: Crimp connection Contact connection type: Socket Connection technology: Crimp connection Conductor cross section: 2.5 mm² ... 2.5 mm² (flexible) Connection cross section AWG: 14 ... 14 (flexible) Conductor cross section flexible: 2.5 mm² ... 2.5 mm² Conductor cross section AWG: 14 ... |
| Material specifications | Contact material: CuZn Contact surface material: Ni/Au |

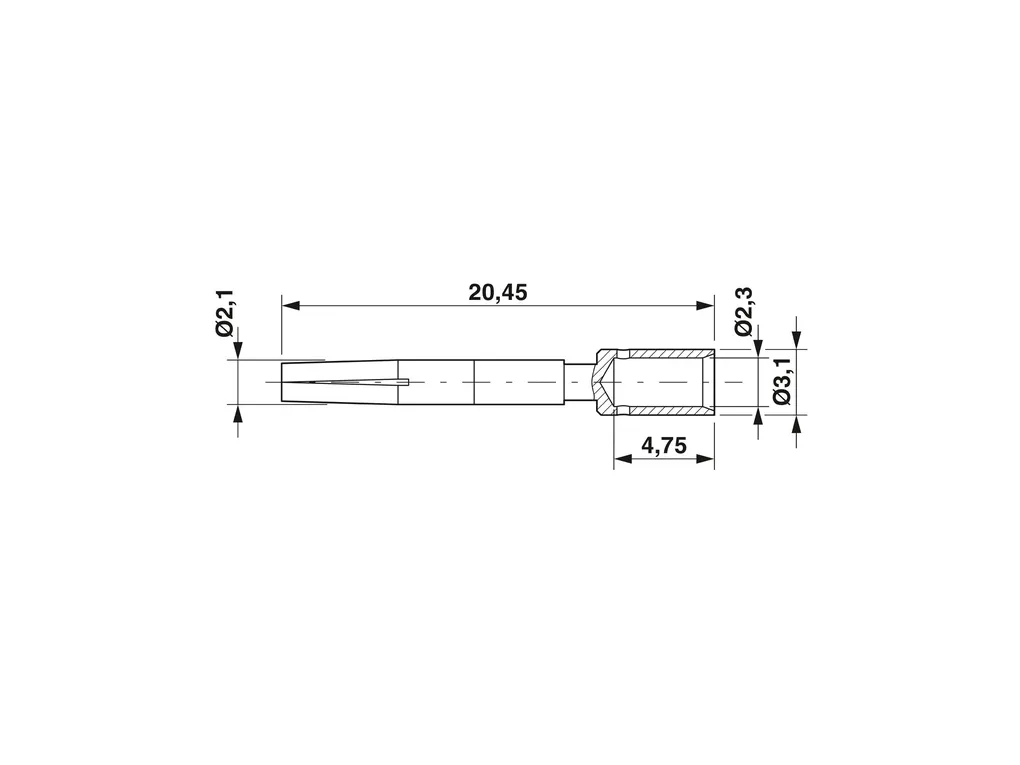

| Dimensions | Mechanical characteristics Contact diameter: 1.5 mm |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠100 |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 85°C |
| ECLASS | ECLASS-11.0: 27440204 ECLASS-12.0: 27440204 ECLASS-13.0: 27440204 |
| ETIM | ETIM 9.0: EC000796 |
| UNSPSC | UNSPSC 21.0: 39121500 |
