PHOENIX CONTACT 1031721
PHOENIX CONTACTAvailable

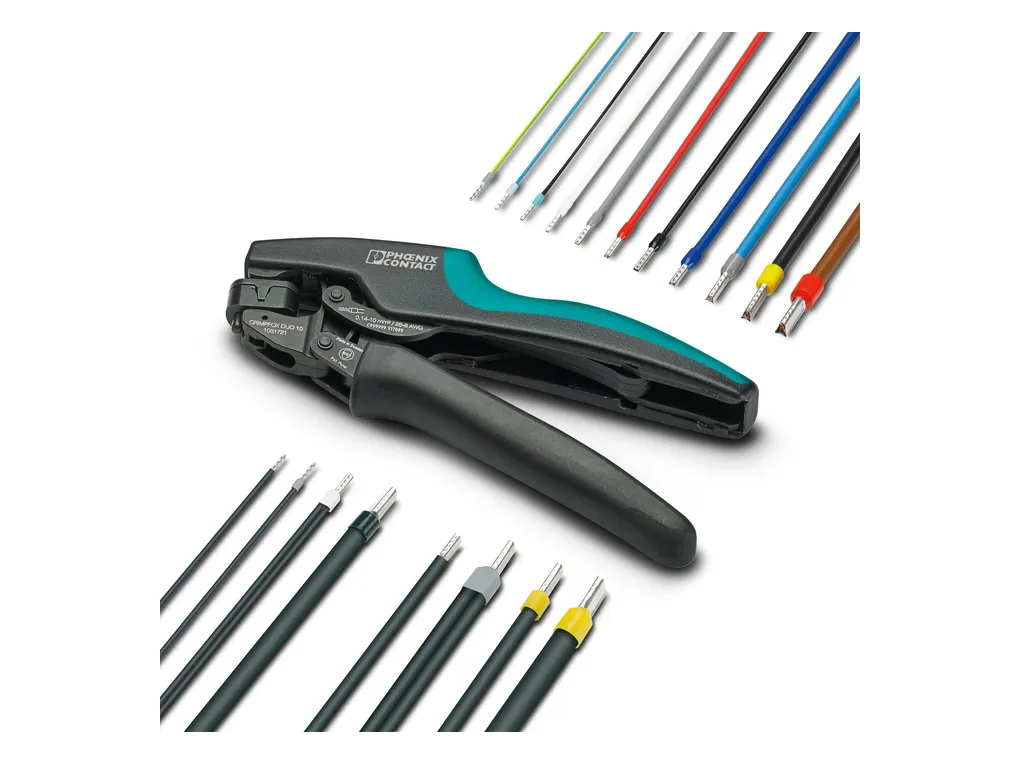

CRIMPFOX DUO 10 - Crimping pliers

Crimping pliers, contact connection type: Insulated and uninsulated ferrules, standards/specifications: DIN46228-1, DIN46228-4, UL486F, form A, E, F, min. cross section: 0.14 mm2, max. cross section: 10 mm2, for TWIN ferrules up to 2 x 4 mm2, automatic cross section adjustment, rotating die, lateral and frontal insertion, compression: Trapezoidal crimp, black/green
Product Code: 1031721
Partner cod.: 1031721
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
NotesGeneral: DIN46228-1, DIN46228-4
Environmental Product Compliance
California Proposition 65: Further information on California's prop. 65 is available under "Downloads" in the manufacturer's declaration
Product propertiesProduct type: Crimping tool
Compression: Trapezoidal crimp
Crimping position 1
Min. cross section: 0.14 mm²
Max. cross section: 10 mm²
AWG min: 26
AWG max: 8
Electrical propertiesFuse: DIN46228-1, DIN46228-4, UL486F, form A, E, F
Connection dataConductor connection
Cross section range, metric: 0.14 mm² ... 10 mm² (2 x 0.5 mm² ... 2 x 4 mm²)
Cross section range AWG: 26 ... 8 (2xAWG20...12)
DimensionsWidth: 65 mm
Height: 25 mm
Length: 180 mm
Material specificationsColor: black/green
Material: Steel with plastic handle
Technical Specs
ECLASSECLASS-11.0: 21043811
ECLASS-12.0: 21043811
ECLASS-13.0: 21043811
ETIMETIM 9.0: EC000168
UNSPSCUNSPSC 21.0: 27111500
Description
Crimping pliers, type of contact: Insulated and uninsulated ferrules, standards/specifications: DIN 46228-1, DIN 46228-4, min. cross section: 0.14 mm², max. cross section: 10 mm², for TWIN ferrules up to 2 x 4 mm², automatic cross section adjustment, rotating die, lateral and frontal insertion, compression: Trapezoidal crimp, black/green
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05464.pdf
