| Notes | General: For wall cutouts of type B24 |

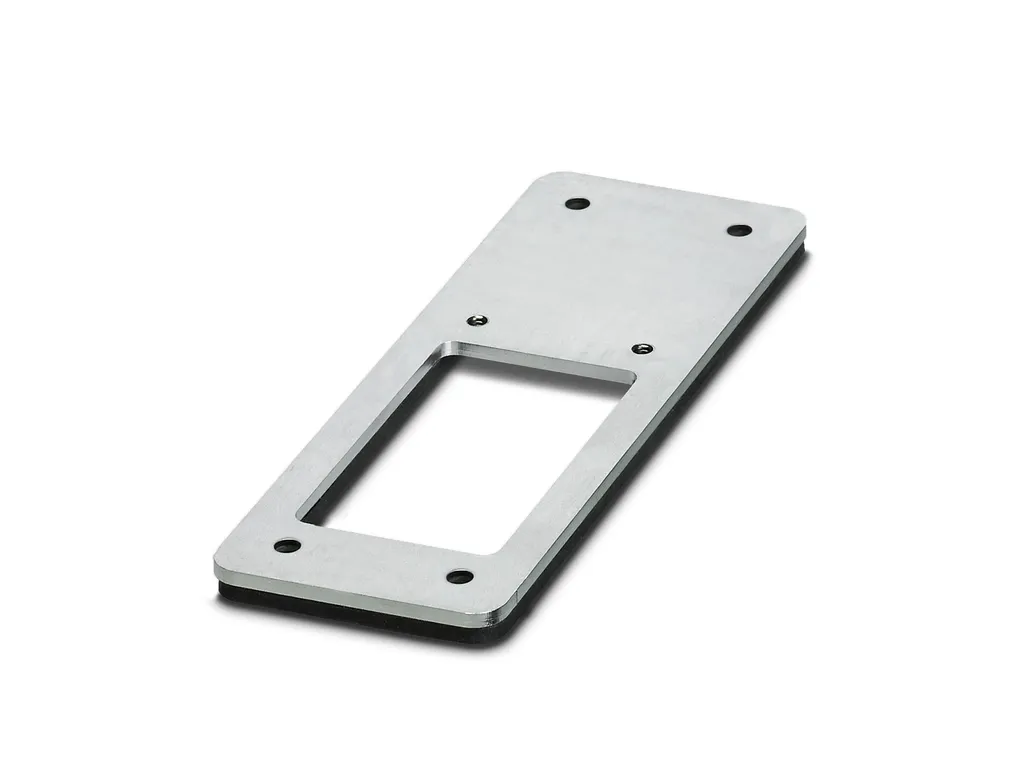

| Product properties | Type: B24 Product type: Adapter plate Seal present: yes |

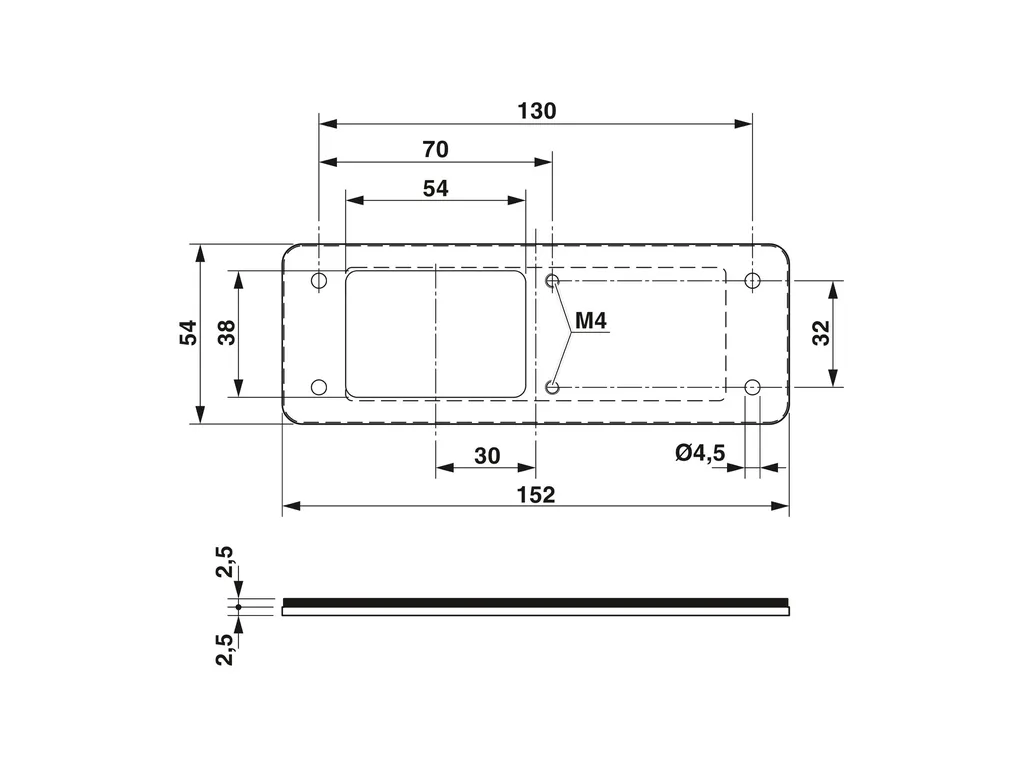

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/6636e4be01f3cf4c91c2b2896de1d6f3/-S204x204-FJPG Width: 53 mm Height: 5 mm Length: 151 mm Drill hole distance, horizontal: 130 mm Drill hole distance, vertical: 32 mm Hole diameter: 5.5 mm |
| Material specifications | Material: Stainless steel 1.4301/AISI 304 Seal material: NBR/SBR |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP54 IP65 Ambient temperature (operation): -40°C ... 125°C |
| Mounting | Assembly instructions: Torque of the mounting screws 1 ... 2 Nm |
