| Notes | General Note: Usable in all low-voltage systems between L-N or L-PEN. Only usable in IT Systems between L-PE, if the exposed-conductive-parts (bodies) of the equipment of the low-voltage installation is connected to the earthing arrangement of the transformer substation. (interconnected earthing arrangement of the HV-transformer substation with the bodies of the LV-installation. RE = RA accordance to IEC 60364-4-442 / VDE 0100-442 Fig. 44D / Example a) |
| Product properties | IEC test classification: II T2 EN type: T2 IEC power supply system: TN TT IT Type: DIN rail module, two-section, divisible Product type: Replacement plug Product family: VALVETRAB MS Number of positions: 1 Surge protection fault message: optical Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Nominal frequency fN: 50 Hz (60ÃHz) |
| Connection data | Connection method: pluggable |

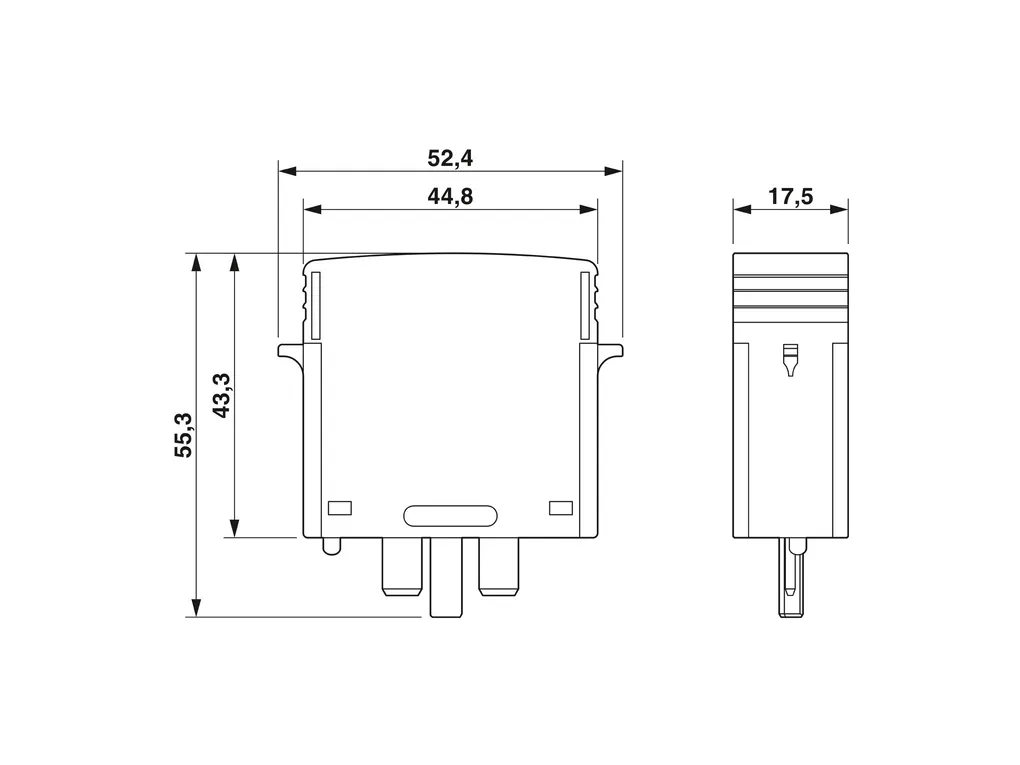

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3e02d9b64ee0a341a2e312513f1ad825/-S204x204-FJPG Width: 17.5 mm Height: 52.4 mm Depth: 55.3 mm Horizontal pitch: 1 Div. |
| Material specifications | Flammability rating according to UL 94: V-0 CTI value of material: 600 Insulating material: PA 6.6 Material group: I Housing material: PA 6.6 |
| Protective circuit | Mode of protection: L-N L-PE L-PEN Nominal voltage UN: 240/415ÃVÃAC (TN) 240/415ÃVÃAC (TT) 230ÃVÃAC (IT) Nominal frequency fN: 50 Hz (60ÃHz) Maximum continuous voltage UC: 350 VÃAC Residual current IPE: ââ°¤ 5 õA Standby power consumption PC: ââ°¤ 2 mVA Nominal discharge current In (8/20) õs: 10 kA Maximum discharge current Imax (8/20) õs: 20 kA Impulse discharge current (10/350)Ãõs, charge: 1.25 As Impulse discharge current (10/350)Ãõs, specific energy: 1.56 kJ/é Impulse discharge current (10/350)Ãõs, peak value limp: 2.5 kA Short-circuit current rating ISCCR: 25 kA Voltage protection level Up: ââ°¤ 1.5 kV Residual voltage Ures: ââ°¤ 1.35 kV (at In) ââ°¤ 1.35 kV (at 10 kA) ââ°¤ 1.2 kV (at 5 kA) Front of wave sparkover voltage at 6 kV (1.2/50) õs: ââ°¤ 1.5 kV TOV behavior at UT: 415 VÃAC (5Ãs / withstand mode) 440 VÃAC (120Ãmin / withstand mode) Response time tA: ââ°¤ 100 ns Max. backup fuse with branch wiring: 125 A (gG) Additional technical data Impulse discharge current (10/350)Ãõs, charge: 1.25 As Impulse discharge current (10/350)Ãõs, specific energy: 1.56 kJ/é Impulse discharge current (10/350)Ãõs, peak value limp: 2.5 kA (3 x) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 80°C Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ââ°¤ 2000 m (amsl) Permissible humidity (operation): 5 % ... 95 % Shock (operation): 25g (Half-sine / 11 ms / 3x ñX, ñY, ñZ) Vibration (operation): 5g (10 ... 500 Hz / 2.5 h / X, Y, Z) |
| Standards and regulations | Standards/specifications: IEC 61643-11 ENÃ61643-11 Note: 2011 2012 |
| Mounting | Mounting type: on base element |
