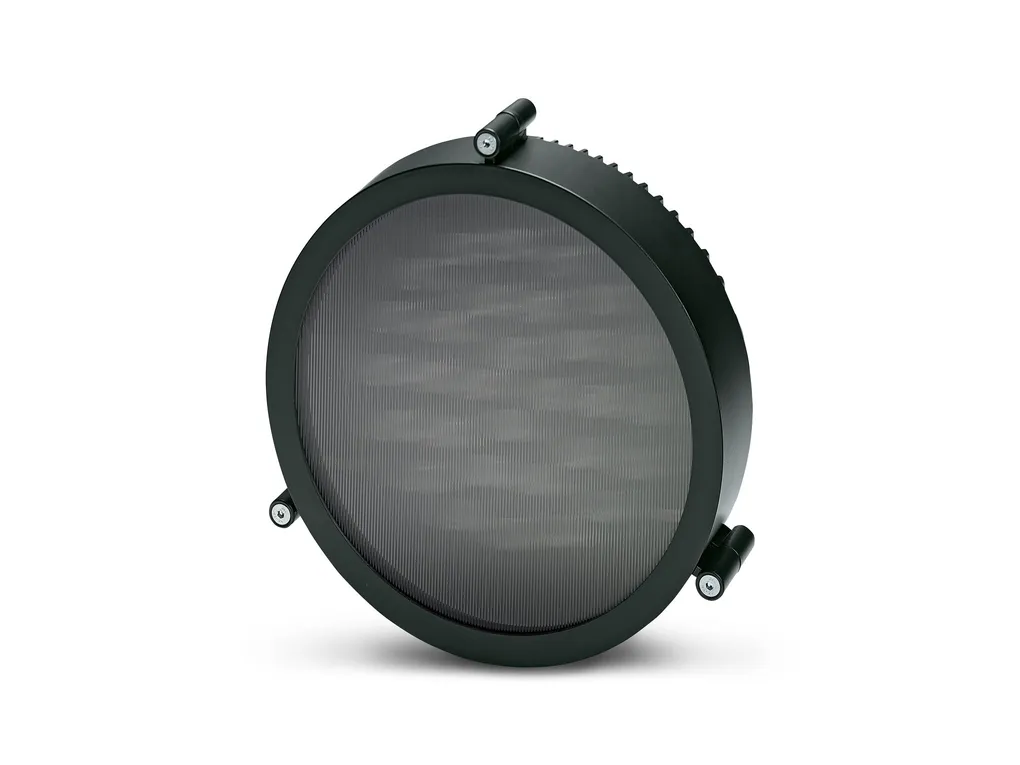

Product properties | Product type: Light Application: Maritime navigation Transportation infrastructure Design: Operating hours counter Diagnostics messages: LEDs; temperature, current, voltage, etc. yes Mains failure, communication failure Failsafe Light color: IALA red, optimum |
Electrical properties | General Inrush current: max. 36 A (µ-sec-pulse) Supply: Module electronics Connection method: M17 hybrid connectors with SPEEDCON locking system Number of positions: 8 Supply voltage: 24 VDC (DC) Current consumption: max. 1.95 A (red LEDs) Power consumption: max. 55 W (red LEDs) |
Connection data | Connection method: M17 hybrid connectors with SPEEDCON locking system |
Signaling | Light properties Source of light type: LED Number of LEDs: 30 (in accordance with IALA recommendation E200-1 and CIE 1931) Service life, lighting appliance: 50000 h Light color: IALA red, optimum Color temperature: 620...645 nm Color class: C3 (EN 12966) Luminance: L3 (EN 12966) Luminous intensity: 4482 Cd Can be dimmed: Yes, in 256 steps Emission angle: 30° (30° x 30°) Luminance ratio: R3 (EN12966) Phantom light class: 5 (EN 12368) Diagnostic messages Diagnostics: LEDs; temperature, current, voltage, etc. Message: yes Diagnostic messagesâ Diagnostics: Mains failure, communication failure Message: Failsafe |
Dimensions | Depth: 68 mm Diameter: 272 mm |
Material specifications | Material: Aluminum die-cast in accordance with DINEN1706 Glass |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 55°C Degree of protection: IP65/IP67 (When installed) Air pressure (operation): 70 hPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 hPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -25°C ... 85°C |
Mounting | Mounting type: Screw mounting Assembly instructions: Use of stainless steel fittings (corrosion-resistant) |
ECLASS | ECLASS-11.0: 27110201 ECLASS-13.0: 27110201 ECLASS-12.0: 27110201 |
ETIM | ETIM 9.0: EC002750 |
UNSPSC | UNSPSC 21.0: 39111800 |
