PHOENIX CONTACT 1051221
PHOENIX CONTACTNot available

HC-M-B16-DOCK-H - Docking frame

Docking frame for 4modules, fixed assembly, rack compensation of ±2.0mm in the x/y-axis
Product Code: 1051221
Partner cod.: 1051221
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Download
Tecnichal data
Product propertiesType: B16
Product type: Docking frame
Application: Modular docking frame
Number of module slots: 4
Series: HC-M-B
HC-M-02
HC-M-03
HC-M-03/04
HC-M-04
HC-M-05
HC-M-06
HC-M-08
HC-M-08-GBIT
HC-M-12
HC-M-17
HC-M-20
HC-M-25
HC-M-DSUB
HC-M-EMV
HC-M-HV
HC-M-HS
HC-M-00
Frame type: Docking frames
Material specificationsMaterial: die-cast aluminum
MountingMounting type: Direct mounting with flange
Assembly instructions: When using the module carrier frame in metal housings, the connection of the PE conductor must be ensured via the PE connection provided on the module carrier frame or via a special metal PE module
Technical Specs
ECLASSECLASS-11.0: 27440206
ECLASS-12.0: 27440206
ECLASS-13.0: 27440206
ETIMETIM 9.0: EC002312
UNSPSCUNSPSC 21.0: 31261500
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_01472.pdf

Manufacturer_declaration_02478.pdf

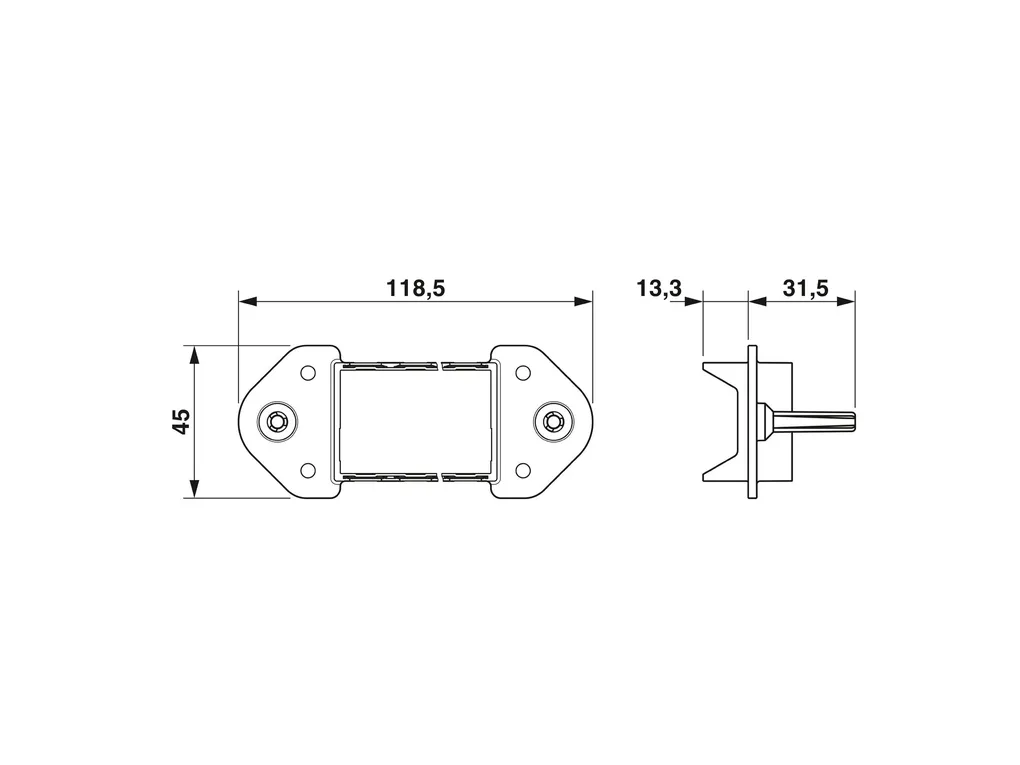

Technical_drawing_06704.pdf
