Notes | General: Refer to the data sheet for the range in the download area. |
Product properties | Product type: Housing Type: non-vented Housing type: outdoor housings Ventilation openings present: no Housing series: ECS |

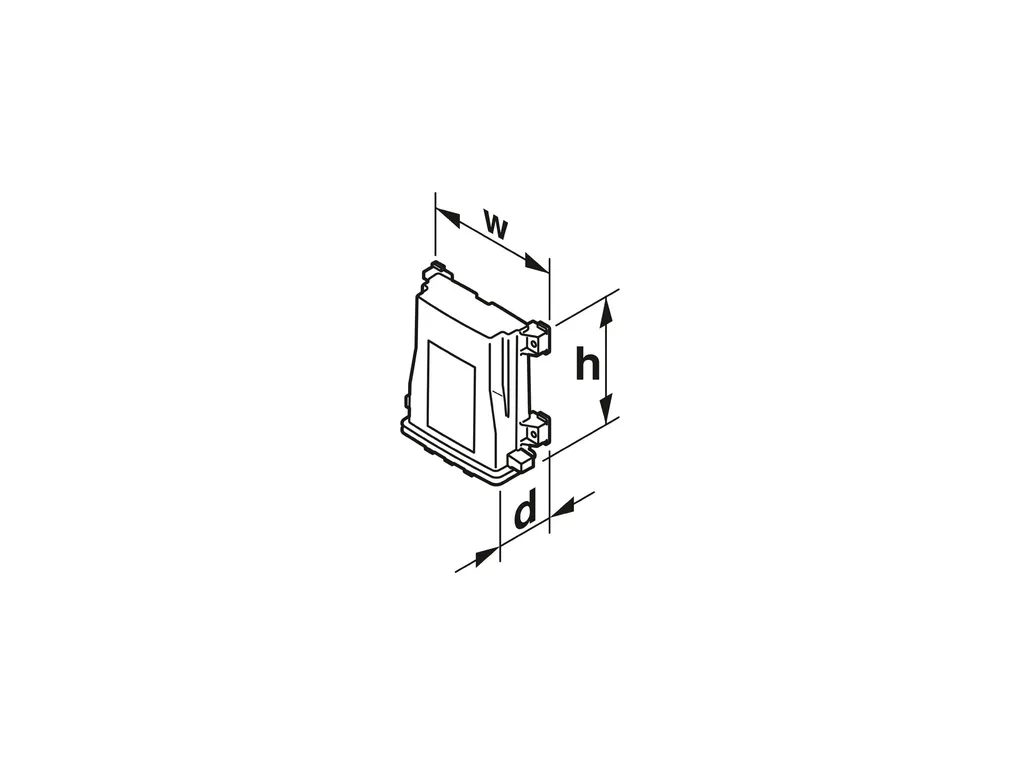

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e269a856dfe38e4f94e4c20ff74e4f5f/-S204x204-FJPG Width: 164 mm Height: 116 mm Depth: 64 mm PCB design PCB thickness: 1.57 mm ... 2.36 mm |
Material specifications | Color: black (9005) Flammability rating according to UL 94: V0 Surface characteristics: untreated Impact strength: IK08 Housing material: PC (polycarbonate) |
Environmental and real-life conditions | Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 2000 - 10 Hz Sweep speed: 1octave/min Acceleration: 15g (61.6Hz...2000Hz) Test duration per axis: 2.5 h Test directions: X-, Y- and Z-axis Glow-wire test Specification: IEC 60695-2-11:2014-02 Temperature: 850°C Time of exposure: 30 s Mechanical strength / tumbling barrel Specification: IEC 60068-2-31:2008-05 Height of fall: 50cm Frequency: 50 Shocks Specification: IEC 60068-2-27:2008-02 Pulse shape: Semi-sinusoidal Acceleration: 50g Shock duration: 11ms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Salt spray test Specification: DINEN60068-2-11:2000-02 Test duration: 96 h Test for substances that would hinder coating with paint or varnish Specification: VDMA24364:2018-05 Result: Test passed Degree of protection (IP code) Specification: IEC 60529:1989-11 + AMD1:1999-11 + AMD2:2013-08 Result, degree of protection, IP code: IP66/IP68 (2m/24h) Ambient conditions Degree of protection: IP66/IP67 Max. NEMA code to attain: 6 Impact strength: IK08 Ambient temperature (operation): -40°C ... 100°C Ambient temperature (storage/transport): -40°C ... 100°C |
PCB data | Number of PCB holders: 1 Thickness of the PCB: 1.57 mm ... 2.36 mm |
Mounting | Mounting type: Wall or panel mount. Pole mount with accessory. |
ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190601 |
ETIM | ETIM 9.0: EC001031 |
UNSPSC | UNSPSC 21.0: 31261500 |
