Industrial Automation

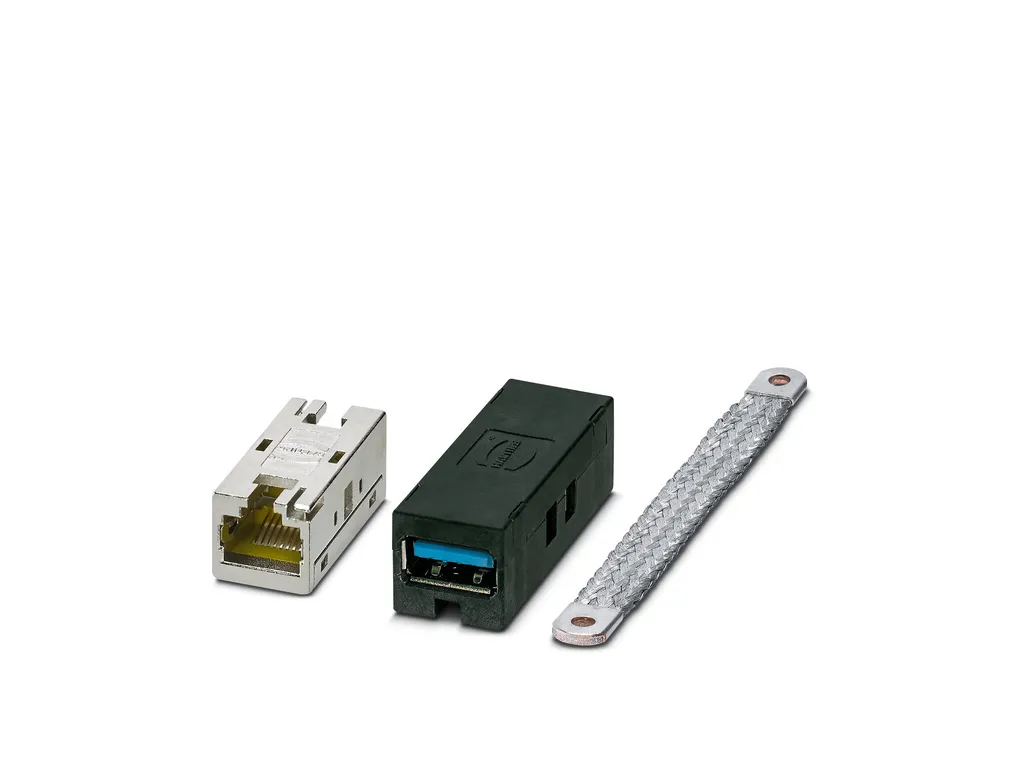

VS-GC-RJ456A-BUBU - Connector
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product type: Data front plate Number of positions: 8 Shielded: yes |
Electrical properties | Rated voltage (III/3): max. 30 VAC (RJ45) Rated current: max. 175 mA (RJ45) Nominal current IN: max. 175 mA (RJ45) Transmission speed: 10 Gbps |
Dimensions | Width: 15.6 mm Height: 34.4 mm Length: 13.2 mm |
Material specifications | Material: Die-cast zinc |
Mechanical properties | Mechanical data Insertion/withdrawal cycles: >= 750 (RJ45) |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C |
ECLASS | ECLASS-11.0: 27440102 ECLASS-12.0: 27440116 ECLASS-13.0: 27440116 |
ETIM | ETIM 8.0: EC002635 |
UNSPSC | UNSPSC 21.0: 39121400 |
