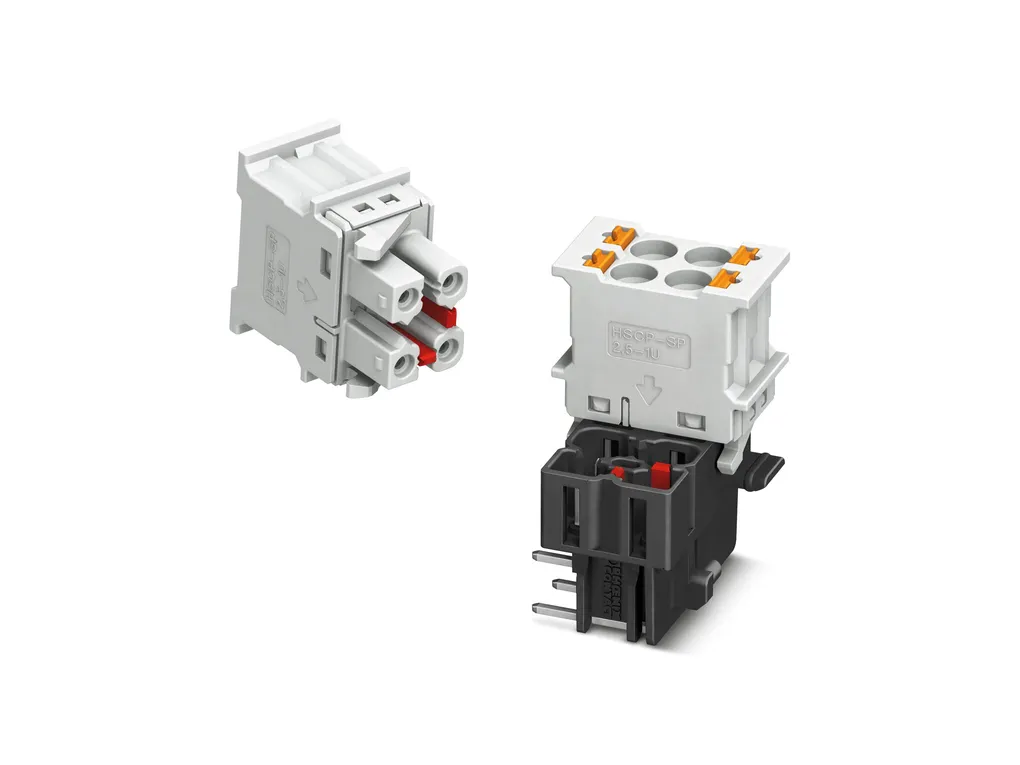

HSCP-SP 1,5-1U6-000/000-7035 - Printed-circuit board connector
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product type: PCB connector Product family: HSCP-SP 1,5-.. Number of positions: 6 Pitch: 3.45 mm Number of rows: 2 |
Electrical properties | Nominal current IN: 8 A Nominal voltage UN: 160 V Degree of pollution: 3 Rated voltage (III/3): 63 V Rated surge voltage (III/3): 2.5 kV Rated voltage (III/2): 160 V Rated surge voltage (III/2): 2.5 kV Rated voltage (II/2): 160 V Rated surge voltage (II/2): 2.5 kV |
Connection data | Connection technology Connector system: HSC 1,5 Nominal cross section: 1.5 mm² Contact connection type: Socket Interlock Locking type: without Mounting flange: without Conductor connection Connection method: Push-in spring connection Conductor/PCB connection direction: 0° Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1.5 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 1 mm² Cylindrical gauge a x b / diameter: 2.4mmx1.5mm / - Stripping length: 8 mm Specifications for ferrules without insulating collar recommended crimping tool: 1212034 CRIMPFOX 6 ferrules without insulating collar, according to DIN46228â1: Cross section:0.25 mm²; Length: 8 mm ... 10 mm Cross section:0.34 mm²; Length: 8 mm ... 10 mm Cross section:0.5 mm²; Length: 8 mm ... 10 mm Cross section:0.75 mm²; Length: 8 mm ... 10 mm Cross section:1 mm²; Length: 8 mm ... 10 mm Cross section:1.5 mm²; Length: 10 mm Specifications for ferrules with insulating collar recommended crimping tool: 1212034 CRIMPFOX 6 ferrules with insulating collar, according to DIN46228â4: Cross section:0.25 mm²; Length: 8 mm ... 10 mm Cross section:0.34 mm²; Length: 8 mm ... 10 mm Cross section:0.5 mm²; Length: 10 mm Cross section:0.75 mm²; Length: 10 mm Cross section:1 mm²; Length: 10 mm |
Material specifications | Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: Tin-plated Material data - housing Color (Housing): light grey (7035) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Glow wire flammability index GWFI according to EN60695-2-12: 850 Glow wire ignition temperature GWIT according to EN60695-2-13: 775 Temperature for the ball pressure test according to EN60695-10-2: 125°C Material data â actuating element Insulating material: PBT Insulating material group: IIIa CTI according to IEC 60112: 275 Flammability rating according to UL 94: V0 |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e1234e2392bde14688da8fe58a63c0c9/-S204x204-FJPG Pitch: 3.45 mm Width [w]: 18.8 mm Height [h]: 10.9 mm Length [l]: 21.6 mm |
Mounting | Processing notes Moisture Sensitive Level: MSL 1 Classification temperature Tc: 260°C Solder cycles in the reflow: 3 |
Notes | Assembly instruction:: Refer to the data sheet for the range in the download area. Safety note Safety note: WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. ⢠WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. ⢠WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. ⢠The item is intended to be an unencapsulated plug for installation in a housing. ⢠Operate the connector only when it is fully plugged in. |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 105°C (dependent on the derating curve) Ambient temperature (storage/transport): -40°C ... 55°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C |
Electrical tests | Air clearances and creepage distances | Specification: IEC 60664-1:2007-04 Insulating material group: I Comparative tracking index (IEC 60112): CTI 600 Rated insulation voltage (III/3): 63 V Rated surge voltage (III/3): 2.5 kV minimum clearance value - non-homogenous field (III/3): 1.5 mm minimum creepage distance (III/3): 1.6 mm Rated insulation voltage (III/2): 160 V Rated surge voltage (III/2): 2.5 kV minimum clearance value - non-homogenous field (III/2): 1.5 mm minimum creepage distance (III/2): 1.6 mm Rated insulation voltage (II/2): 160 V Rated surge voltage (II/2): 2.5 kV minimum clearance value - non-homogenous field (II/2): 1.5 mm minimum creepage distance (II/2): 1.6 mm |
Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
ECLASS | ECLASS-11.0: 27460202 ECLASS-12.0: 27460202 ECLASS-13.0: 27460202 |
ETIM | ETIM 9.0: EC002638 |
UNSPSC | UNSPSC 21.0: 39121400 |
