SACC-CIP-M8FSD-4P SMD SH R32 - Contact carrier
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
Product properties | Product type: Contact insert Sensor type: Ethernet/PROFINET Number of positions: 4 Application: Data/signal Seal present: yes Shielded: yes Coding: D Thread type: M8 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
Electrical properties | Rated surge voltage: 1.5 kV Contact resistance: ⤠3 mé Insulation resistance: ⥠100 Mé Nominal voltage UN: 50 VAC 60 VDC Nominal current IN: 4 A Transmission characteristics (category): CAT5 (IEC 11801:2002) |
Interfaces | Signal type/category: Ethernet/PROFINET CAT5, 100 Mbps |
Material specifications | Flammability rating according to UL 94: V0 Seal material: FKM Contact material: CuZn Contact surface material: Au Contact carrier material: PA |
Connector | Connection 1 Head design: Socket Head cable outlet: straight Head thread type: M8 Coding: D |
Cable/line | Signal type/category: Ethernet/PROFINET CAT5, 100 Mbps |
Mechanical properties | Mechanical data Insertion/withdrawal cycles: > 100 |
Environmental and real-life conditions | Ambient conditions Degree of protection (when plugged in): IP67 (correctly plugged in and locked) Degree of protection: IP67 (correctly plugged in and locked) IP67 Ambient temperature (operation): -25°C ... 105°C -40°C ... 105°C (without mechanical actuation) |
Standards and regulations | M8 Standard designation: M8 connector Standards/specifications: IEC 61076-2-114 Note: In line with |
Mounting | Mounting type: PCB mounting Connection method: SMD reflow |

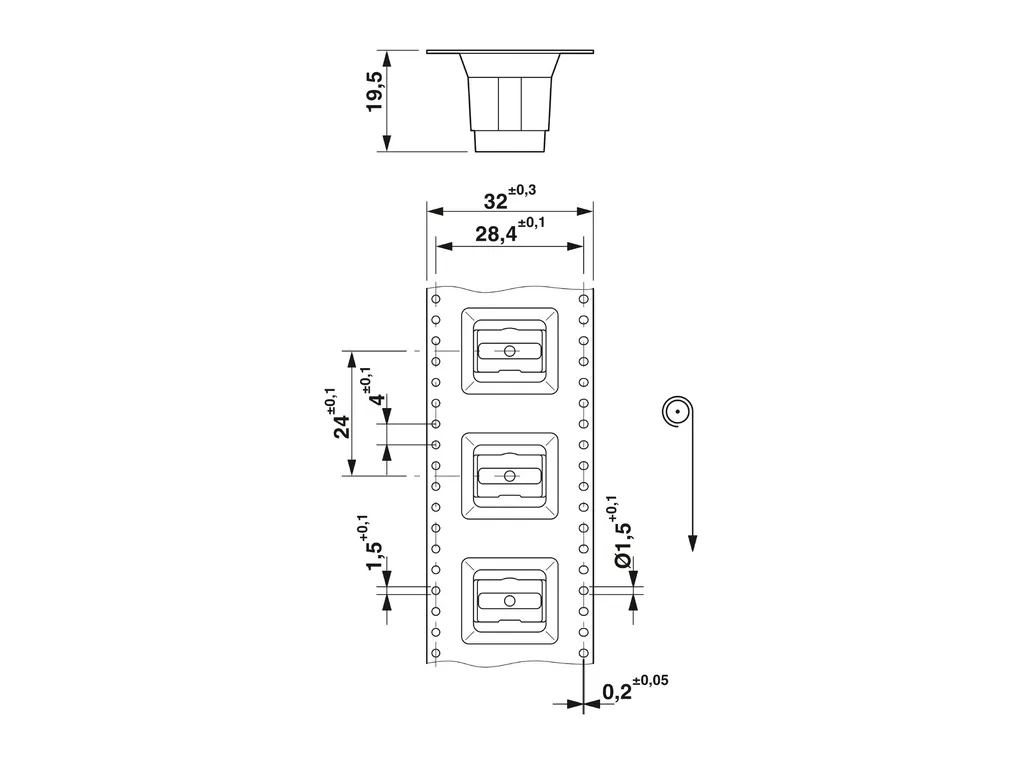

Packaging specifications | Type of packaging: Belt |
ECLASS | ECLASS-11.0: 27440109 ECLASS-12.0: 27440109 ECLASS-13.0: 27440109 |
ETIM | ETIM 8.0: EC003569 |
UNSPSC | UNSPSC 21.0: 39121400 |
