PHOENIX CONTACT 1068813
PHOENIX CONTACTNot available

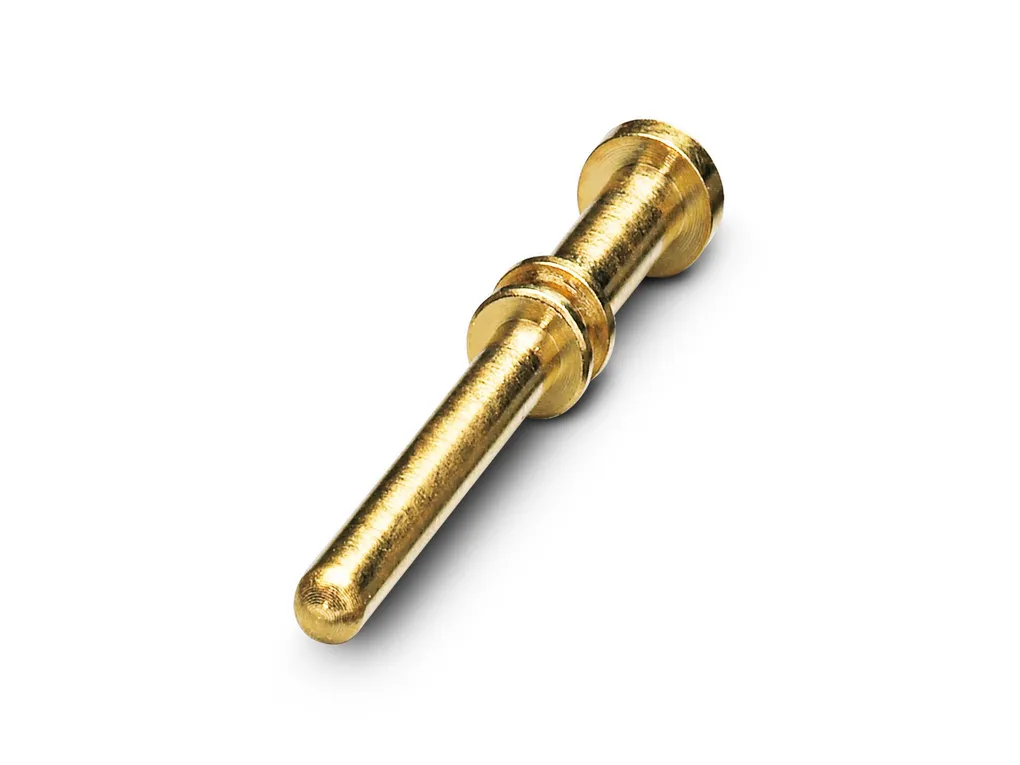

SF-7PP2000/VPE 500 - Crimp contact

Crimp contact, Pin, turned, contact diameter: 2 mm, crimp range: 0.25 mm2 ... 1 mm2, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1238253
Product Code: 1068813
Partner cod.: 1068813
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Download
Tecnichal data
MountingConnection method: Crimp connection
Product propertiesProduct type: Crimp contact
Contact material type: turned
Connection dataConnection method: Crimp connection
Contact connection type: Pin
Conductor cross section: 0.25 mm² ... 1 mm²
Material specificationsContact surface: Nickel-plated (Ni), with gold coating (Au)
Contact material: CuZn
DimensionsMechanical characteristics
Contact diameter: 2 mm
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: 100
Technical Specs
ECLASSECLASS-11.0: 27440204
ECLASS-12.0: 27440204
ECLASS-13.0: 27440204
ETIMETIM 9.0: EC000796
UNSPSCUNSPSC 21.0: 39121100
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_06187.pdf

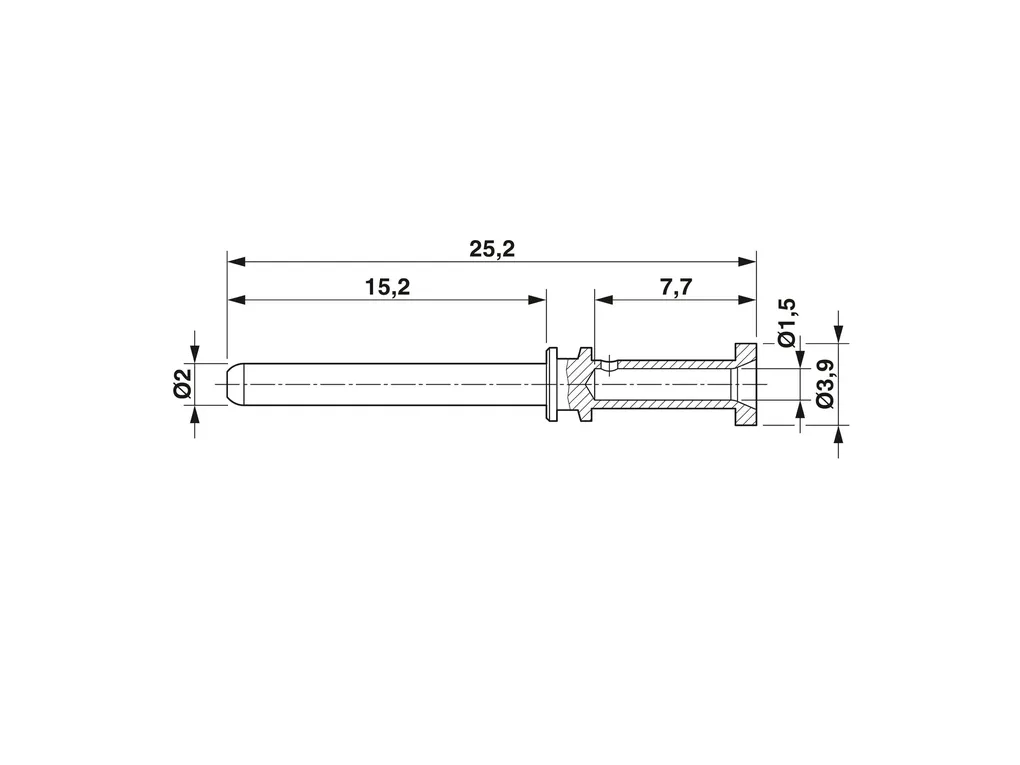

Technical_drawing_07248.pdf
