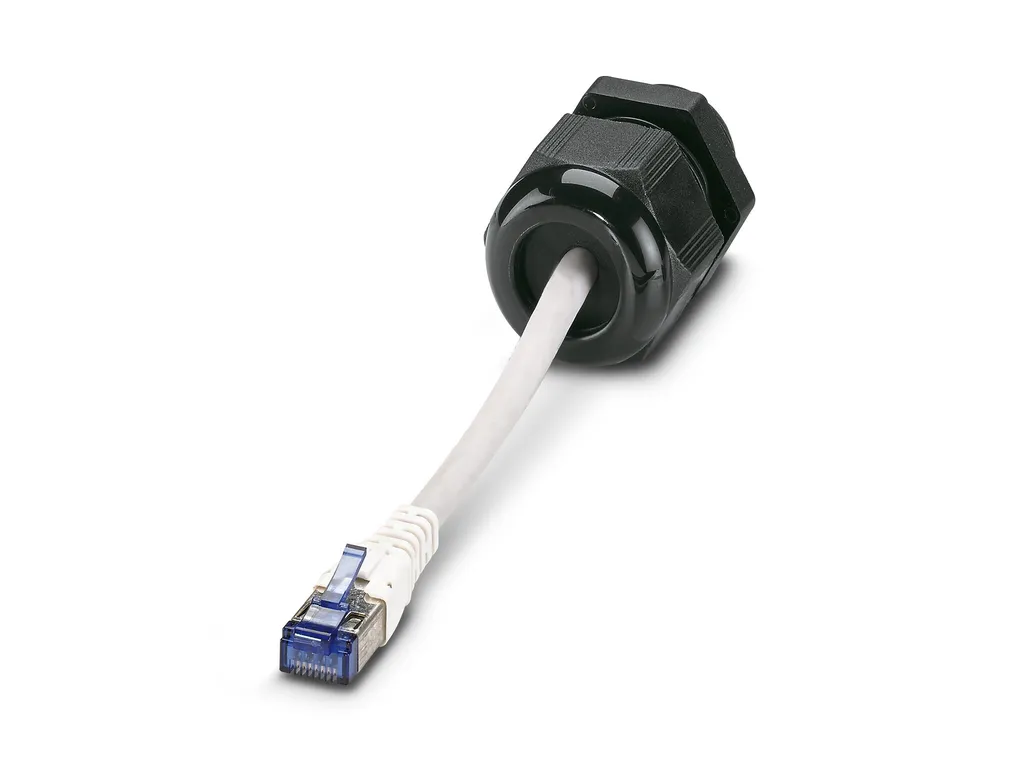

G-CCS-M25-M66N-PNES-BK - Cable gland
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Mounting | Assembly instructions: 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque Clear width 18.2mm |
Product properties | Product type: Full screw connection No. of conductors: 1 Manufacturer: BIMED Manufacturer Designation: BMRJ-26 Shielded: no |
Dimensions | Dimensional drawing: https://caas.production.phoenixcontact.coremedia.cloud/caas/v1/stable/media/22634/full/b250?format=jpg Length: 47 mm Length of the connecting thread: 10 mm Hole diameter: 25.1 mm ... 25.2 mm Wrench size, union nut: 33 mm Wrench size, support: 33 mm Hexagon angular dimension: 37.4 mm Thread type connection side: M25 x 1.5 Thread pitch: 1.5 mm |
Connection data | Tightening torque: 5 Nm ... 7.5 Nm (Union nut: EN 62444) 3.5 Nm (Support: EN 62444) |
Material specifications | Flammability rating according to UL 94: V2 Seal material Cable seal: CR Material for screw connection: PA |
Cable/line | External cable diameter (Cable 1): 3 mm ... 7 mm |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Ambient temperature (operation): -20°C ... 100°C (static) |
ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
ETIM | ETIM 9.0: EC000441 |
UNSPSC | UNSPSC 21.0: 39121300 |
