1087079 PHOENIX CONTACT - Technology Bsa

Tecnichal data

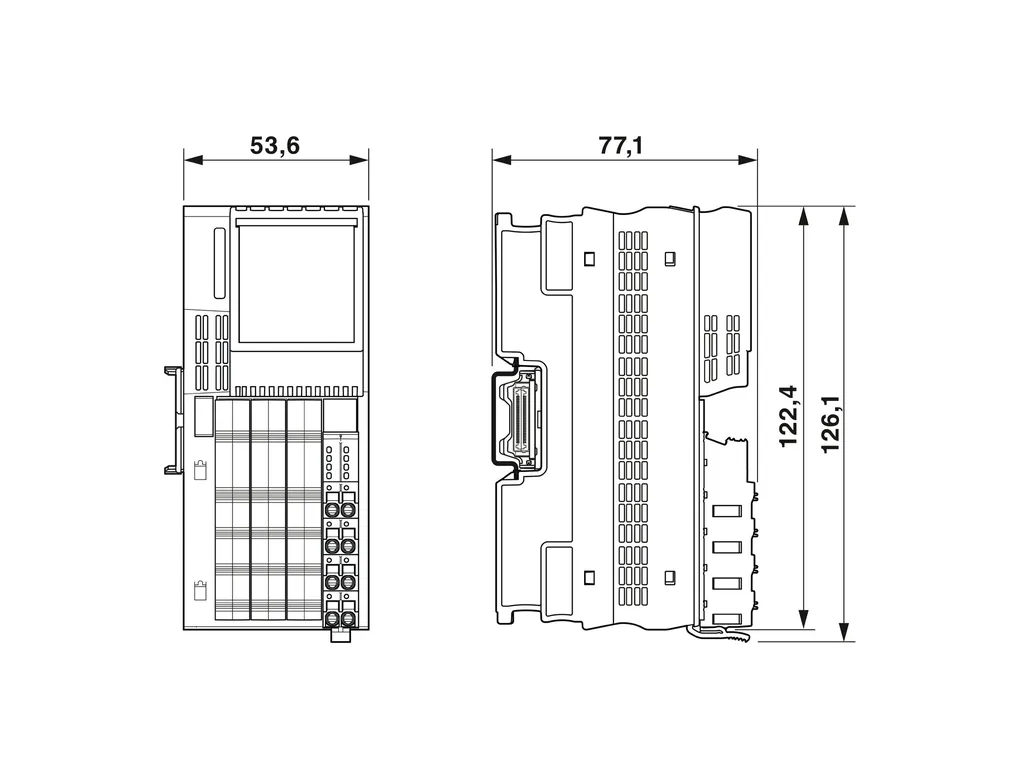

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/d8e975a53705df4b84bb84f39d8f66c1/-S204x204-FJPG Width: 53.6 mm Height: 126.1 mm Depth: 77.14 mm Note on dimensions: The depth applies when a TH35-7.5 DIN rail is used (in accordance with EN60715).
Notes	Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area Utilization restrictionÃ¢ CCCex note: Use in potentially explosive areas is not permitted in China.
Material specifications	Color: traffic grey A RAL 7042
Interfaces	Axioline P local bus Connection method: Bus base module Transmission speed: 100 Mbps
Output data	Analog Output name: Analog outputs Connection method: Push-in connection Connection technology: 2-conductor Note regarding the connection technology: shielded, twisted pair Number of outputs: 4 (HART) Current output signal: 0 mA ... 20 mA 4 mA ... 20 mA
Product properties	Type: block modular Product type: I/O component Product family: Axioline P Mounting position: any (no temperature derating) Scope of delivery: including bus base module and connectors Insulation characteristics Overvoltage category: II Pollution degree: 2
Electrical properties	Potentials: Supply of the logic voltage U Supply voltage range: 19.2 VDC ... 30 VDC (via bus base module (U_L) at AXLPBK...) Potentials: Supply of the AxiolineP local bus U Supply voltage: 5 VDC (via bus base module) Current draw: max. 135 mA Potentials: Axioline P extension module supply voltage Supply voltage: U_L (via bus base module) Current draw: max. 160 mA (via bus base module) Electrical isolation/isolation of the voltage ranges Test voltage: 5V supply of the local bus (U_Bus) / functional ground: 500 VAC, 62 Hz, 1 min. Test voltage: 24V supply (I/O) / functional ground: 500 VAC, 62 Hz, 1 min. Test voltage: Field to functional earth: 500 VAC, 62 Hz, 1 min. Test voltage: Field to 5V and 24V supplies: 1500 VAC, 62 Hz, 1 min.
Connection data	Connection technology Connection name: Axioline P connector Note on the connection method: Please observe the information provided on conductor cross sections in the Ã¢AxiolineP: system and installationÃ¢ user manual. Conductor connection Connection method: Push-in connection Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm Axioline P connector Connection method: Push-in connection Note on the connection method: Please observe the information provided on conductor cross sections in the Ã¢AxiolineP: system and installationÃ¢ user manual. Conductor cross section, rigid: 0.2 mm² ... 1.5 mm² Conductor cross section, flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C (Standard) Air pressure (operation): 70 kPa ... 106 kPa (up to 2000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 2000m above sea level) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing)
Standards and regulations	Protection class: III (IEC 61140, EN61140, VDE0140-1)
Approvals	ATEX Identification: II 3G Ex ec IIC T4 Gc Certificate: DEMKO 20 ATEX 2334X IECEx Identification: Ex ec IIC T4 Gc Certificate: IECEx UL 20.0002X UKCAEx(UKEX) Identification: II 3G Ex ec IIC T4 Gc Certificate: PxCAI22UKEx1052416X Ex data UL, USA / Canada: Class I, Div. 2, Groups A, B, C, D T4
Mounting	Mounting type: DIN rail mounting Mounting position: any (no temperature derating)

Technical Specs

ECLASS	ECLASS-11.0: 27242601 ECLASS-12.0: 27242601 ECLASS-13.0: 27242601
ETIM	ETIM 9.0: EC001596
UNSPSC	UNSPSC 21.0: 32151600

Description

Axioline P, Analog output module, Analog outputs: 4 (HART), 0 mA ... 20 mA, 4 mA ... 20 mA, connection method: 2-wire, transmission speed in the local bus: 100 Mbps, HART functionality, degree of protection: IP20, including bus base module and connectors
