EV-T2G3PC-1AC32A-5,0M6,0ESBK11 - AC charging cable

CHARX connect comfort, Mobile AC charging cable, with vehicle charging connector and infrastructure charging plug, for charging electric vehicles (EV) with alternating current (AC) via type2 vehicle charging inlets, with protective cap, Type2, IEC62196-2, 32 A / 250 V (AC), PHOENIXCONTACT logo, cable: 5 m, black, straight

Product Code: 1097306

Partner cod.: 1097306

PHOENIX CONTACT

Product properties	Product type: AC charging cable Product family: CHARX connect comfort Application: for charging electric vehicles (EV) with alternating current (AC) via type2 vehicle charging inlets compatible with type 2 infrastructure charging sockets at charging stations for electromobility (EVSE) Type: Mobile AC charging cable with vehicle charging connector and infrastructure charging plug Design: with protective cap Affixed logo: PHOENIXCONTACT logo Charging mode: Mode 3, Case B Charging standard: Type2
Electrical properties	Type of signal transmission: Pulse width modulation Note on the connection method: Crimp connection, cannot be disconnected Coding: 220Ã© (between PE and PP) Type of charging current: AC single-phase Charging power: 8 kW Charging current: 32 A Power contact Number: 3 (L1, N, PE) Rated voltage: 250 VAC Rated current: 32 A Signal contact Number: 2 (CP, PP) Rated voltage: 30 VAC Rated current: 2 A

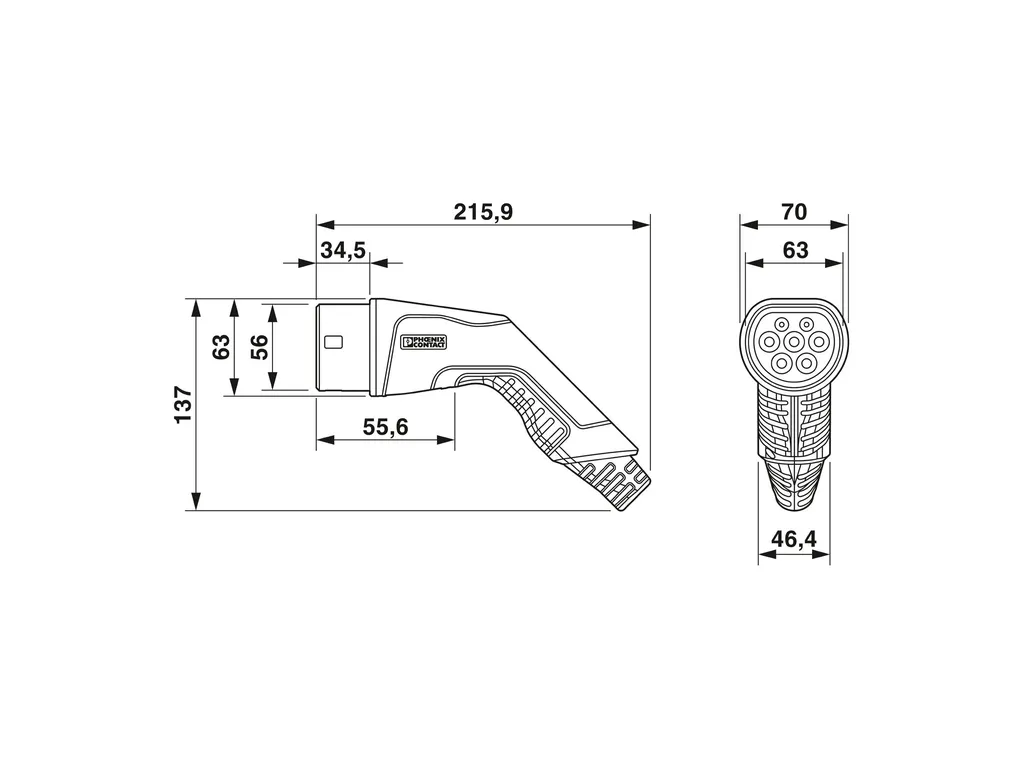

Dimensions	Infrastructure charging plug Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/accd7336c08a93498e8cef6ff5d9710a/-S204x204-FJPG Width: 58 mm Height: 131.8 mm Depth: 233.4 mm Vehicle charging connector Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/cea390ff2494d047942aec543a15d9d1/-S204x204-FJPG Width: 70 mm Height: 137 mm Depth: 215.9 mm
Material specifications	Color (Housing): black (9005) Color (Handle area): black (9005) Color (Mating face): black (9005) Color (Protective cap): black (9005) Color (Cable): black (9005) Material (Vehicle charging connector): Plastic Material (Infrastructure charging plug): Plastic Material (Cable outer sheath): TPE-U Material (Contact surface): Silver
Cable/line	Cable length: 5 m Wiring standards/regulations: prEN50620/DINEN50620 Wiring certifications: VDE Cable weight: max. 305 kg/km Cable type: Class 5 straight Cable structure: 3x4.0mm²+1x0.5mm² External cable diameter: 11.5 mm ±0.3mm Outer sheath, material: TPE-U Cable resistance: Ã¢¤ 0.0033 Ã©/m (based on a power core, at an ambient temperature of 20°C) Bending radius: min. 96 mm (7.5x diameter)
Mechanical properties	Mechanical data Insertion/withdrawal cycles: > 10000 Insertion force: < 100 N Withdrawal force: < 100 N
Environmental and real-life conditions	Ambient conditions Degree of protection (Vehicle charging connector): IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) Degree of protection (Infrastructure charging plug): IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) Degree of protection (Protective cap): IP54 Ambient temperature (operation): -40°C ... 50°C Ambient temperature (storage/transport): -40°C ... 80°C Altitude: 5000 m (above sea level)
Standards and regulations	Standards Standards/regulations: IEC 62196-2
