| Notes | General: Strip 21 mm off the cable sheath, strip 6 mm off the conductor insulation, crimp the ferrule, then shorten this to 5 mm. Conductor length with shortened ferrule: 20 mm. Connect conductors and tighten the mounting screws with 0.2 Nm. NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. |
| Mounting | Connection method: Screw connection |
| Product properties | Product type: Circular connector (cable-side) Number of positions: 4 Application: Power supply No. of cable outlets: 1 Shielded: no Coding: S Cable outlet: straight Pg screw connection: Pg9 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |

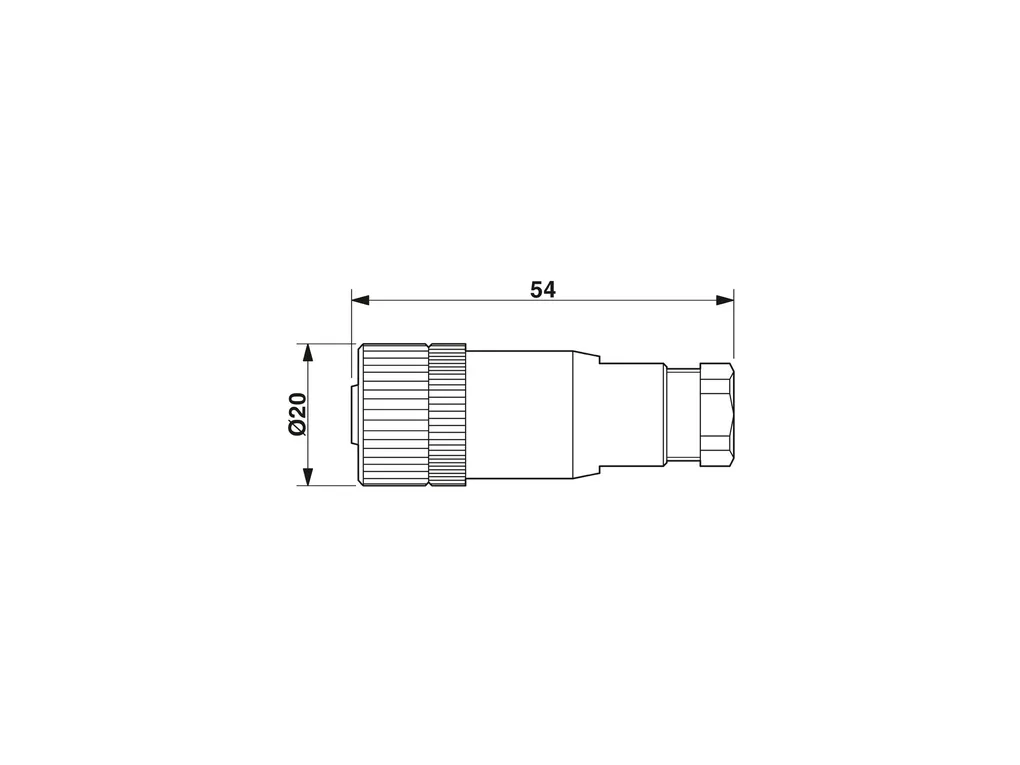

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4b82be62a509e0459340670582d09186/-S204x204-FJPG Length: 54 mm Wrench size, union nut: 16 mm External dimensions Outside diameter: 6 mm ... 8 mm Housing Diameter housing: 20 mm |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: Viton NBR Material of grip body: PA Contact material: CuZn Contact surface material: Au Contact carrier material: PA Material for screw connection: Zinc die-cast, nickel-plated |
| Connection data | Conductor connection Connection method: Screw connection Connection cross section: 0.75 mm² ... 1.5 mm² (with ferrule) 0.75 mm² ... 2.5 mm² (solid) Connection cross section AWG: 18 ... 16 (with ferrule) Stripping length of the individual wire: 5 mm Tightening torque: 0.4 Nm (M12 knurl) 0.8 Nm ... 1 Nm (Pressure screw with sleeve housing) 0.4 Nm (Screw plug insert with sleeve housing as far it will go) 0.2 Nm (Screw terminal blocks) |
| Electrical properties | Rated surge voltage: 6 kV Contact resistance: ⤠5 mé Insulation resistance: > 10 Gé Nominal voltage UN: 630 VAC Nominal current IN: 12 A (when using 1.5 mm² conductors) 12 A (at 40°C) |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠100 |
| Connector | Connection 1 Head design: Socket Head cable outlet: straight Head thread type: M12 Coding: S |
| Cable/line | Stripping length of the individual wire: 5 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -40°C ... 85°C (Plug / socket) |
| Standards and regulations | M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-111 |
| ECLASS | ECLASS-11.0: 27440102 ECLASS-12.0: 27440116 ECLASS-13.0: 27440116 |
| ETIM | ETIM 8.0: EC002635 |
| UNSPSC | UNSPSC 21.0: 39121400 |
