Notes | General Note: LABS release â in accordance with test specification VWPV3.10.7:2005-0 When connecting the conductor, make sure that the CAPAROC modules are not pulled apart due to tensile force. Gaps must not be created between the modules. |
Product properties | Product type: Device circuit breakers Product family: CAPAROC Number of slots: 2 Insulation characteristics Protection class: III Pollution degree: 2 |
Electrical properties | General Operating voltage: 10 VDC ... 30 VDC Rated voltage: 12 VDC 24 VDC Rated current IN: 45 ADC (Total current input) Rated surge voltage: 0.5 kV Tripping method: E (electronic) Dielectric strength: 35 VDC (Load circuit) Efficiency: > 99 % Closed circuit current I0: typ. 9 mA (no load at 24V) Power dissipation: typ. 0.22 W (no load at 24V) < 1.5 W (in nominal operation at 24V and 45A) Temperature derating: 45 A (Total current at40°C) 30 A (Total current at 65°C) MTBF (IEC 61709, SN 29500): 18886912.65 h (at 25°C with 21% load) 5907048.64 h (at40°C with 34.25%load) 933563.97 h (at40°C with 100%load) Voltage drop: 0.03 V (at 45A) Reset Input voltage range: 7 VDC ... 30 VDC (Reset with falling edge) Current consumption: typ. 0.5 mA (at 24 V DC) Pulse length: ⥠50 ms Stripping length: 8 mm Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.2 mm² ... 0.75 mm² Conductor cross section flexible, with ferrule without plastic sleeve: 0.2 mm² ... 1.5 mm² Status output Output voltage: max. 30 VDC (Input voltage±5% in the event of no error) 0 VDC (Error) Output current: max. 20 mA Stripping length: 8 mm Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.2 mm² ... 0.75 mm² Conductor cross section flexible, with ferrule without plastic sleeve: 0.2 mm² ... 1.5 mm² Status outputâ Output voltage: max. 30 VDC (Input voltage±5% when I>80%at at least one channel) Output current: max. 20 mA Stripping length: 8 mm Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.2 mm² ... 0.75 mm² Conductor cross section flexible, with ferrule without plastic sleeve: 0.2 mm² ... 1.5 mm² |
Connection data | Main circuit IN+ Connection method: Push-in connection Stripping length: 18 mm Conductor cross section rigid: 0.5 mm² ... 16 mm² Conductor cross section AWG: 20 ... 8 Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.5 mm² ... 16 mm² Conductor cross section flexible, with ferrule without plastic sleeve: 0.5 mm² ... 16 mm² Main circuit IN- Connection method: Push-in connection Stripping length: 18 mm Conductor cross section rigid: 0.5 mm² ... 16 mm² Conductor cross section AWG: 20 ... 8 Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.5 mm² ... 16 mm² Conductor cross section flexible, with ferrule without plastic sleeve: 0.5 mm² ... 16 mm² |
Signaling | Power (PWR) LED green: lit (with no channel errors) lit (Supply voltage in the nominal range) flashing (3x on deactivation of programming lock) Power (PWR) LED red: lit (Supply voltage outside the nominal range) |

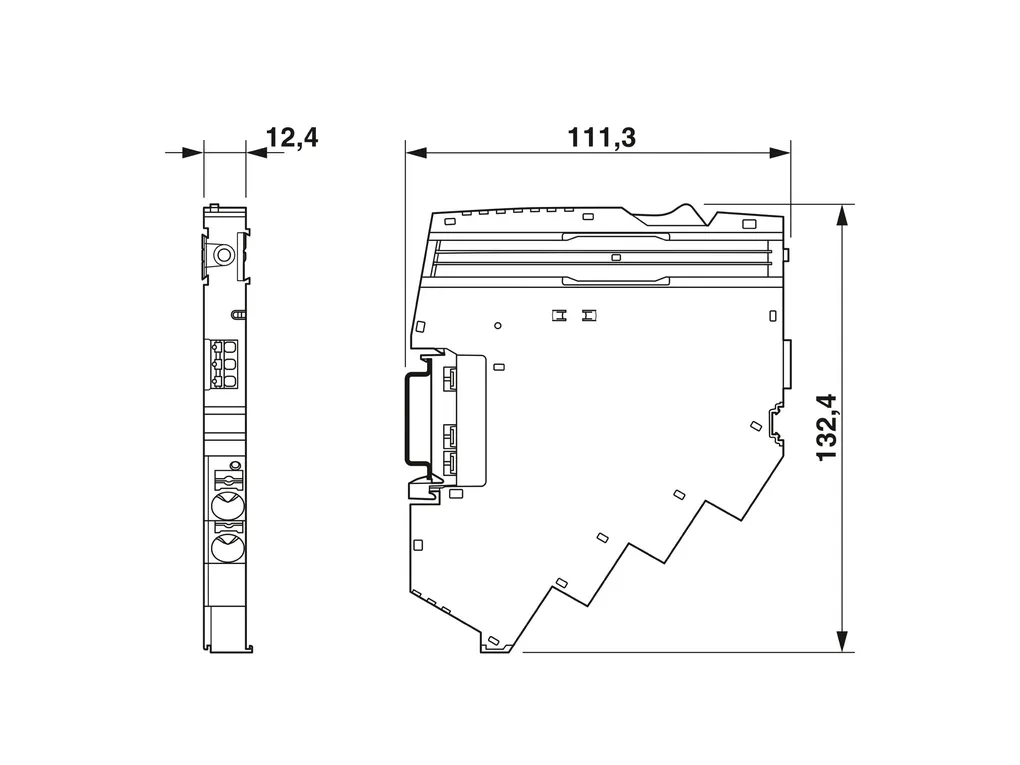

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3ced5a3a44f3524a884d85a64ccfc6c8/-S204x204-FJPG Width: 12.4 mm Height: 132.4 mm Depth: 111.3 mm (incl. DIN rail 7.5mm) |
Material specifications | Material: PA 6 PC Flammability rating according to UL 94: V-0 |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -30°C ... 65°C Ambient temperature (storage/transport): -40°C ... 70°C Altitude: ⤠4000 m (amsl) Humidity test: 96h, 95%RH, 40°C Shock (operation): 30g (11 ms period, half-sine shock pulse, according to IEC 60068-2-27) 25g (6ms duration, half-sine shock pulse in accordance with IEC 60068-2-27, continuous shock) Vibration (operation): 5g (10 ... 150Hz / 10cycles / axis / X,Y,Z) |
Approvals | UL approval Identification: UL/C-UL Listed UL 508 UL 121201 Class I, Division 2, Groups A, B, C, D, T4A |
Standards and regulations | Standards/specifications: EN61000-6-2 EN61000-6-3 EN60068-2-78 EN50178 EN60068-2-6 EN60068-2-27 Note: EMC â Immunity for industrial areas EMC â Emission for residential, business and commercial properties and small operations Environmental influences â Moisture and heat, constant Equipping power installations with electronic equipment Environmental influences â Vibrations (sinusoidal) Environmental influences â Shocks |
Mounting | Mounting type: pluggable onto CAPAROC CR⦠current rail |
