CAPAROC PM IOL - Power module
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product type: Device circuit breakers Product family: CAPAROC Number of slots: 2 Insulation characteristics Protection class: III Pollution degree: 2 |
Electrical properties | General Operating voltage: 10 VDC ... 30 VDC Rated voltage: 12 VDC 24 VDC Rated current IN: 45 ADC (Total current input) Tripping method: E (electronic) Feedback resistance: max. 35 VDC Dielectric strength: 35 VDC (Load circuit) Efficiency: > 99 % Closed circuit current I0: typ. 12 mA (no load at 24V) Power dissipation: typ. 0.27 W (no load at 24V) < 1.5 W (in nominal operation at 24V and 45A) Temperature derating: 45 A (Total current at40°C) 30 A (Total current at 65°C) MTBF (IEC 61709, SN 29500): 13826266.85 h (at 25°C with 21% load) 5534344.72 h (at40°C with 34.25%load) 687502.35 h (at65°C with 100%load) Voltage drop: 5 mV (at 10 A) Reset Current consumption: typ. 0.5 mA (at 24 V DC) Pulse length: ⥠50 ms |
Connection data | Main circuit IN+ Connection method: Push-in connection Stripping length: 18 mm Conductor cross section rigid: 0.5 mm² ... 16 mm² Conductor cross section AWG: 20 ... 8 Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.5 mm² ... 16 mm² Conductor cross section flexible, with ferrule without plastic sleeve: 0.5 mm² ... 16 mm² Main circuit IN- Connection method: Push-in connection Stripping length: 18 mm Conductor cross section rigid: 0.5 mm² ... 16 mm² Conductor cross section AWG: 20 ... 8 Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.5 mm² ... 16 mm² Conductor cross section flexible, with ferrule without plastic sleeve: 0.5 mm² ... 16 mm² IO-Link Connection method: Push-in connection Stripping length: 8 mm Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.2 mm² ... 0.75 mm² Conductor cross section flexible, with ferrule without plastic sleeve: 0.2 mm² ... 1.5 mm² |
Interfaces | IO-Link Interface type: IO-Link Specification: V1.1 Reverse polarity protection: yes Transmission speed: 230.4 kbps (COM3) Cycle Time: min. 20 ms Amount of process data: 8 Byte (Input data) 3 Byte (Output data) Nominal voltage for I/O supply: 24 VDC Current consumption: typ. 30 mA (IO-Link L+) IO-Link Vendor ID: 176dec, 00 B0hex |
Signaling | IO-Link LED off: off (No communication) IO-Link LED green: flashing (IO-Link connection exists) Power (PWR) LED green: lit (Supply voltage OK) Power (PWR) LED red: lit (Supply voltage outside the nominal range) flashing (System topology changed) |

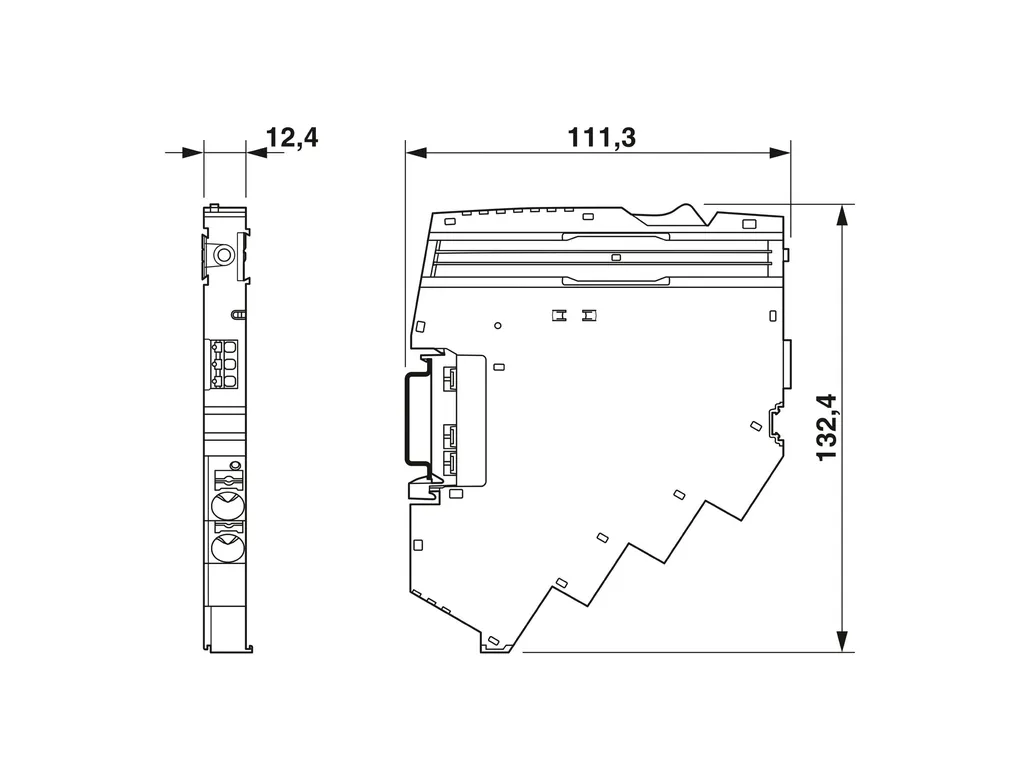

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3ced5a3a44f3524a884d85a64ccfc6c8/-S204x204-FJPG Width: 12.4 mm Height: 132.4 mm Depth: 111.3 mm (incl. DIN rail 7.5mm) |
Material specifications | Material: PA 6 PC Flammability rating according to UL 94: V-0 |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -30°C ... 65°C Ambient temperature (storage/transport): -40°C ... 70°C Altitude: ⤠4000 m (amsl) Humidity test: 96h, 95%RH, 40°C Shock (operation): 30g (11 ms period, half-sine shock pulse, according to IEC 60068-2-27) 25g (6ms duration, half-sine shock pulse in accordance with IEC 60068-2-27, continuous shock) Vibration (operation): 5g (10 ... 150Hz / 10cycles / axis / X,Y,Z) |
Approvals | UL approval Identification: UL/C-UL Listed UL 508 |
Standards and regulations | Standards/specifications: EN61000-6-2 EN61000-6-3 EN60068-2-78 EN50178 Note: EMC â Immunity for industrial areas EMC â Emission for residential, business and commercial properties and small operations Environmental influences â Moisture and heat, constant Equipping power installations with electronic equipment |
Mounting | Mounting type: pluggable onto CAPAROC CR⦠current rail |
ECLASS | ECLASS-11.0: 27140401 ECLASS-12.0: 27140401 ECLASS-13.0: 27140401 |
ETIM | ETIM 9.0: EC003538 |
UNSPSC | UNSPSC 21.0: 39121400 |
