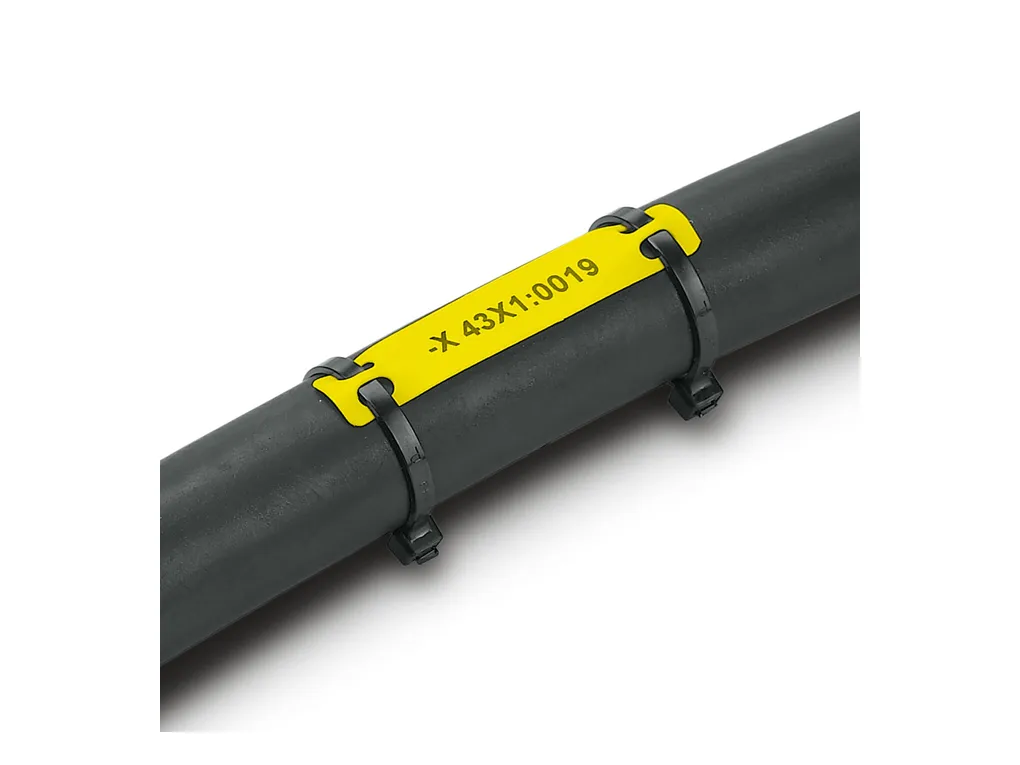

| Product properties | Product type: Conductor marking Marking Number of individual labels: 50 Number of individual labels per row: 1 Identification technology: Thermal transfer |
| Dimensions | Width: 60 mm Length: 11.55 mm Material strength: 0.45 mm External dimensions Outside diameter: ⥠6 mm |
| Material specifications | Color: yellow/black Material: PUR Flammability rating according to UL 94: HB Components: free from silicone, halogen, and cadmium |
| Cable/line | External cable diameter: 6 mm ... 115 mm |
| Environmental and real-life conditions | Test for substances that would hinder coating with paint or varnish Result: Test passed Test for substances that would hinder coating with paint or varnishâ Result: Test passed Scratch test for the determining scratch resistance Specification: DINENISO1518-1:2019-10 (following) Requirements: â¥5N Result: Test passed Tesafilm test Specification: DINENISO2409:2013 (following) Result: Test passed UV resistance Specification: ISO4892-2:2013-03 (following) Result: Test passed Test duration: 96 h Temperature resistance Specification: ANSI/UL969-2018:03 (following) Test duration: 240 h Rating 100°C (121°C): Test passed Wipe resistance of inscriptions Specification: DINEN61010-1 (VDE0411-01):2020-03 DINEN62208 (VDE0660-511):2012-06 (in parts) ISO175:2010 (following) Test duration: 168 h Diesel [CAS No. 68476-34-6]: Test passed IRM 901: Test passed IRM 902: Test passed Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DIN50018:2013-05 Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Salt spray test Specification: DINEN60068-2-11:2000-02 Result: Test passed Test duration: 96 h Ambient conditions Ambient temperature (operation): -25°C ... 80°C Recommended ambient temperature (storage/transport): 23°C Recommended humidity (storage/transport): 50 % (Storage in a dry and dark place in the original packaging is recommended) Shelf life: 2years |
| Standards and regulations | Wipe resistance: DINEN61010-1 (VDE0411-1) |
| Mounting | Mounting type: Assembly with cable ties |
| ECLASS | ECLASS-11.0: 27281102 ECLASS-12.0: 27281102 ECLASS-13.0: 27281102 |
| ETIM | ETIM 9.0: EC001530 |
| UNSPSC | UNSPSC 21.0: 39131500 |
