Notes | General: Individual milling possible. Refer to the data sheet for the range in the download area. The Rth diagram shows the application, free-hanging (vertical) in the direction of flow. |

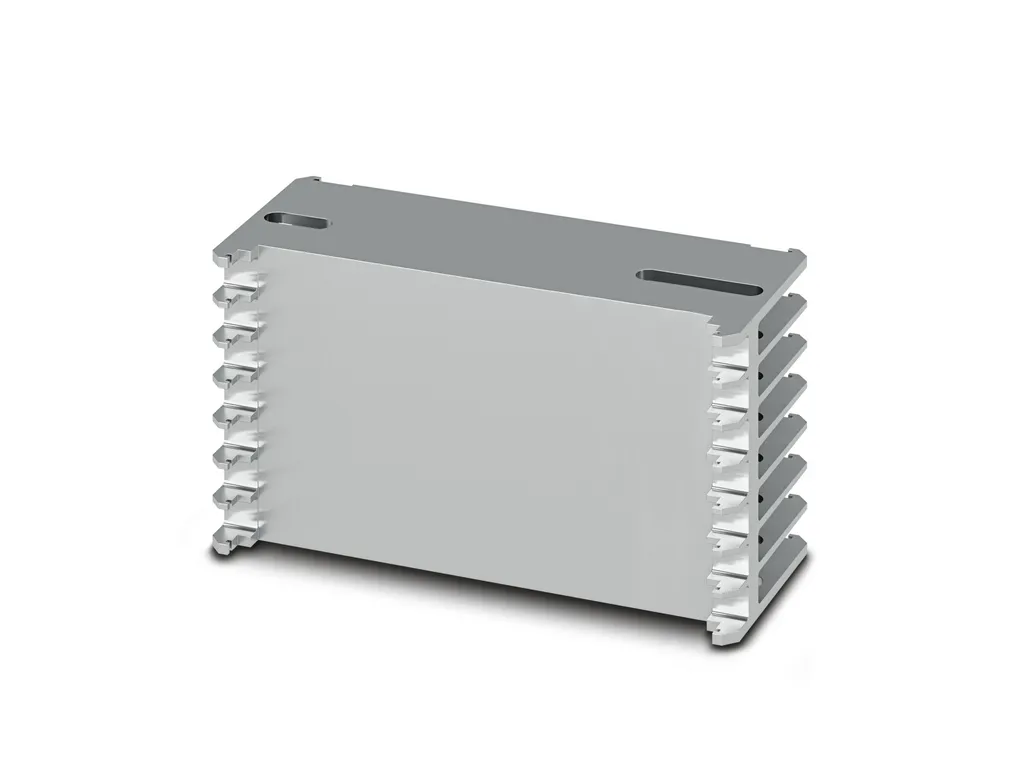

Product properties | Product type: Heat sink Product family: ICS50 Housing type: Heatsink Housing series: ICS |

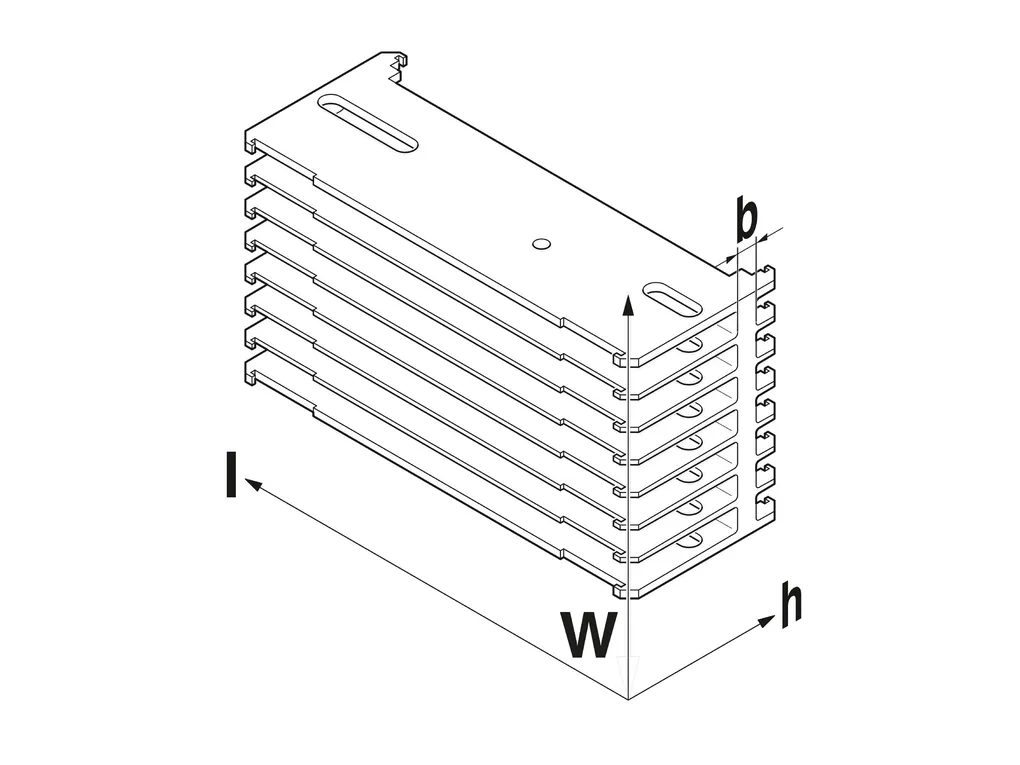

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/17589857f3385347839b48b456cddd17/-S204x204-FJPG Width: 67.4 mm Height: 50.1 mm Length: 127.5 mm Base panel thickness [b]: 5.8 mm |
Material specifications | Color: aluminum color Color (Housing): aluminum Material: Aluminum Surface characteristics: anodized Thermal resistance Rth: 1.39 K/W (At ÃT 65 K for ambient temperature) 2.57 K/W (At ÃT 5 K for ambient temperature) |
Environmental and real-life conditions | Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1octave/min Amplitude: 0.15mm (10Hz...58.1Hz) Acceleration: 2g (58.1Hz...150Hz) Test duration per axis: 2.5 h Test directions: X-, Y- and Z-axis Shocks Specification: IEC 60068-2-27:2008-02 Pulse shape: Semi-sinusoidal Acceleration: 15g Shock duration: 11ms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Test for substances that would hinder coating with paint or varnish Specification: VDMA24364:2018-05 Result: Test passed Ambient conditions Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C |
Mounting | Mounting type: Slot |
ECLASS | ECLASS-11.0: 27260501 ECLASS-12.0: 27260501 ECLASS-13.0: 27260501 |
ETIM | ETIM 9.0: EC001143 |
UNSPSC | UNSPSC 21.0: 32131000 |
