AXL P BK PN - Bus coupler
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)

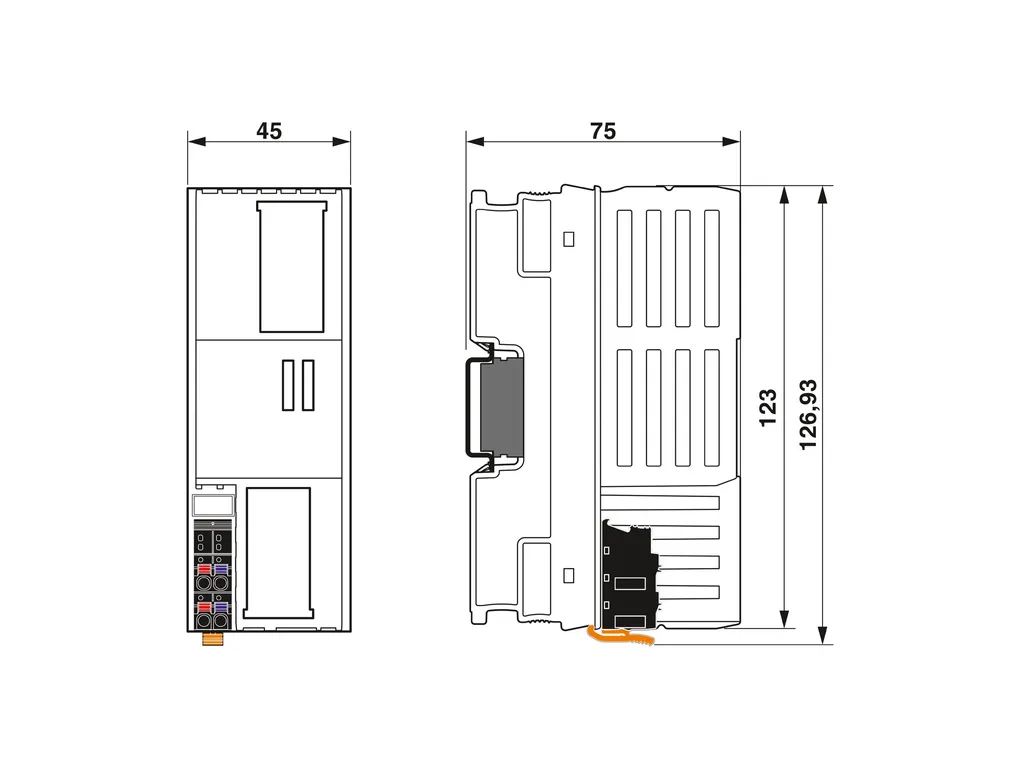

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/59fa0ee0b21ac04c822fa47148dec377/-S204x204-FJPG Width: 45 mm Height: 126.93 mm Depth: 75 mm Note on dimensions: The depth applies when a TH35-7.5 DIN rail is used (in accordance with EN60715). |
Notes | Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area Utilization restrictionâ CCCex note: Use in potentially explosive areas is not permitted in China. |
Material specifications | Color: gray |
Interfaces | Axioline P local bus Connection method: Connection for bus base module Transmission speed: 100 Mbps PROFINET No. of channels: 2 Connection method: RJ45 socket, auto negotiation and auto crossing Transmission speed: 100 Mbps (Full duplex) Transmission physics: Ethernet in RJ45 twisted pair Fieldbus: Local bus gateway Max. number of local bus devices: 63 (AXLPI/O modules. Consider the logic current consumed by the devices) |
System properties | System limits Number of supported devices: max. 63 (per station) PROFINET Device function: PROFINET device |
Product properties | Type: block modular Product type: I/O component Product family: Axioline P Mounting position: any Scope of delivery: including bus base module and connectors Insulation characteristics Overvoltage category: II Pollution degree: 2 |
Electrical properties | Maximum power dissipation for nominal condition: 5 W Potentials Protective circuit: Surge protection of the supply voltage; electronic Polarity reversal protection of the supply voltage; electronic Potentials: Supply of the bus coupler Supply voltage: 24 VDC (UL) Supply voltage range: 19.2 VDC ... 30 VDC Current draw: 4.15 A (19.2 V DC) 125 mA (24VDC) Potentials: Supply of the AxiolineP local bus U Supply voltage: 5 VDC (via bus base module) Current draw: 3 A (via bus base module) Potentials: Axioline P extension module supply voltage Supply voltage: UL (via bus base module) Current draw: 3 A (via bus base module) |
Connection data | Connection technology Connection name: Power supply Note on the connection method: Please observe the information provided on conductor cross sections in the âAxiolineP: system and installationâ user manual. Conductor connection Connection method: Push-in connection Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm Power supply Connection method: Push-in connection Note on the connection method: Please observe the information provided on conductor cross sections in the âAxiolineP: system and installationâ user manual. Conductor cross section, rigid: 0.2 mm² ... 1.5 mm² Conductor cross section, flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C (Mounting position: wall mounting on horizontal DIN rail) Air pressure (operation): 70 kPa ... 106 kPa (up to 2000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 2000m above sea level) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing) |
Standards and regulations | Protection class: III (IEC 61140, EN61140, VDE0140-1) |
Approvals | ATEX Identification: ï II 3 G Ex ec IIC T4 Gc Certificate: IBExU 18ATEXB018 X IECEx Identification: Ex ec IIC T4 Gc Certificate: IECEx IBE 18.0023X UKCAEx(UKEX) Identification: II 3G Ex ec IIC T4 Gc X Certificate: PxCAI22UKEx2316390X Ex data UL, USA / Canada: Class I, Div. 2, Groups A, B, C, D T4 Class I, Zone 2, IIC T4 |
Mounting | Mounting type: DIN rail mounting Mounting position: any |
ECLASS | ECLASS-11.0: 27242608 ECLASS-12.0: 27242608 ECLASS-13.0: 27242608 |
ETIM | ETIM 9.0: EC001604 |
UNSPSC | UNSPSC 21.0: 32151600 |
