| Notes | General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Mounting | Mounting type: Front mounting M20 x 1,5 Assembly instructions: The wires can be connected both with ferrules and without ferrules Connection method: Push-lock spring connection |
| Product properties | Product type: Circular connectors (device side) Sensor type: Universal Number of positions: 5 No. of cable outlets: 1 Shielded: no Coding: A Cable outlet: straight Insulation characteristics Overvoltage category: II Degree of pollution: 3 |

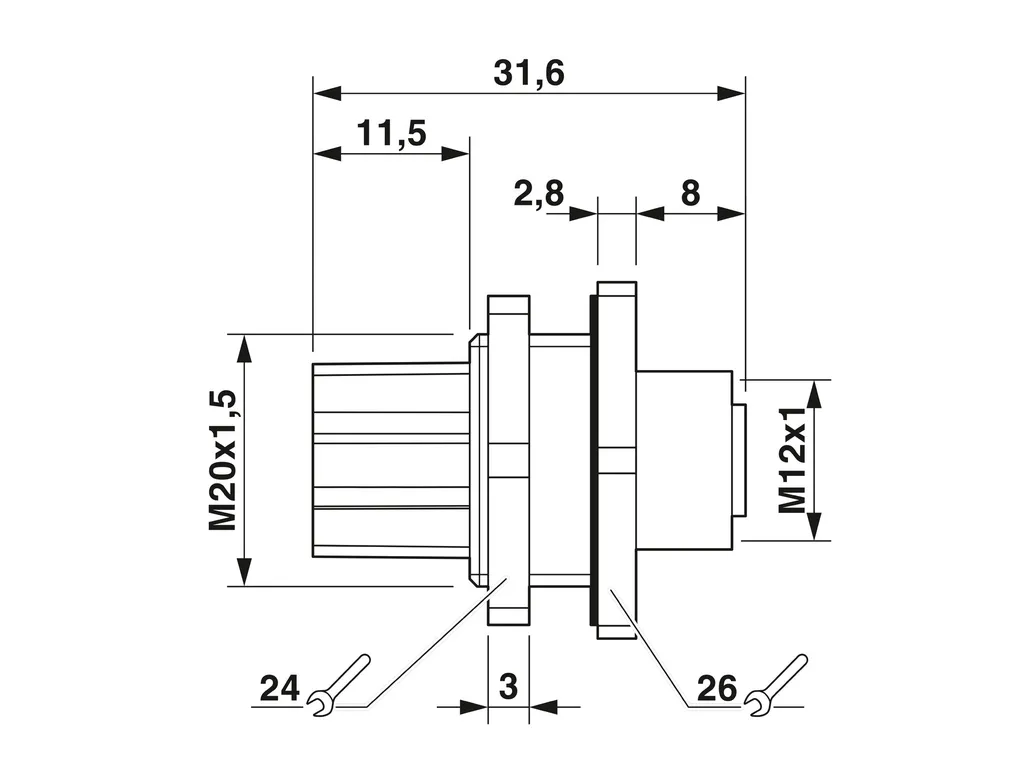

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7e9f3a941360fd42b994cb6f0aa1354d/-S204x204-FJPG Length: 19.2 mm Housing Diameter housing: 29 mm |
| Material specifications | Material: PA 6 Flammability rating according to UL 94: V0 Seal material: NBR Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: PA 6.6 Material for screw connection: Brass, nickel-plated |
| Electrical properties | Rated surge voltage: 1.5 kV Contact resistance: ⤠5 mé Insulation resistance: ⥠100 Mé Nominal voltage UN: 48 VAC 60 VDC Nominal current IN: 4 A (2A when using 0.14mm² conductors) |
| Connection data | Conductor connection Connection method: Push-lock spring connection Contact connection type: Socket Tightening torque: 0.4 Nm |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠100 |
| Connector | Connection 1 Head design: Socket Head cable outlet: straight Head thread type: M12 Coding: A |
| Cable/line | Signal type/category: Universal Stripping length of the individual wire: 7 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -40°C ... 85°C (Plug / socket) |
| Standards and regulations | M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
| ECLASS | ECLASS-11.0: 27440109 ECLASS-12.0: 27440109 ECLASS-13.0: 27440109 |
| ETIM | ETIM 9.0: EC003569 |
| UNSPSC | UNSPSC 21.0: 39121400 |
