CAPAROC E1 12-24DC/6A - Electronic circuit breaker

1-channel electronic circuit breaker module for protecting 12 and 24VDC loads against overload and short circuit. With fixed nominal current. For DIN rail installation via the CAPAROC current rails.

Product Code: 1157286

Partner cod.: 1157286

PHOENIX CONTACT

Notes	General Note: LABS release Ã¢ in accordance with test specification VWPV3.10.7:2005-0
Product properties	Product type: Device circuit breakers Product family: CAPAROC Number of positions: 1 No. of channels: 1 Number of slots: 1 Insulation characteristics Protection class: III Pollution degree: 2
Electrical properties	No. of channels: 1 General Operating voltage: 10 VDC ... 30 VDC Rated voltage: 12 VDC 24 VDC Rated current I_N: 6 ADC Rated current (pre-adjusted): 6 A Rated surge voltage: 0.5 kV Tripping method: E (electronic) Required backup fuse: Only required if I_max of the power supply > the short-circuit switching capacity. Integrated failsafe element. Short-circuit switching capacity: 300 A Dielectric strength: 35 VDC (Load circuit) Fuse: electronic Efficiency: > 99 % Closed circuit current I₀: typ. 8.5 mA (no load at 24V) Power dissipation: typ. 0.2 W (no load at 24V) < 0.7 W (in nominal operation at 24V and 6A) Measuring tolerance I: ± 15 % (typ.) MTBF (IEC 61709, SN 29500): 21013987 h (at 25°C with 21% load) 9355455 h (at40°C with 34.25%load) 1340653 h (at40°C with 100%load) Voltage drop: 0.08 V (at 6 A) Fail-safe element: 15 ADC (per output channel) Load circuit Shutdown time: 4 s (with overload 1.1Ã¢¦1.5xI_N) 1 s (with overload 1.5Ã¢¦2.0xI_N) 0.1 s (with overload 2.0Ã¢¦3.0xI_N) typ. 10 ms (For short circuit > 3.0 x I_N) Undervoltage switch-off: Ã¢¤ 8.5 VDC (active) Ã¢¥ 9.2 VDC (inactive) Overvoltage switch-off: Ã¢¥ 32.5 VDC (active) Ã¢¤ 30.5 VDC (inactive) Max. capacitive load: Ã¢¤ 20000 µF (Depending on the current setting and the short-circuit current available)
Connection data	Fuse-protected output Connection method: Push-in connection Stripping length: 10 mm Conductor cross section flexible: 0.2 mm² ... 4 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12 Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 4 mm² Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 4 mm²
Signaling	Channel LED off: off (Channel switched off) Channel LED yellow: lit (Channel switched on, channel load>80%) flashing (Programming mode active) two flashes (Check the installation, no communication to power module) Channel LED green: lit (Channel switched on) Channel LED red: lit (Channel switched off, over- or undervoltage active) ON temporarily (Channel switched off, 5s cool-down phase, overload or short-circuit release) flashing (Channel switched off, ready to be switched back on, overload or short-circuit release)

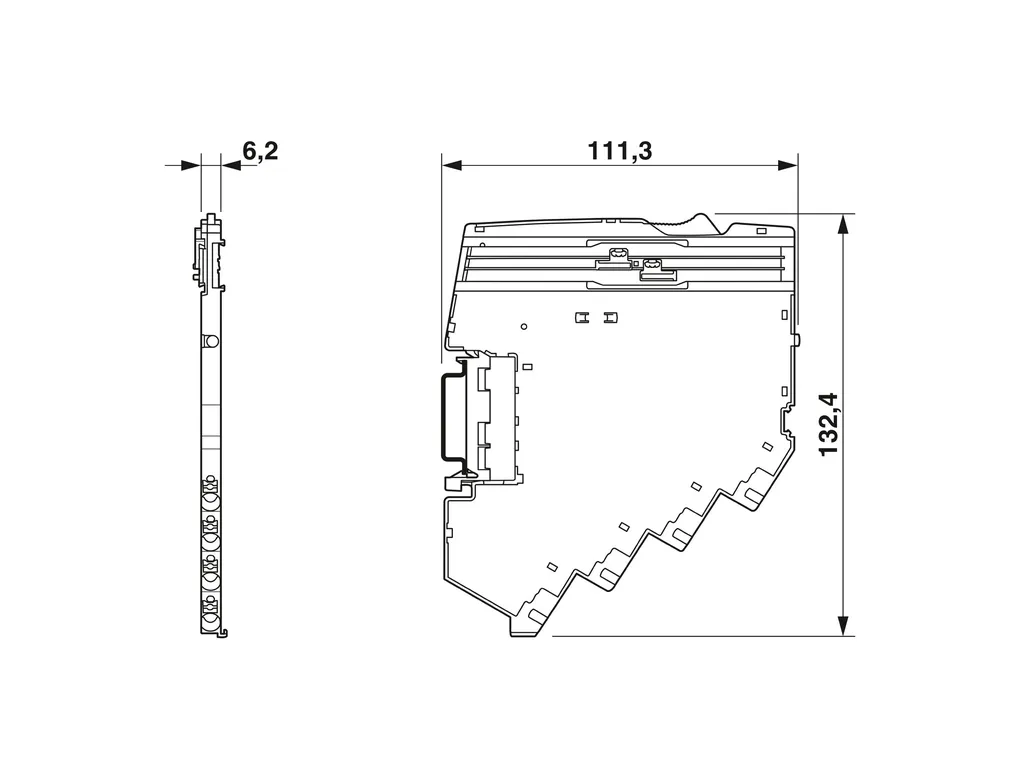

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/18ea635f3257ea41bcffabbbc190edad/-S204x204-FJPG Width: 6.2 mm Height: 132.4 mm Depth: 111.3 mm (incl. DIN rail 7.5mm)
Material specifications	Material: PA 6 PC Flammability rating according to UL 94: V-0
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -30°C ... 65°C (The temperature range of the power module must be taken into consideration) Ambient temperature (storage/transport): -40°C ... 70°C Altitude: Ã¢¤ 4000 m (amsl) Humidity test: 96h, 95%RH, 40°C Shock (operation): 30g (11 ms period, half-sine shock pulse, according to IEC 60068-2-27) 25g (6ms duration, half-sine shock pulse in accordance with IEC 60068-2-27, continuous shock) 15g (6ms duration, half-sine shock pulse in accordance with IEC 60068-2-27, continuous shock. If more than six CAPAROC E1 modules are used in the system.) Vibration (operation): 5g (10 ... 150Hz / 10cycles / axis / X,Y,Z)
Approvals	UL approval Identification: UL/C-UL Listed UL 508 UL Recognized UL 2367 UL 121201 Class I, Division 2, Groups A, B, C, D, T4A
Standards and regulations	Standards/specifications: EN61000-6-2 EN61000-6-3 EN60068-2-78 EN50178 EN60068-2-6 EN60068-2-27 Note: EMC Ã¢ Immunity for industrial areas EMC Ã¢ Emission for residential, business and commercial properties and small operations Environmental influences Ã¢ Moisture and heat, constant Equipping power installations with electronic equipment Environmental influences Ã¢ Vibrations (sinusoidal) Environmental influences Ã¢ Shocks
Mounting	Mounting type: pluggable onto CAPAROC CRÃ¢¦ current rail
