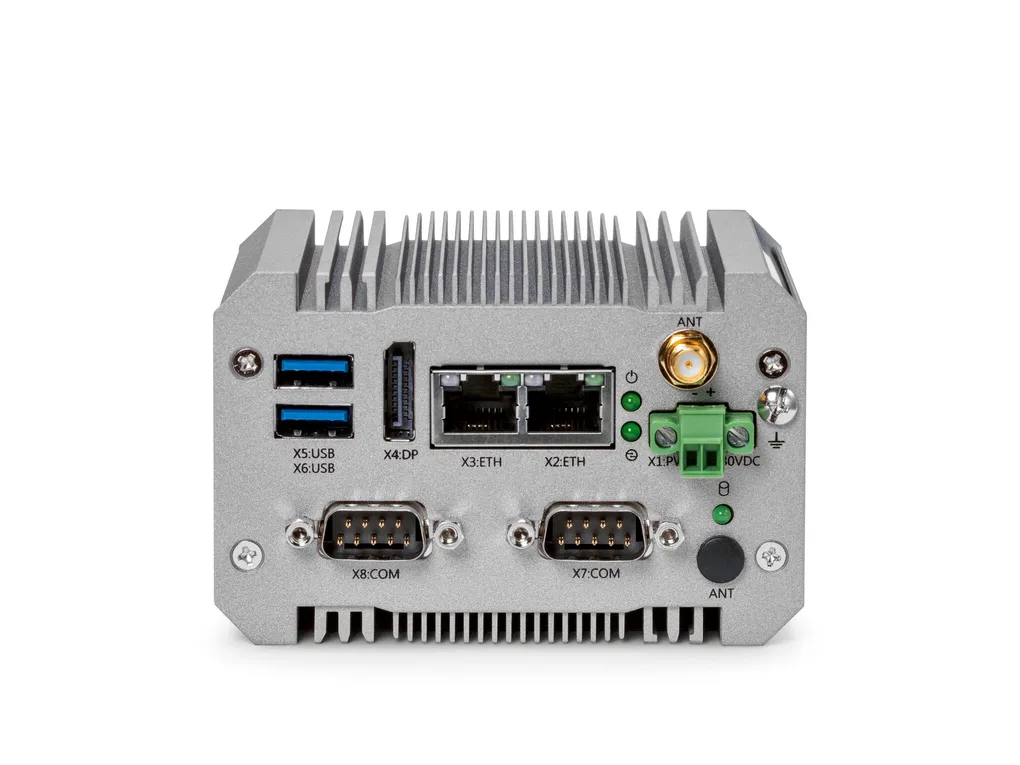

Product properties | Product type: Box PC Computer data Processor: Intel® Celeron® N3350 1.10/2.4GHz Operating system: Windows® 10 IoT Enterprise LTSC 2019 (64-bit), Multi-language Cooling: passive RAM: 4 GB LPDDR4 Data storage system: eMMC internal, 32GB 64 GB M.2 SSD Display Display type: none |
System properties | User software: without user software |
Electrical properties | Maximum power dissipation for nominal condition: 16.8 W Supply Supply voltage (DC): 24 VDC (CE rating) Supply voltage range: 12 VDC ... 30 VDC (Labeled operational voltage is 12 ⦠30VDC) Max. current consumption: 0.7 A (24VDC) Typical current consumption: 0.53 A (24VDC) |
Connection data | Screw connection Connection method: Screw connection Conductor cross section, rigid: 0.2 mm² ... 2.5 mm² Conductor cross section, flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 25 ... 14 |
Interfaces | Interfaces: 1x DP++ 2x USB 3.0 2x COM ports Network: 2x Ethernet (10/100/1000 Mbps), RJ45 LAN chipset: Intel® I210-AT |
Dimensions | External dimensions Width / Height / Depth: 99 mm / 92 mm / 63 mm |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP30 Ambient temperature (operation): -20°C ... 50°C (with 0.5 m/s airflow) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 85 % (non-condensing) Shock: 15g, 11 ms in accordance with IEC 60068-2-27 Vibration (operation): 1g, according to EN60068-2-6 |
Approvals | Conformity/Approvals Conformance: CE-compliant FCC: Title 47 Part 15 Subpart B:2018 Class A |
Mounting | Mounting type: DIN rail mounting Wall mounting (Accessories required) |
ECLASS | ECLASS-11.0: 19200102 ECLASS-12.0: 19200102 ECLASS-13.0: 19200102 |
ETIM | ETIM 9.0: EC001413 |
UNSPSC | UNSPSC 21.0: 43211500 |
