1159042 PHOENIX CONTACT - Technology Bsa

Input data	AC operation Supply system configuration: Star network (TN, TT, IT (PE)) Nominal input voltage range: 3x 400 VAC ... 500 VAC Input voltage range: 3x 400 VAC ... 500 VAC -20%...+10% 2x 400 VAC ... 500 VAC ±10% Typical national grid voltage: 3x 400 VAC 3x 480 VAC Voltage type of supply voltage: AC Inrush current: < 13 A (25°C) Inrush current integral (I²t): < 0.25 A²s Frequency range (f_N): 50 Hz ... 60 Hz ±10% Mains buffering time: typ. 35 ms (3x400VAC) typ. 58 ms (3x480VAC) Current consumption: 3x 0.68 A (3x400VAC) 3x 0.57 A (3x 500VAC) 2x 1.3 A (2x400VAC) 2x 1.1 A (2x500VAC) Protective circuit: Transient protection; Varistor Power factor (cos phi): 0.57 (3x 480 V AC) Device mains fuse: 3.15 A internal (device protection) Recommended breaker for input protection: 3x 3 A ... 16 A (Characteristic B, C, D, K or comparable) Discharge current to PE: < 3.5 mA
Output data	Efficiency: typ. 92.35 % (3x 400 V AC) typ. 92.26 % (3x 480 V AC) Nominal output voltage: 24 VDC Setting range of the output voltage (U_Set): 24 VDC ... 28 VDC (> 24 VDC, constant capacity restricted) Nominal output current (I_N): 10 A Dynamic Boost (I_Dyn.Boost): max. 15 A (5s) Short-circuit-proof: yes No-load proof: yes Derating: 60°C ... 70°C Crest factor: typ. 2.77 (3x 400 V AC) typ. 2.94 (3x 480 V AC) Output power (P_N): 240 W Output power (P_{Dyn. Boost}): max. 360 W (5s) Connection in parallel: yes, for increasing power and redundancy with diode Connection in series: yes, for increased output voltage (observe SELV limit) Feedback voltage resistance: Ã¢¤ 35 VDC Protection against overvoltage at the output (OVP): Ã¢¤ 35 VDC Residual ripple: typ. 10 mV_PP (with nominal values) Control deviation: < 1 % (change in load, static 10 % ... 90 %) < 3 % (change in load, dynamic 10 % ... 90 %) < 0.1 % (change in input voltage ±10 %) Rise time: Ã¢¤ 1 s (U_Out=10%...90%) Minimum no-load power dissipation: < 1.16 W (3x 400 V AC) Maximum no-load power dissipation: < 1.58 W (3x 480 V AC) Minimum nominal load power dissipation: < 19.93 W (3x 400 V AC) Power loss nominal load max.: < 20.18 W (3x 480 V AC) Integrated fuse protection: no Signal relay 13/14 Position: 3.x Position marking: 3.1 (13), 3.2 (14) Switch contact (floating): OptoMOS Switching voltage: max. 30 VDC (SELV) Current carrying capacity: max. 100 mA State condition: U_Out >21VDC and I_Out <0.9xI_N (Contact closed) U_Out <21VDC or I_Out >0.9xI_N(averaging over 60s) (Contact open)
Connection data	Input Position: 1.x Connection technology Position marking: 1.1 (L1), 1.2 (L2), 1.3 (L3), 1.4 (Ã¯µ) Conductor connection Connection method: Push-in connection rigid: 0.2 mm² ... 4 mm² 1.5 mm² (recommended) flexible: 0.2 mm² ... 2.5 mm² 1.5 mm² (recommended) flexible with ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm² 1.5 mm² (recommended) flexible with ferrule with plastic sleeve: 0.25 mm² ... 1.5 mm² 1.5 mm² (recommended) rigid (AWG): 24 ... 12 (Cu) 16 (recommended) Stripping length: 10 mm (rigid/flexible) 8 mm (Ferrule) Output Position: 2.x Connection technologyÃ¢ Position marking: 2.1, 2.2 (+), 2.3, 2.4, 2.5 (-) Conductor connectionÃ¢ Connection method: Push-in connection rigid: 0.2 mm² ... 4 mm² 1.5 mm² (recommended) flexible: 0.2 mm² ... 2.5 mm² 2.5 mm² (recommended) flexible with ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm² (Cu) 2.5 mm² (recommended) flexible with ferrule with plastic sleeve: 0.25 mm² ... 1.5 mm² 1.5 mm² (recommended) rigid (AWG): 24 ... 12 (Cu) 16 (recommended) Stripping length: 10 mm (rigid/flexible) 8 mm (Ferrule) Signal Position: 3.x Connection technologyÃ¢Ã¢ Position marking: 3.1 (13), 3.2 (14) Conductor connectionÃ¢Ã¢ Connection method: Push-in connection rigid: 0.2 mm² ... 1.5 mm² 0.5 mm² (recommended) flexible: 0.2 mm² ... 1.5 mm² 0.5 mm² (recommended) flexible with ferrule without plastic sleeve: 0.25 mm² ... 1.5 mm² (Cu) 0.5 mm² (recommended) flexible with ferrule with plastic sleeve: 0.25 mm² ... 0.75 mm² 0.5 mm² (recommended) rigid (AWG): 24 ... 16 (Cu) 20 (recommended) Stripping length: 10 mm (rigid/flexible) 8 mm (Ferrule)
Signaling	LED signaling Types of signaling: LED DCOK Ã¢ signal state operation (U_N = 24VDC, I_Out = I_N) Function: Visual operating state display Color: red, yellow, green (multicolor LED) LED off: Supply voltage input AC not present (Off) LED on (green), DC OK: U_Out >21VDC and I_Out <0.9xI_N (On (green), DC OK) LED on (yellow), IOut > 90%: U_Out >21VDC and I_Out >0.9xI_N (On (yellow), I_Out >90%) LED on (red), ISHORT: U_Out <21VDC and I_Out >0.9xI_N (On (red), I_SHORT) LED on (flashing red) OVP: U_OUT>OVP (Over voltage protection) (On (flashing red))
Electrical properties	Number of phases: 3.00 Insulation voltage input/output: 3 kV AC (type test) 3 kV AC (routine test)
Product properties	Product type: Power supply Product family: TRIO POWER MTBF (IEC 61709, SN 29500): > 1400000 h (25°C) > 820000 h (40°C) > 320000 h (60°C) Environmental protection directive: RoHS Directive 2011/65/EU WEEE Reach Insulation characteristics Protection class: I Degree of pollution: 2

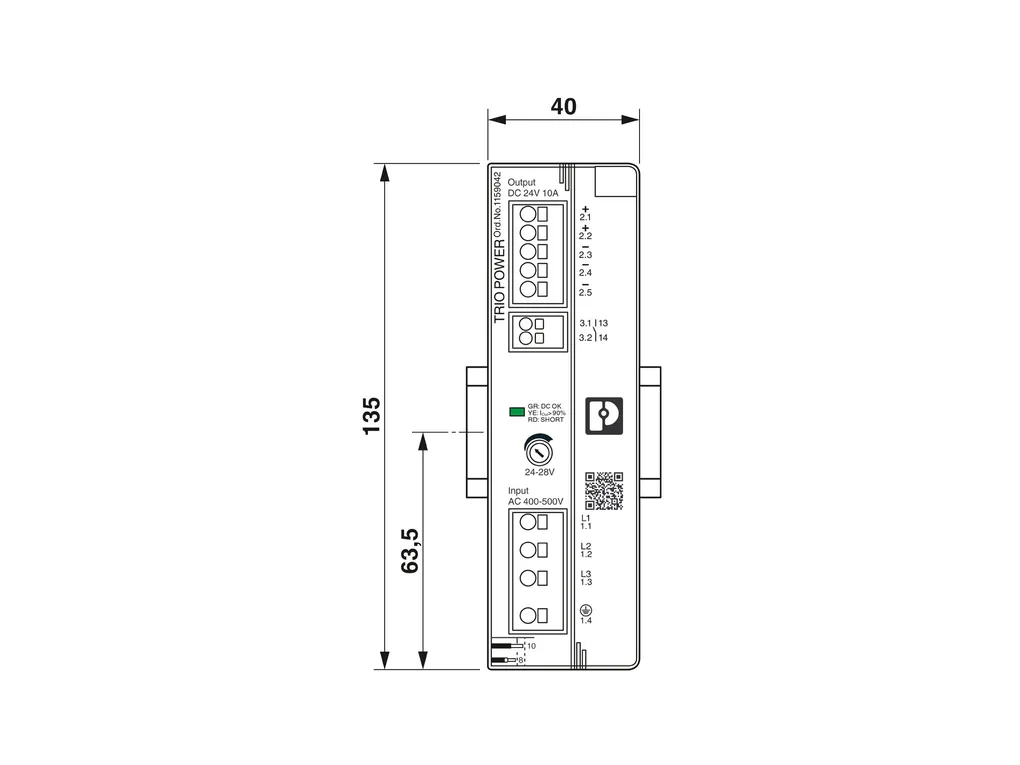

Dimensions	Item dimensions Width: 40 mm Height: 135 mm Depth: 132 mm 125 mm (Device depth (DIN rail mounting)) Installation dimensions Installation distance right/left: 0 mm / 0 mm Installation distance top/bottom: 50 mm / 50 mm
Mounting	Mounting type: DIN rail mounting Assembly instructions: alignable: 0mm horizontally, 30mm vertically Mounting position: horizontal DIN rail NS 35, EN 60715
Material specifications	Flammability rating according to UL 94: V0 (Housing, terminal blocks) Hood version: Polycarbonate Side element version: Aluminum
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 70°C (>60°C Derating: 2,5 %/K) Ambient temperature (storage/transport): -40°C ... 85°C Ambient temperature (start-up type tested): -40°C Maximum altitude: Ã¢¤ 5000 m (> 2000m, Derating: 10%/1000m) Max. permissible relative humidity (operation): Ã¢¤ 95 % (at 25°C, non-condensing) Shock (operation): 18ms, 30g, per spatial direction (IEC 60068-2-27) Vibration (operation): 10Hz...50Hz, amplitude ±0.2mm (IEC 60068-2-6) 50Hzto150Hz, 2.3g, 90min.
Standards and regulations	Overvoltage category EN 61010-1: III(Ã¢¤2000m) II(Ã¢¤5000m) Overvoltage categoryÃ¢ EN61010-2-201: III(Ã¢¤2000m) II(Ã¢¤5000m) Safety of power supply units up to 1100V (insulation distances) Standard designation: Safety of power supply units up to 1100V (insulation distances) Standards/specifications: DINEN61558-2-16 Electrical safety Standard designation: Electrical safety Standards/specifications: IEC 61010-2-201(SELV) Electronic equipment for use in power installations Standard designation: Equipping high voltage installations with electronic equipment Standards/specifications: EN50178/VDE0160(PELV) Safety for measurement, control, and laboratory equipment Standard designation: Safety for equipment for measurement, control, and laboratory use Standards/specifications: IEC 61010-1 Protective extra-low voltage Standard designation: Protective extra-low voltage Standards/specifications: IEC 61010-1 (SELV) IEC 61010-2-201 (PELV) Safe isolation Standard designation: Safe isolation Standards/specifications: IEC 61558-2-16 IEC 61010-2-201 Limitation of harmonic line currents Standard designation: Limitation of harmonic line currents Standards/specifications: EN61000-3-2 Mains variation/undervoltage Standard designation: Mains variation/undervoltage Standards/specifications: SEMI F47 EN61000-4-11
Approvals	UL Identification: UL/C-UL Listed UL61010-1 ULÃ¢ Identification: UL/C-UL Listed UL61010-2-201 ANSI/UL121201 Identification: PROCESS CONTROL EQUIPEMENT FOR HAZARDOUS LOCATIONS (EN) Ã¯· This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D, Hazardous Locations, or non-hazardous locations only. (FR) Ã¯· Cet appareil convient uniquement pour une utilisation en atmosphÃ¨res explosibles de classe I, division 2, groupes A, B, C et D ou en atmosphÃ¨res non explosibles. (EN) Ã¯· WARNING: Explosion Hazard - Do not connect or disconnect equipment unless power has been switched off or the area is known to be non-hazardous. (FR) Ã¯· AVERTISSEMENT: risque d'explosion - ne pas connecter ou dÃ©connecter les Ã©quipements sauf si l'alimentation a Ã©tÃ© coupÃ©e ou si la zone est rÃ©putÃ©e non dangereuse. (EN) Ã¯· If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. (FR) Ã¯· Si l'Ã©quipement est utilisÃ© d'une maniÃ¨re non spÃ©cifiÃ©e par le fabricant, la protection fournie par cet Ã©quipement peut Ãªtre altÃ©rÃ©e. (EN) Ã¯· This equipement must be installed in a suitable, tool secured/key locked enclosure. (FR) Ã¯· Cet Ã©quipement doit Ãªtre installÃ© dans un boÃ®tier appropriÃ©, verrouillÃ© par une clÃ© ou dont l'ouverture nÃ©cessite l'utilisation d'un outil.
EMC data	Low Voltage Directive: Conformance with Low Voltage Directive 2014/35/EC Interference emission: Interference emission in accordance with EN61000-6-3 (residential and commercial) and EN61000-6-4 (industrial) Noise immunity: Immunity in accordance with EN61000-6-1 (residential), EN61000-6-2 (industrial) Electromagnetic compatibility: Conformance with EMC Directive 2014/30/EU Conducted noise emission: EN55016 EN61000-6-3 (Class B) Noise emission: EN55016 EN61000-6-3 (Class B) Harmonic currents Standards/regulations: EN61000-3-2 EN61000-3-2 (Class A) Frequency range: 0 kHz ... 2 kHz Flicker Standards/regulations: EN61000-3-3 Frequency range: 0 kHz ... 2 kHz Electrostatic discharge Standards/regulations: EN61000-4-2 Electrostatic dischargeÃ¢ Contact discharge: 6 kV (Test Level 3) Discharge in air: 8 kV (Test Level 3) Comments: Criterion B Electromagnetic HF field Standards/regulations: EN61000-4-3 Electromagnetic HF fieldÃ¢ Frequency range: 80 MHz ... 1 GHz 1 GHz ... 6 GHz Test field strength: 10 V/m (Test Level 3) Comments: Criterion A Fast transients (burst) Standards/regulations: EN61000-4-4 Fast transients (burst)Ã¢ Input: asymmetrical 2 kV (Test Level 3) Output: asymmetrical 2 kV (Test Level 3) Signal: asymmetrical 1 kV (Test Level 3) Comments: Criterion A Surge voltage load (surge) Standards/regulations: EN61000-4-5 Input: symmetrical 2 kV (Test Level 4) asymmetrical 4 kV (Test Level 4) Output: symmetrical 1 kV (Test Level 3) asymmetrical 2 kV (Test Level 3) Signal: asymmetrical 1 kV (Test Level 2) Comments: Criterion A Conducted interference Standards/regulations: EN61000-4-6 Conducted interferenceÃ¢ I/O/S: asymmetrical Frequency range: 0.15 MHz ... 80 MHz Comments: Criterion A Voltage: 10 V (Test Level 3) Voltage dips Standards/regulations: EN61000-4-11 Voltage: 480 VAC Frequency: 50 Hz Voltage dip: 70 % 40 % 0 % Number of periods: 25 periods 10 periods 1 period Additional text: Class3 Comments: Criterion A Criterion B Criterion A Criteria Criterion A: Normal operating behavior within the specified limits. Criterion B: Temporary impairment to operational behavior that is corrected by the device itself. Criterion C: Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements.
