1197334 PHOENIX CONTACT - Technology Bsa

SACB- 8/3-L-15,0PUR-M8 HD - Distributor box

Distributor box, application: Standard, connection method: M8 socket Metal, number of slots: 8, number of positions: 3, coding: A, slot assignment: single, status display: Yes, pnp; master cable connection: Fixed connection 180°, PUR/PVC, cable length: 15 m, shielding: no

Product Code: 1197334

Partner cod.: 1197334

PHOENIX CONTACT

Notes	General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories".
Product properties	Product type: Distributor boxes with M8 to M12 slots Number of positions: 3 Application: Standard Number of slots: 8 Coding: A LED: yes
Material specifications	Material: Cu alloy PBT PUR Seal material O-ring: FKM Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: PBT

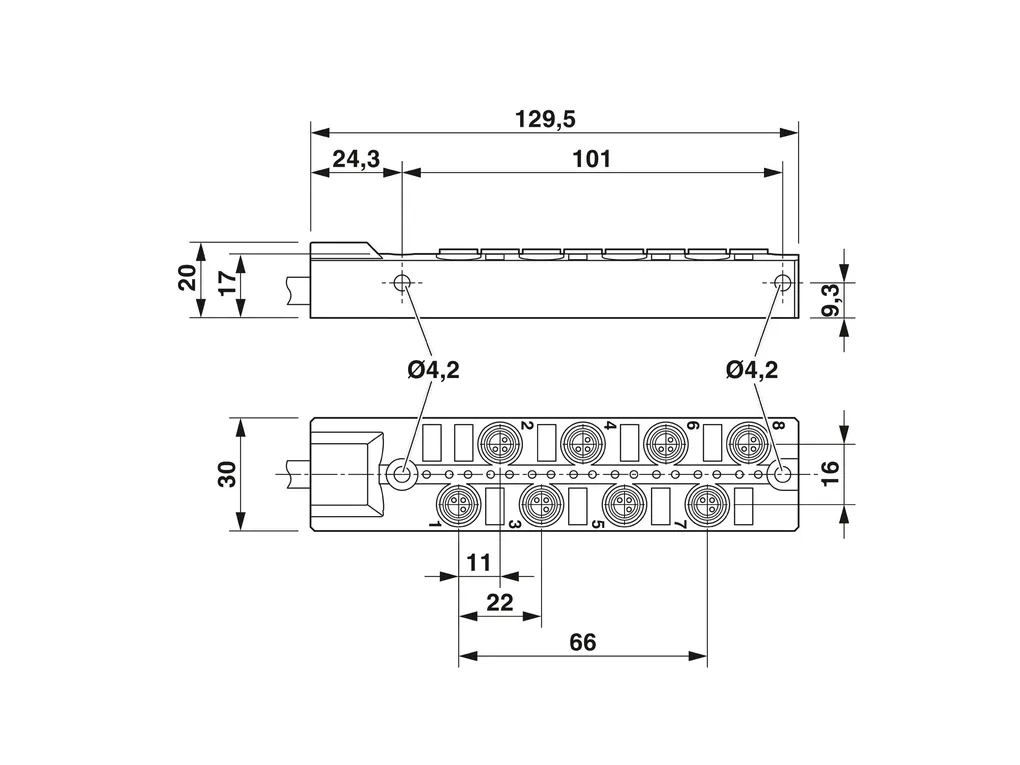

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/a19d5e57dcc5a04bb1a14c2ba6ca6577/-S204x204-FJPG Width: 30 mm Height: 20 mm Length: 129.5 mm
Connection data	Conductor connection Connection method: Fixed connection Tightening torque slot sensor/actuator cable: 0.2 Nm Pin assignment Slot/position = Wire color or connection: 1 / 4 (A)=WH 2 / 4 (A)=GN 3 / 4 (A)=YE 4 / 4 (A)=GY 5 / 4 (A)=PK 6 / 4 (A)=RD 7 / 4 (A)=BK 8 / 4 (A)=VT 1-8 / 1 (+ 24 V)=BN 1-8 / 3 (0 V)=BU
Signaling	Status display present: Yes
Electrical properties	Max. operating voltage U_max: 30 VDC Local diagnostics: Supply voltage Green LED Status display I/O Yellow LED Nominal voltage U_N: 24 VDC Rated current, total: 6 A Max. current carrying capacity per path: 2 A Current carrying capacity per slot: 2 A
Cable/line	Cable length: 15 m PUR/PVC black[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/0877da060ae0cc4eaecb0cdad9b6833e/-S204x204-FJPG Cable weight: 92 kg/km UL AWM Style: 20549 Number of positions: 10 Shielded: no Cable type: PUR/PVC black[PUR] Conductor structure signal line: 19x 0.15 mm AWG signal line: 22 Conductor cross section: 8x 0.34 mm² (Signal line) 2x 0.75 mm² (power line) Wire diameter incl. insulation: 1.3 mm ±0.1mm (Signal line) 1.8 mm ±0.1mm (power line) External cable diameter: 7.9 mm ±0.2mm Outer sheath, material: PUR External sheath, color: black RAL9005 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: brown, blue, white, green, yellow, gray, pink, red, black, violet Inner sheath thickness: Ã¢¥ 0.15 mm Thickness, outer sheath: Ã¢¥ 0.38 mm Overall twist: Wires twisted in layers Nominal voltage, cable: 300 V Test voltage: 2000 V Minimum bending radius, fixed installation: 7.5 x D Minimum bending radius, flexible installation: 10 x D Max. bending cycles: 1500000 Flame resistance: DINEN50265 Resistance to oil: according to VDE 0472 Part 803 Other resistance: Highly resistant to acids, alkaline solutions and solvents Special properties: Silicone-free Ambient temperature (operation): -40°C ... 90°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation) 80°C (in acc. with UL)
Standards and regulations	Standard designation: M8 connector Standards/specifications: IEC 61076-2-104
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 80°C
