SACB- 4/3-L-M16-M8 HD - Distributor box

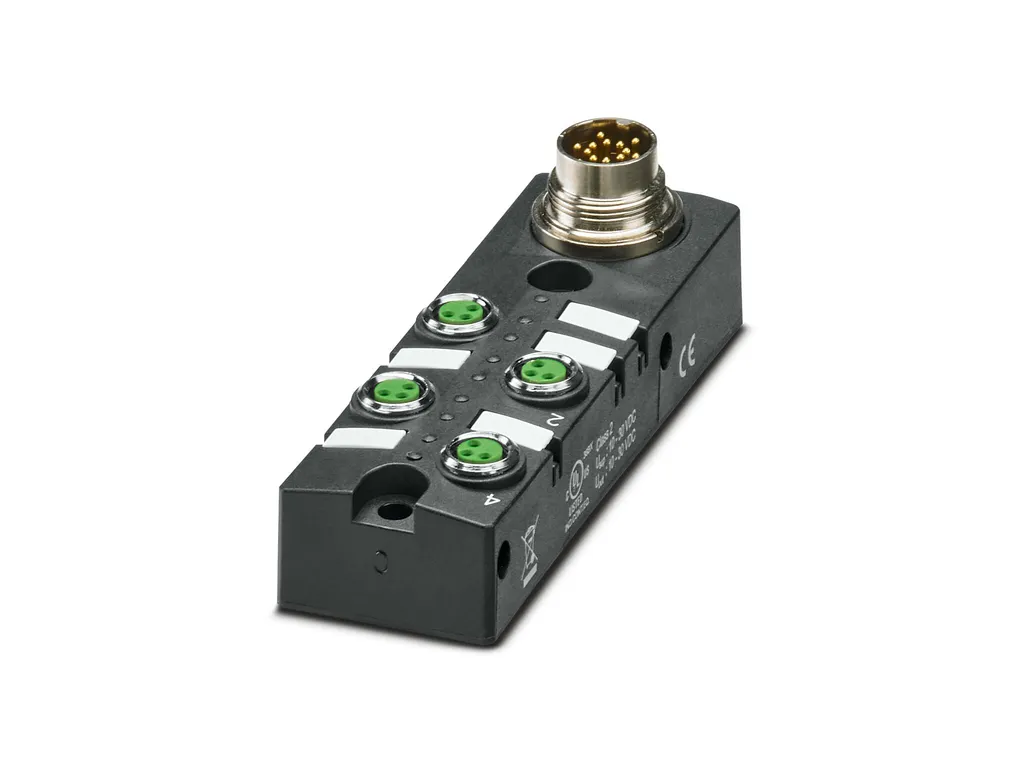

Distributor box, application: Standard, connection method: M8 socket Metal, number of slots: 4, number of positions: 3, coding: A, slot assignment: single, status display: Yes, pnp; master cable connection: M16 plug connection 90°, shielding: no

Product Code: 1197406

Partner cod.: 1197406

PHOENIX CONTACT

Notes	General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories".
Product properties	Product type: Distributor boxes with M8 to M12 slots Number of positions: 3 Application: Standard Number of slots: 4 Coding: A LED: yes
Material specifications	Material: Cu alloy PBT PUR Seal material O-ring: FKM Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: PBT Material of contact, master cable side: CU alloy

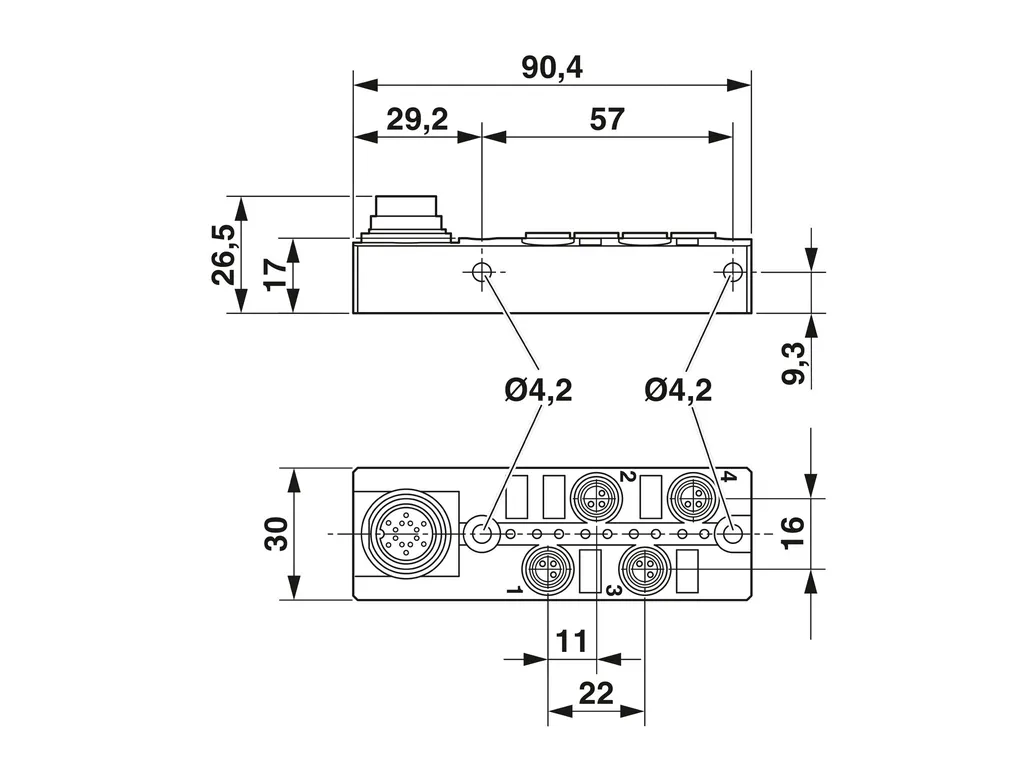

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/c08e728b6785e64088ea3dd93dfb49f5/-S204x204-FJPG Width: 30 mm Height: 27 mm Length: 90.4 mm
Connection data	Conductor connection Connection method: M16 plug connection Tightening torque slot sensor/actuator cable: 0.2 Nm Tightening torque - master cable - plug connection: 1.5 Nm Tightening torque of mounting screw for fixing the housing: 0.8 Nm Pin assignment Slot/position = Wire color or connection: 1 / 4 (A)=P 2 / 4 (A)=J 3 / 4 (A)=T 4 / 4 (A)=S 1-4 / 1 (+ 24 V)=A+M 1-4 / 3 (0 V)=L+U
Signaling	Status display present: Yes
Electrical properties	Max. operating voltage U_max: 30 VDC Local diagnostics: Supply voltage per module Green LED Status display I/O Yellow LED Nominal voltage U_N: 24 VDC Rated current, total: 6 A Max. current carrying capacity per path: 2 A Current carrying capacity per slot: 2 A
Cable/line	Sensor/actuator connection system: M8 socket Connection method: M16 plug connection Tightening torque - master cable - plug connection: 1.5 Nm Tightening torque of mounting screw for fixing the housing: 0.8 Nm Tightening torque slot sensor/actuator cable: 0.2 Nm
Standards and regulations	Standard designation: M8 connector Standards/specifications: IEC 61076-2-104
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -20°C ... 80°C
