SACB- 4/3-L-C-M8 HD GG - Sensor/actuator box header
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories". |
Product properties | Product type: Header with metric measurement slots Number of positions: 3 Application: Standard Number of slots: 4 Coding: A LED: yes |
System properties | Local diagnostics Monitored function: Supply voltage Optical representation: Green LED |
Electrical properties | Max. operating voltage Umax: 30 VDC Local diagnostics: Supply voltage Green LED Status display I/O Yellow LED Nominal voltage UN: 24 VDC Rated current, total: 8 A Max. current carrying capacity per path: 2 A Current carrying capacity per slot: 2 A |
Signaling | Status display present: Yes |

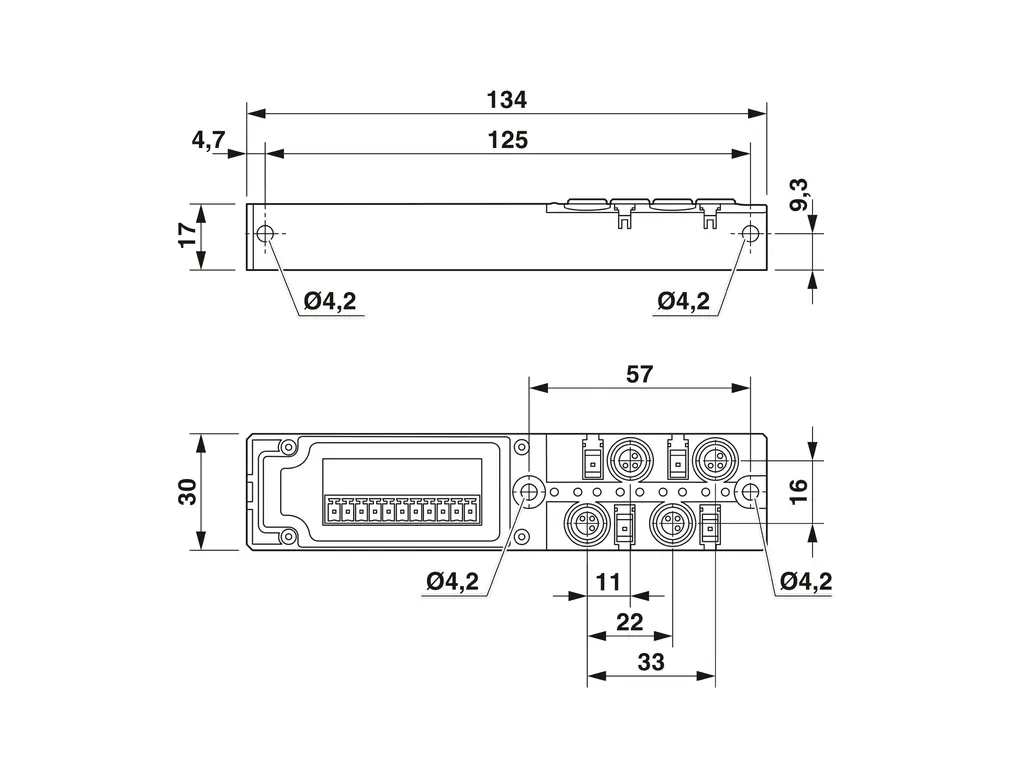

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/46b20942bf9a8a408253e096a76f8c23/-S204x204-FJPG Width: 30 mm Height: 17 mm Length: 134 mm |
Material specifications | Material: Cu alloy PBT PUR Seal material O-ring: FKM Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: PBT Material of contact, master cable side: CU alloy Material of the contact carrier on the master cable side: PA Material of contact surface, master cable side: tin-plated |
Cable/line | Sensor/actuator connection system: M8 socket Connection method: Plug-in master cable connection Tightening torque, cover screw: 1 Nm Tightening torque of mounting screw for fixing the housing: 0.8 Nm |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 80°C |
Standards and regulations | Standard designation: M8 connector Standards/specifications: IEC 61076-2-104 |
ECLASS | ECLASS-11.0: 27440111 ECLASS-12.0: 27440111 ECLASS-13.0: 27440111 |
ETIM | ETIM 9.0: EC003558 |
UNSPSC | UNSPSC 21.0: 31251500 |
