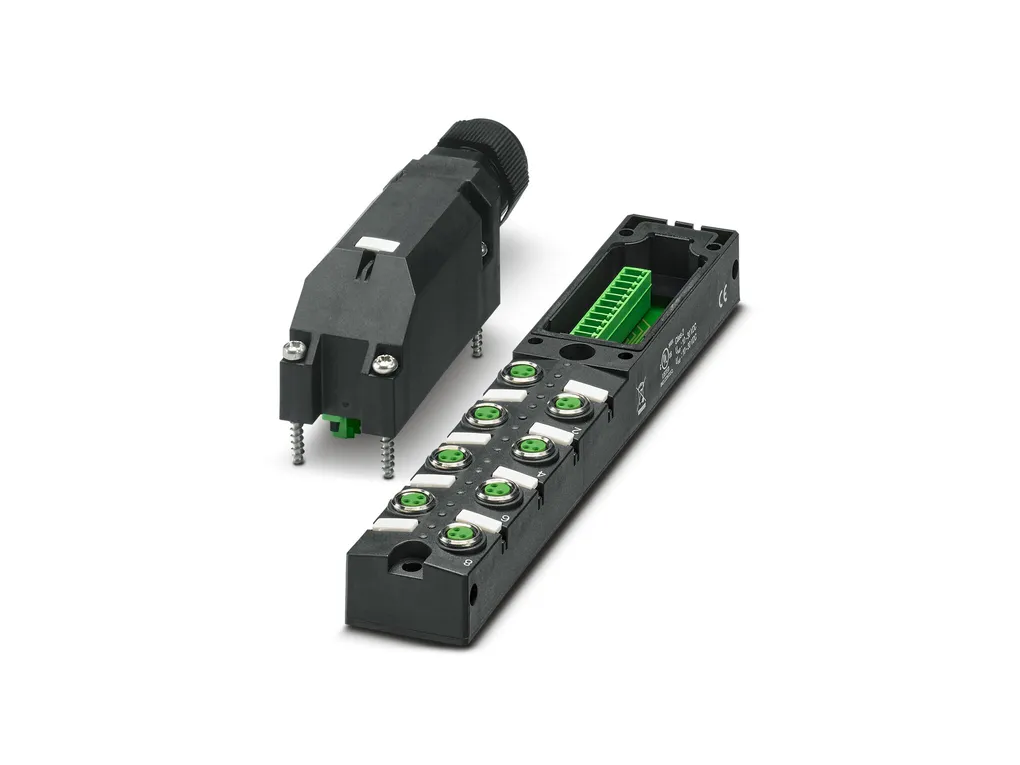

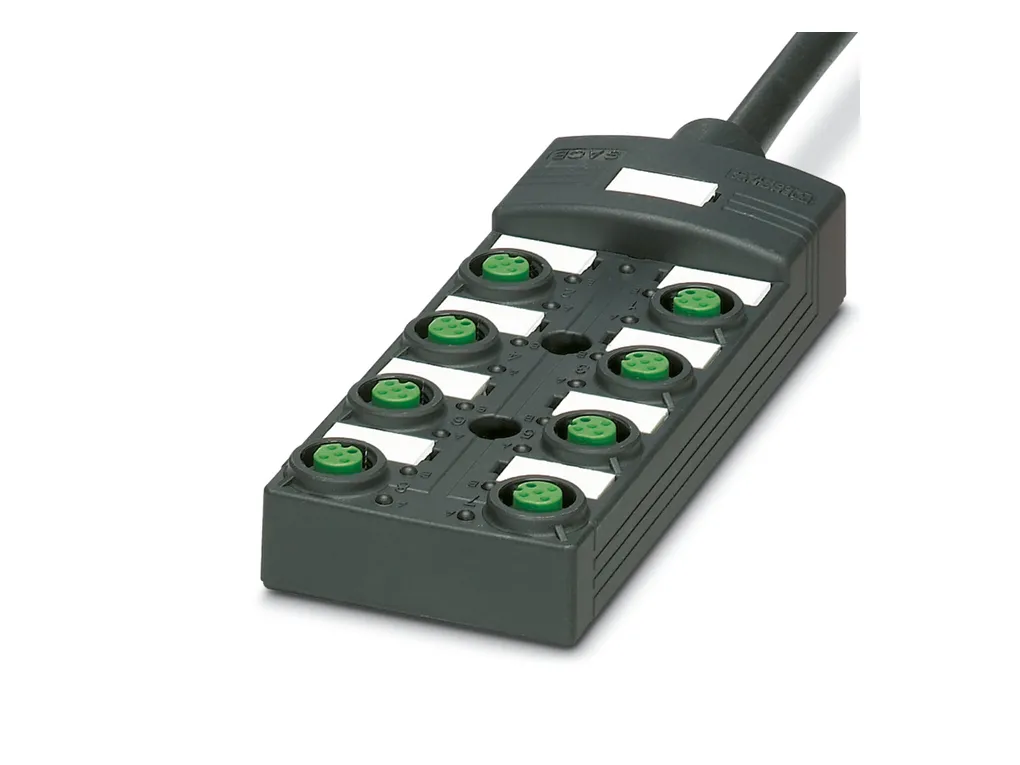

SACB- 8/3-L-C-M8 HD - Distributor box

Distributor box, application: Standard, connection method: M8 socket Metal, number of slots: 8, number of positions: 3, coding: A, slot assignment: single, status display: Yes, pnp; master cable connection: Pluggable screw connection 180°, shielding: no

Product Code: 1197611

Partner cod.: 1197611

PHOENIX CONTACT

Notes	General: For details about the PCB connectors used, refer to the technical data for MC 1,5/10-STF-3,5 (1847204) NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories".
Product properties	Product type: Distributor boxes with M8 to M12 slots Number of positions: 3 Application: Standard Number of slots: 8 Coding: A LED: yes
Material specifications	Material: Cu alloy PBT PUR Seal material O-ring: FKM Seal material: FKM Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: PBT Material of contact, master cable side: CU alloy Material of the contact carrier on the master cable side: PA Material of contact surface, master cable side: tin-plated

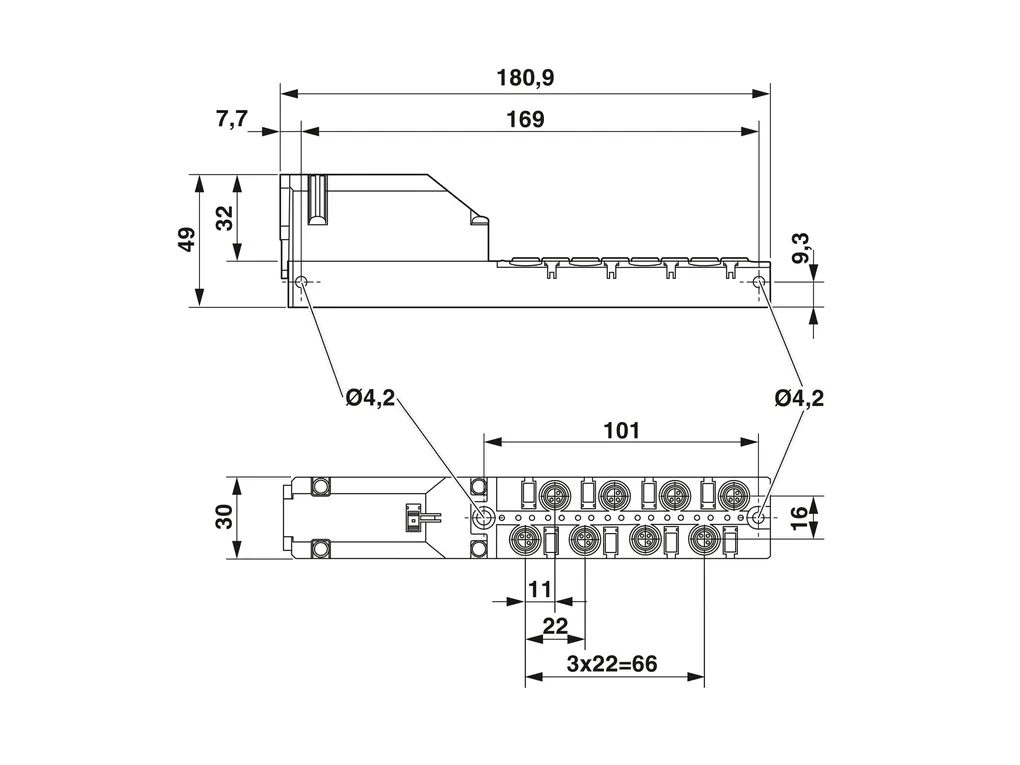

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/77a053cc7f591749aa8cf97075ef2ba0/-S204x204-FJPG Wrench size, union nut: 24 mm Wrench size, counter nut: 24 mm
Connection data	Conductor connection Connection method: Pluggable screw connection Stripping length: 7 mm Conductor cross section Flexible signal line: 0.14 mm² ... 1.5 mm² Conductor cross section Flexible power supply: 0.14 mm² ... 1.5 mm² Connection cross section AWG Flexible signal line: 26 ... 16 Connection cross section AWG Flexible power supply: 26 ... 16 Tightening torque, cover screw: 1 Nm Tightening torque of mounting screw for fixing the housing: 0.8 Nm Pin assignment Slot/position = Wire color or connection: 1 / 4 (A)=1 / 4 2 / 4 (A)=2 / 4 3 / 4 (A)=3 / 4 4 / 4 (A)=4 / 4 5 / 4 (A)=5 / 4 6 / 4 (A)=6 / 4 7 / 4 (A)=7 / 4 8 / 4 (A)=8 / 4 1-8 / 1 (+ 24 V)=U_N 1-8 / 3 (0 V)=0 V
Signaling	Status display present: Yes
Electrical properties	Max. operating voltage U_max: 30 VDC Local diagnostics: Supply voltage Green LED Status display I/O Yellow LED Nominal voltage U_N: 24 VDC Rated current, total: 8 A Max. current carrying capacity per path: 2 A Current carrying capacity per slot: 2 A
Cable/line	Sensor/actuator connection system: M8 socket Connection method: Pluggable screw connection Stripping length (signal): 7 mm Stripping length for sheath: 70 mm (Master cable) Tightening torque, cover screw: 1 Nm Tightening torque of mounting screw for fixing the housing: 0.8 Nm
Standards and regulations	Standard designation: M8 connector Standards/specifications: IEC 61076-2-104
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 80°C
