1197612 PHOENIX CONTACT - Technology Bsa

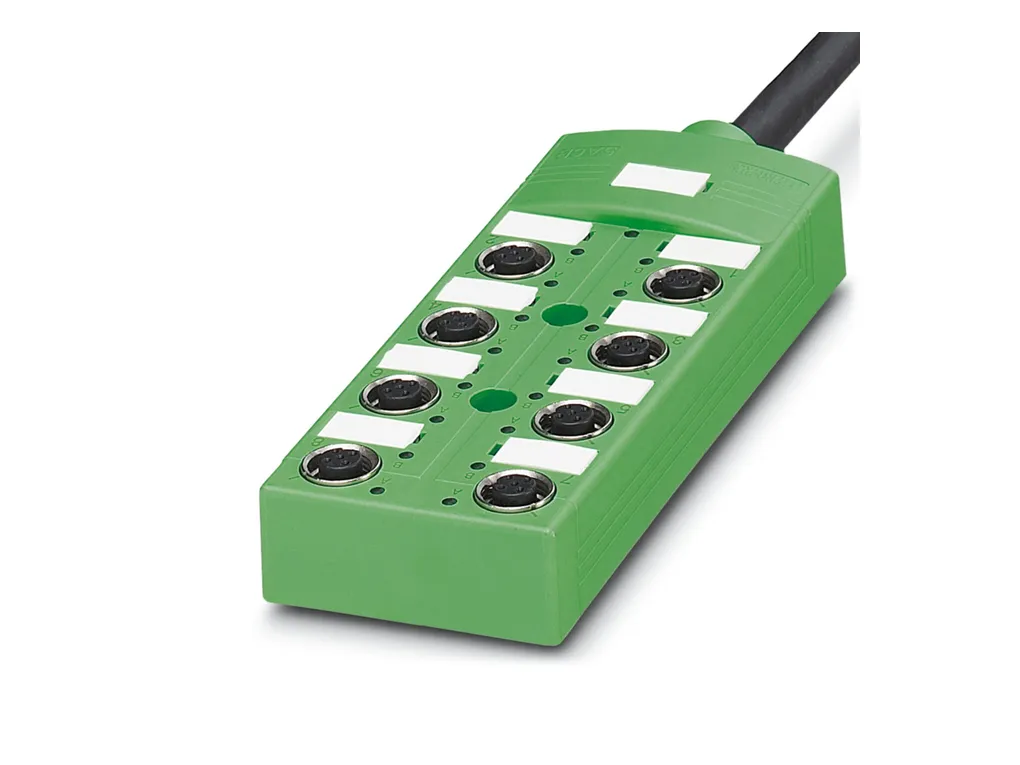

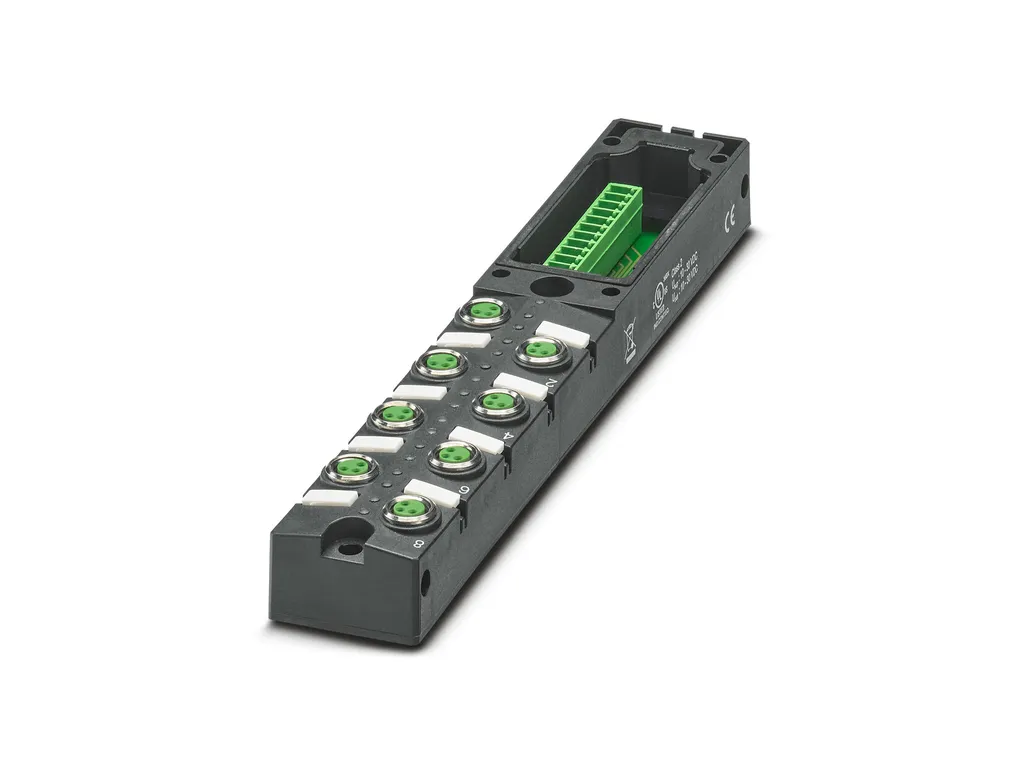

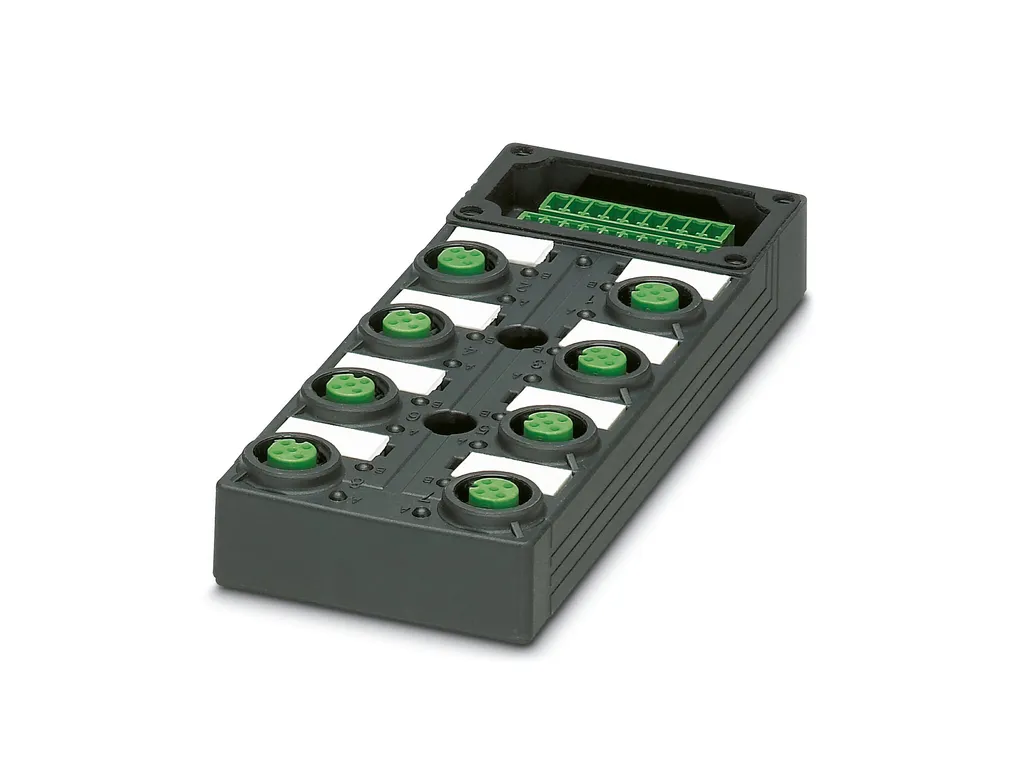

SACB- 8/3-L-C-M8 HD GG - Sensor/actuator box header

Sensor/actuator box header, application: Standard, connection method: M8 socket Metal, number of slots: 8, number of positions: 3, coding: A, slot assignment: single, status display: Yes, pnp; master cable connection: Plug-in master cable connection, shielding: no

Product Code: 1197612

Partner cod.: 1197612

PHOENIX CONTACT

Notes	General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories".
Product properties	Product type: Header with metric measurement slots Number of positions: 3 Application: Standard Number of slots: 8 Coding: A LED: yes
System properties	Local diagnostics Monitored function: Supply voltage Optical representation: Green LED
Electrical properties	Max. operating voltage U_max: 30 VDC Local diagnostics: Supply voltage Green LED Status display I/O Yellow LED Nominal voltage U_N: 24 VDC Rated current, total: 8 A Max. current carrying capacity per path: 2 A Current carrying capacity per slot: 2 A
Signaling	Status display present: Yes

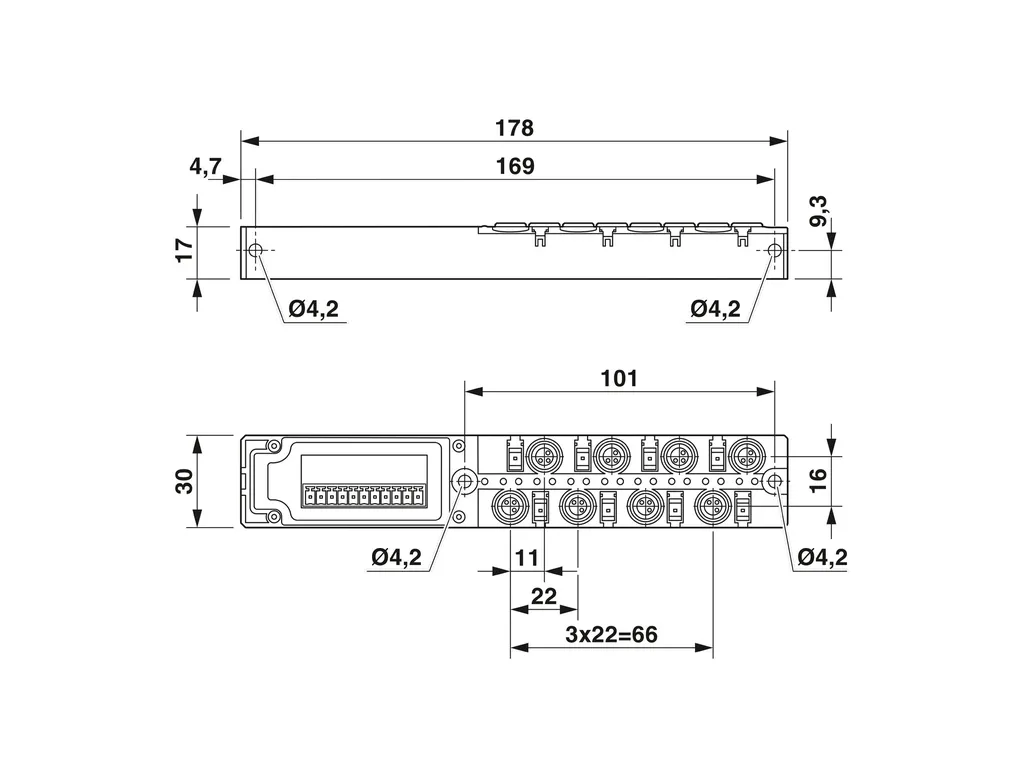

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f5ae8090586ce245b08bb1e33dc338bd/-S204x204-FJPG Width: 30 mm Height: 17 mm Length: 178 mm
Material specifications	Material: Cu alloy PBT PUR Seal material O-ring: FKM Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: PBT Material of contact, master cable side: CU alloy Material of the contact carrier on the master cable side: PA Material of contact surface, master cable side: tin-plated
Cable/line	Sensor/actuator connection system: M8 socket Connection method: Plug-in master cable connection Tightening torque, cover screw: 1 Nm Tightening torque of mounting screw for fixing the housing: 0.8 Nm
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 80°C
Standards and regulations	Standard designation: M8 connector Standards/specifications: IEC 61076-2-104
