SACB-C-H180- 8/3- 5,0PUR-M8 HD - Connector hood

Connector hood, application: Sensor/actuator box, connection method: M8 socket Metal, number of slots: 8, number of positions: 3, slot assignment: single, status display: No, Universal; master cable connection: Pluggable screw connection 180°, PUR/PVC, cable length: 5 m, shielding: no

Product Code: 1197628

Partner cod.: 1197628

PHOENIX CONTACT

Notes	General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties.
Product properties	Product type: Connector hood Number of positions: 3 Application: Sensor/actuator box Number of slots: 8
Electrical properties	Max. operating voltage U_max: 30 VDC Nominal voltage U_N: 24 VDC Rated current, total: 8 A Max. current carrying capacity per path: 2 A Current carrying capacity per slot: 2 A
Signaling	Status display present: No

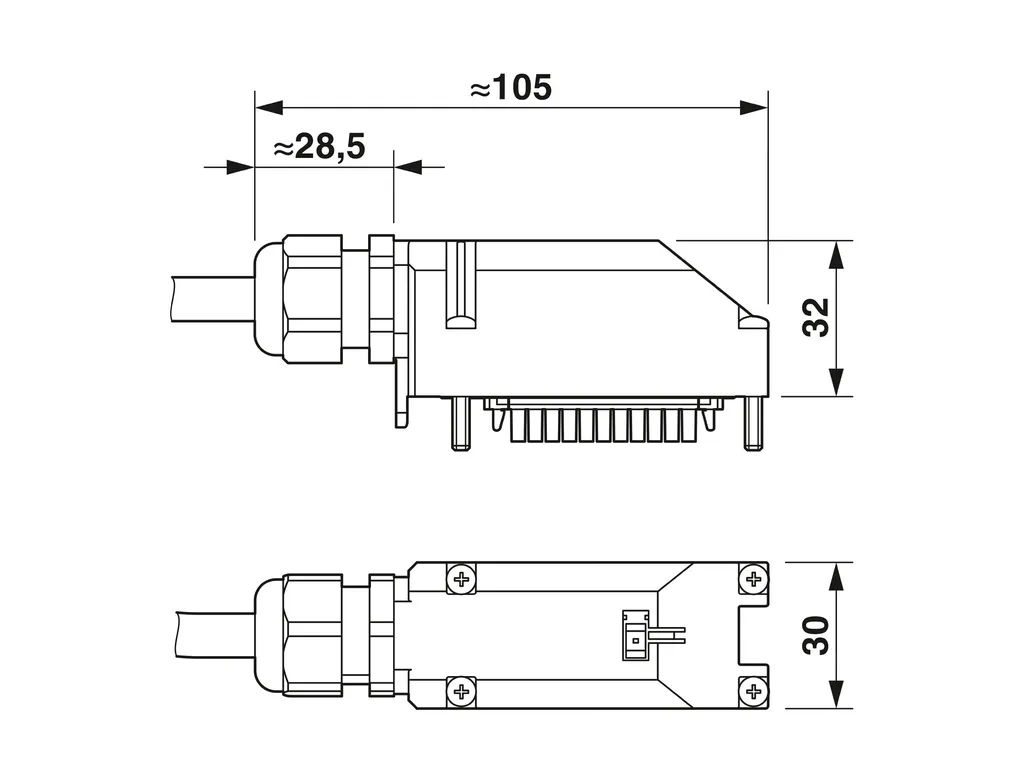

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e3d4db7d89e2544ab5b467a389291f2a/-S204x204-FJPG Width: 30 mm Height: 32 mm Length: 105 mm
Material specifications	Material: PBT PA 6 Seal material: CR/NBR Material of contact, master cable side: CU alloy Material of the contact carrier on the master cable side: PA Material of contact surface, master cable side: tin-plated
Cable/line	Cable length: 5 m PUR/PVC black[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/0877da060ae0cc4eaecb0cdad9b6833e/-S204x204-FJPG Cable weight: 92 kg/km UL AWM Style: 20549 Number of positions: 10 Shielded: no Cable type: PUR/PVC black[PUR] Conductor structure signal line: 19x 0.15 mm AWG signal line: 22 Conductor cross section: 8x 0.34 mm² (Signal line) 2x 0.75 mm² (power line) Wire diameter incl. insulation: 1.3 mm ±0.1mm (Signal line) 1.8 mm ±0.1mm (power line) External cable diameter: 7.9 mm ±0.2mm Outer sheath, material: PUR External sheath, color: black RAL9005 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: brown, blue, white, green, yellow, gray, pink, red, black, violet Inner sheath thickness: Ã¢¥ 0.15 mm Thickness, outer sheath: Ã¢¥ 0.38 mm Overall twist: Wires twisted in layers Nominal voltage, cable: 300 V Test voltage: 2000 V Minimum bending radius, fixed installation: 7.5 x D Minimum bending radius, flexible installation: 10 x D Max. bending cycles: 1500000 Flame resistance: DINEN50265 Resistance to oil: according to VDE 0472 Part 803 Other resistance: Highly resistant to acids, alkaline solutions and solvents Special properties: Silicone-free Ambient temperature (operation): -40°C ... 90°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation) 80°C (in acc. with UL)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 80°C
