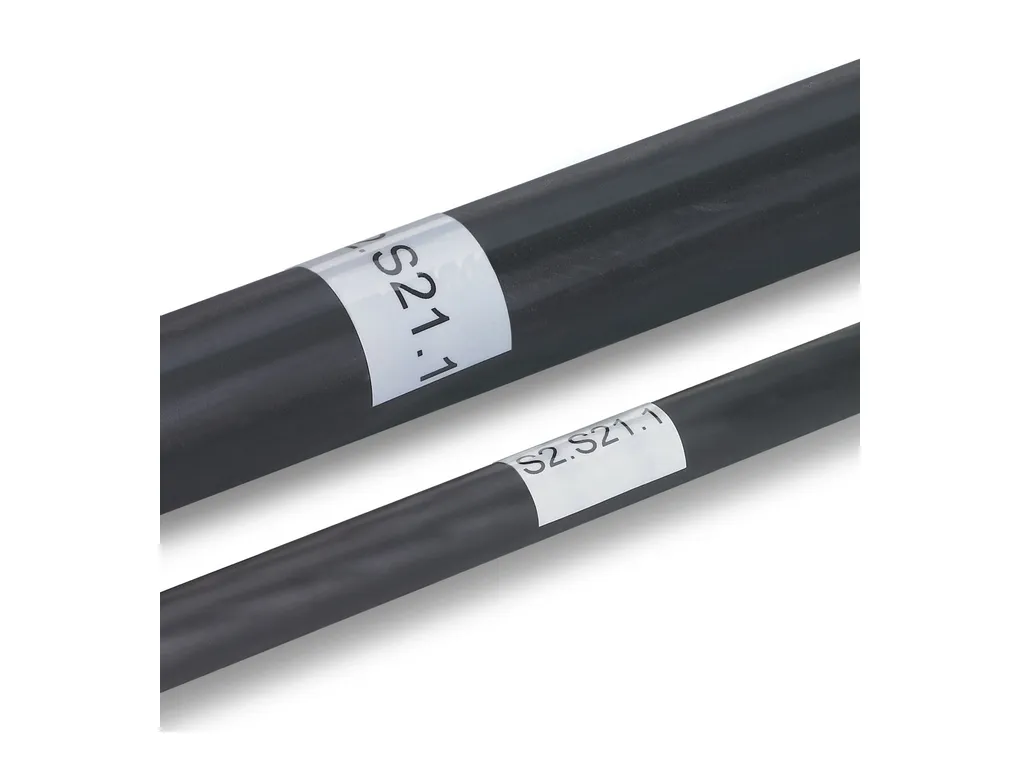

E-WML 5 (25X10)R YE - Wire-wrap label

Wire-wrap label, Roll, yellow, unlabeled, can be labeled with: THERMOMARK E.WRAP, THERMOMARK E.300 (D)/600 (D), mounting type: adhesive, cable diameter range: 3.2 ... 5.1 mm, Number of individual labels: 5800, text field height: 9.5 mm, text field width: 25.4 mm

Product Code: 1199661 Copia - Copy

Partner cod.: 1199661 Copia - Copy

PHOENIX CONTACT

Product properties	Product type: Conductor marking Type: Label Data management status Article revision: 03 Marking Number of individual labels: 5800 Number of individual labels per row: 1 Identification technology: Thermal transfer for rolls
Dimensions	Width: 25.4 mm Text field width: 25.40 mm Text field height: 9.50 mm Length: 25.4 mm
Material specifications	RoHS compliant: yes Adhesive: Acrylic Color: yellow (RAL 1018) Material: PVC Components: Silicone-free
Cable/line	External cable diameter: 5.10 mm 3.2 mm ... 5.1 mm
Environmental and real-life conditions	Scratch test for the determining scratch resistance Specification: DIN EN ISO 1518-1:2019-10 (following) Requirements: Ã¢Ã¢°¥ 5 N Result: Test passed Tesafilm test Specification: DIN EN ISO 2409:2013 (following) Result: Test passed UV resistance Specification: ISO 4892-2:2013-03 (following) IEC 60068-2-2:2007-07 Result: Test passed Test duration: 96 h Duration: 96 h Temperature for testing: 100 °C Temperature resistance Specification: ANSI/UL 969-2018:03 (following) Test duration: 240 h Rating 100 °C (121 °C): Test passed Wipe resistance of inscriptions Specification: DIN EN 61010-1 (VDE 0411-01):2020-03 DIN EN 62208 (VDE 0660-511):2012-06 (in parts) ISO 175:2010 (following) Isopropyl [CAS No. 67-63-0]: Test passed n-Hexane [CAS No. 110-54-3]: Test passed Water + Petroleum ether [CAS No. 64742-82-1]: Test passed Sodium hydroxide 0.1 mol/l [CAS No. 1310-73-2]: Test passed Ethanol (99 %) [CAS No. 64-17-5]: Test passed Acetone (99 %) [CAS No. 67-64-1]: Test passed Test duration: 168 h Diesel [CAS No. 68476-34-6]: Test passed IRM 901: Test passed IRM 902: Test passed Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DIN 50018:2013-05 Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Salt spray test Specification: DIN EN 60068-2-11:2000-02 Result: Test passed Test duration: 96 h Ambient conditions Ambient temperature (operation): -40 °C ... 80 °C Ambient temperature (assembly): + 15 °C ... 35 °C Recommended ambient temperature (storage/transport): 20 °C ... 25 °C Recommended humidity (storage/transport): 40 % ... 50 % Shelf life: 2 years
Standards and regulations	Wipe resistance: DIN EN 61010-1 (VDE 0411-1)
Mounting	Mounting type: adhesive
